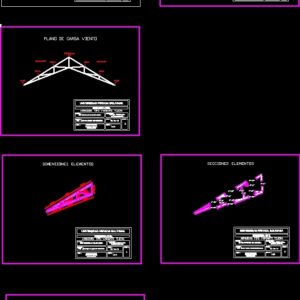

Design of a wooden structure Scissor

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

sections elements, civil Engineering, omar perez h. kattia roque m. david ticona a., ing. Juan Carlos Mendizabal, wood structures, armor type variant scissors, Bolivian private university, teacher, univ., matter, light m height m wood group, date, scale, designation, sheet, annotations plane, loading plane, References: carva viva weight cover weight decking weight crossbeam own weight, reference: ceiling, wind load plane, dimensions elements, sections elements, disposition plates, civil Engineering, cristian butron marcelo pereira helen roque, ing. Juan Carlos Mendizabal, wood structures, armor type variant scissors, Bolivian private university, teacher, univ., matter, light m height m wood group, date, scale, designation, sheet, civil Engineering, ing. Juan Carlos Mendizabal, wood structures, armor type variant scissors, Bolivian private university, teacher, univ., matter, date, scale, designation, sheet, civil Engineering, ing. Juan Carlos Mendizabal, wood structures, armor type variant scissors, Bolivian private university, teacher, univ., matter, date, scale, designation, sheet, civil Engineering, ing. Juan Carlos Mendizabal, wood structures, armor type variant scissors, Bolivian private university, teacher, univ., matter, date, scale, designation, sheet, civil Engineering, ing. Juan Carlos Mendizabal, wood structures, armor type variant scissors, Bolivian private university, teacher, univ., matter, date, scale, designation, sheet, civil Engineering, ing. Juan Carlos Mendizabal, wood structures, armor type variant scissors, Bolivian private university, teacher, univ., matter, date, scale, designation, sheet, windward, leeward, light m height m wood group, cristian butron marcelo pereira helen roque, light m height m wood group, cristian butron marcelo pereira helen roque, light m height m wood group, cristian butron marcelo pereira helen roque, light m height m wood group, cristian butron marcelo pereira helen roque

Raw text data extracted from CAD file:

6"x8" 6"x 6" 6"x8" 6"x 6" 3"x6" 3"x6" 6"x8" 3"x6" 3"x6" 3"x6" 6"x 6" 3"x6" 6"x8" 4"x6" 6"x 6" 3"x6" 4"x6" 3"x6" SECCIONES ELEMENTOS INGENIERIA CIVIL OMAR PEREZ H. KATTIA ROQUE M. DAVID TICONA A. ING. JUAN CARLOS MENDIZABAL ESTRUCTURAS DE MADERA ARMADURA TIPO VARIANTE TIJERA UNIVERSIDAD PRIVADA BOLIVIANA DOCENTE : UNIV. : MATERIA : LUZ 16 m. ALTURA 4 m. MADERA GRUPO A FECHA : ESCALA : 1:100 30/06/08 DESIGNACION : LAMINA : 1/1 A B C D E J H K F I G A' B' C' D' E' F' G' J' H' K' \A1;3.516 \A1;3.219 \A1;3.219 \A1;5.500 \A1;3.000 \A1;3.000 \A1;3.219 \A1;3.219 \A1;2.000 \A1;1.333 \A1;0.666 \A1;18.000 \A1;3.516 \A1;3.516 \A1;3.516 \A1;3.516 \A1;3.516 \A1;3.219 \A1;3.219 \A1;3.000 \A1;3.000 \A1;3.000 \A1;3.000 \A1;3.516 \A1;3.620 \A1;1.319 \A1;0.218 \A1;1.541 \A1;1.984 \A1;0.860 \A1;3.483 \A1;3.219 \A1;3.219 \A1;3.219 PLANO DE ACOTACIONES PLANO DE CARGA MUERTA-VIVA Referencias: Carva viva Peso cubierta Peso entablado Peso larguero Peso propio Referencia: Cielo raso PLANO DE CARGA VIENTO DIMENSIONES ELEMENTOS SECCIONES ELEMENTOS DISPOSICION PLACAS INGENIERIA CIVIL CRISTIAN BUTRON MARCELO PEREIRA HELEN ROQUE ING. JUAN CARLOS MENDIZABAL ESTRUCTURAS DE MADERA ARMADURA TIPO VARIANTE TIJERA UNIVERSIDAD PRIVADA BOLIVIANA DOCENTE : UNIV. : MATERIA : LUZ 18 m. ALTURA 5.5 m. MADERA GRUPO A FECHA : ESCALA : 1:100 30/06/10 DESIGNACION : LAMINA : 1 INGENIERIA CIVIL ING. JUAN CARLOS MENDIZABAL ESTRUCTURAS DE MADERA ARMADURA TIPO VARIANTE TIJERA UNIVERSIDAD PRIVADA BOLIVIANA DOCENTE : UNIV. : MATERIA : FECHA : ESCALA : 1:100 DESIGNACION : LAMINA : 2 INGENIERIA CIVIL ING. JUAN CARLOS MENDIZABAL ESTRUCTURAS DE MADERA ARMADURA TIPO VARIANTE TIJERA UNIVERSIDAD PRIVADA BOLIVIANA DOCENTE : UNIV. : MATERIA : FECHA : ESCALA : 1:100 DESIGNACION : LAMINA : 3 INGENIERIA CIVIL ING. JUAN CARLOS MENDIZABAL ESTRUCTURAS DE MADERA ARMADURA TIPO VARIANTE TIJERA UNIVERSIDAD PRIVADA BOLIVIANA DOCENTE : UNIV. : MATERIA : FECHA : ESCALA : 1:100 DESIGNACION : LAMINA : 4 INGENIERIA CIVIL ING. JUAN CARLOS MENDIZABAL ESTRUCTURAS DE MADERA ARMADURA TIPO VARIANTE TIJERA UNIVERSIDAD PRIVADA BOLIVIANA DOCENTE : UNIV. : MATERIA : FECHA : ESCALA : 1:100 DESIGNACION : LAMINA : 5 INGENIERIA CIVIL ING. JUAN CARLOS MENDIZABAL ESTRUCTURAS DE MADERA ARMADURA TIPO VARIANTE TIJERA UNIVERSIDAD PRIVADA BOLIVIANA DOCENTE : UNIV. : MATERIA : FECHA : ESCALA : 1:100 DESIGNACION : LAMINA : 6/6 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 369.18 369.18 369.18 369.18 184.59 369.18 184.59 632.88 63.288 174.042 110.88 108 1265.76 126.576 348.084 110.88 216 1265.76 126.576 348.084 110.88 216 1265.76 126.576 348.084 221.76 216 1265.76 126.576 348.084 110.88 216 1265.76 126.576 348.084 110.88 216 632.88 63.288 174.042 110.88 108 BARLOVENTO SOTAVENTO 403.64 403.64 201.82 201.82 14.382 14.382 28.764 28.764 5 5 5 5 5 5 5 5 5 5 5 6"x10" 6"x10" 6"x10" 6"x10" 6"x10" 6"x10" 3"x6" 4"x6" 4"x6" 4"x6" 4"x6" 4"x6" 4"x6" 4"x6" 3"x6" LUZ 18 m. ALTURA 5.5 m. MADERA GRUPO A CRISTIAN BUTRON MARCELO PEREIRA HELEN ROQUE 30/06/10 LUZ 18 m. ALTURA 5.5 m. MADERA GRUPO A CRISTIAN BUTRON MARCELO PEREIRA HELEN ROQUE 30/06/10 LUZ 18 m. ALTURA 5.5 m. MADERA GRUPO A CRISTIAN BUTRON MARCELO PEREIRA HELEN ROQUE 30/06/10 LUZ 18 m. ALTURA 5.5 m. MADERA GRUPO A CRISTIAN BUTRON MARCELO PEREIRA HELEN ROQUE 30/06/10
