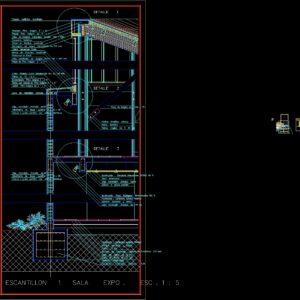

Constructive section exhibitions room – Wooden structure – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

detail plump beams esc, scantillon room expo esc, Aztec rustic pottery pavement, sand cement mortar, radier cm, moisture barrier polyethylene sheet mm, cm sand layer, cm gravel layer, compacted terrain, reinforced concrete foundation, Aztec rustic pottery pavement, sand cement mortar, reinforced concrete slab cm, gewiss adjustable dichroic lighting, american sky, Beam hoemigón armed curve, stucco grain lost, addressable halogen spotlight, metallic bolt, plump coigüe de cm, metal inner plate, Coigüe piece of, piece of pine, lining iron galvanized steel smooth mm, Felt, encamised pine insigne, table with recess in pino insigne, pine ribbon, laminated beam in coigüe curve mm, premarco in raulí, reinforced concrete slab cm, triple tempered glass, anodized aluminum frame, beam in laminated wood coigüe, metallic bracket, hearth in laminated wood, steel drop cutter in galvanized steel, gravel asphalt, overlap pine oregon, pine pieces of, brick rope masonry, Lost grain stucco with water-repellent additive, curved reinforced concrete beam, Lost grain stucco with water-repellent additive, brick rope masonry, curved reinforced concrete beam, detail, Slab fixation slab machon, encounter detail, expo room

Raw text data extracted from CAD file:

DETALLE ROLLIZO --- VIGAS ESC 1 : 2 ESCANTILLON 1 SALA EXPO . ESC . 1 : 5 Pavimento : Cerámica Azteca Rústica Mortero cemento y arena Radier 10 cm Barrera de Humedad : Lámina de Polietileno 0.3 mm Capa de Arena de 10 cm Capa de Ripio de 20 cm Terreno Compactado Fundación Hormigón Armado S/C Pavimento : Cerámica Azteca Rústica Mortero cemento y arena Losa Hormigón Armado de 15 cm Iluminación : Dicroicos Orientables GEWISS 40 W Cielo Americano Viga Hoemigón Armado Curva Estuco a grano perdido Iluminación : Foco Halógeno Direccionable 150 W Perno Metálico Rollizo Coigüe de 0 30 cm Pletina Metálica Interior Pieza de Coigüe de 150 / 75 Pieza de Pino Insigne 2 ' x 4 ' Forro Plancha Acero Galvanizado liso de 0.5 mm Fieltro de 12 l b s . Encamizado Pino Insigne 1 ' x 4 ' Tabla con rebaje en Pino Insigne 2 ' x 5 ' Listón Pino Insigne de 2 ' x 2 ' VIGA Laminada en Coigüe curva 80 x 200 mm Premarco en Raulí Losa de Hormigón Armado de 10 cm Vidrio Templado Triple Marco de Aluminio Anodizado VIGA en Madera Laminada Coigüe 100 / 350 Escuadra Metálica Solera en Madera Laminada Cortagota en Acero Galvanizado de 0.5 mm Tejuela Asfáltica Gravillada Traslapo Pino Oregón 1 ' x 6 ' Piezas Pino Insigne de 2 ' x 4 ' Albañilería de Soga : Ladrillo 7 x 14 x 30 Estuco a grano perdido con aditivo hidrófugo Viga Hormigón Armado curva Estuco a grano perdido con aditivo hidrófugo Albañilería de Soga : Ladrillo 7 x 14 x 30 Viga Hormigón Armado curva DETALLE 1 DETALLE 2 DETALLE 3 FIJACION ROLLIZO LOSA Y MACHON DETALLE ENCUENTRO VIGAS-ROLLIZO SALA EXPO SALA EXPO

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Glass, Masonry, Steel, Wood
