Zapata Masonry DWG Block for AutoCAD

Zapata Masonry DWG Block for AutoCAD

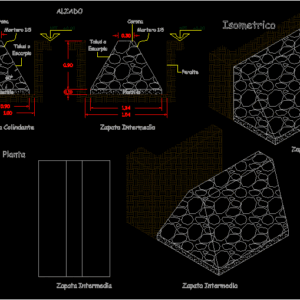

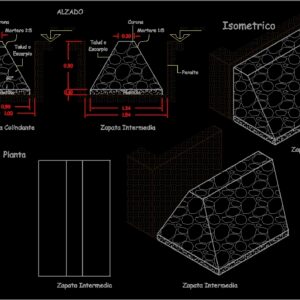

The map describes the standard measures of central and adjacent shoes of masonry to a residence.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Npt, raised, crown, Batter, Escarpment, camber, mortar, template, crown, mortar, Batter, Escarpment, camber, template, Isometric, Adjoining shoe, Intermediate shoe, Adjoining shoe, Intermediate shoe, Adjoining shoe, plant

Raw text data extracted from CAD file:

\A1;0.90 \A1;0.10 \A1;0.38 \A1;0.90 \A1;1.00 \A1;60° \A1;0.30 \A1;1.34 \A1;1.54 \A1;0.90 \A1;0.10 5 5 5 5 5 5 5 5 5 5 NPT +0.00 NPT +0.00 ALZADO Corona Talud o Escarpio Peralte Mortero 1:5 Plantilla Corona Mortero 1:5 Talud o Escarpio Peralte Plantilla 5 Isometrico Zapata Colindante Zapata Intermedia Zapata Colindante Zapata Intermedia Zapata Intermedia Zapata Colindante Planta

Language	Spanish
Drawing Type	Block
Category	Drawing with Autocad
Additional Screenshots
File Type	dwg
Materials	Masonry
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	adjacent, autocad, block, central, describes, DWG, map, masonry, Measures, residence, shoes, standard, zapata
