4HP Industrial Ribbon Mixer Assembly Drawing with Gearmotor Drive

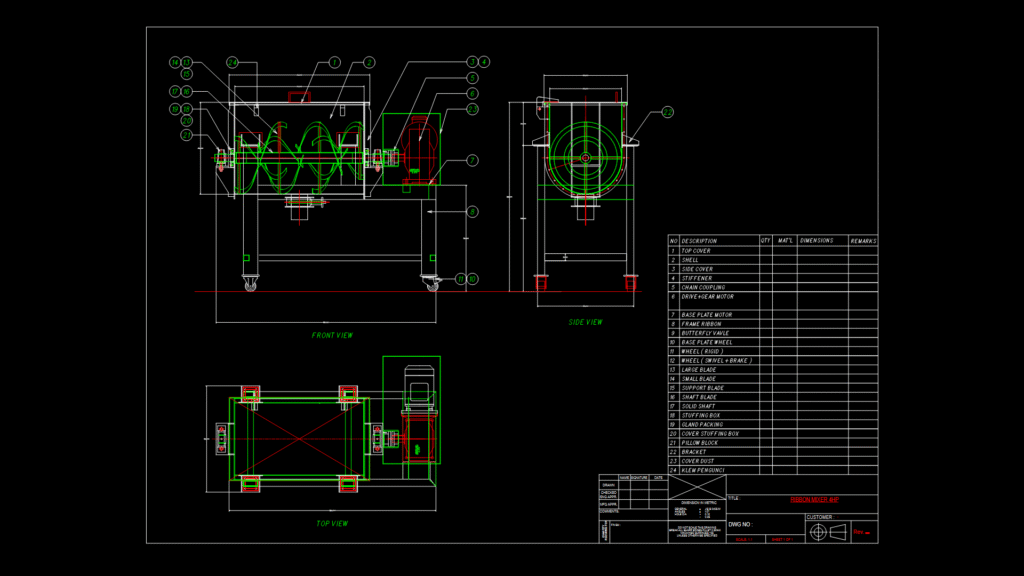

This technical drawing illustrates a 4HP ribbon mixer assembly designed for industrial mixing applications. The drawing presents front, side, and top views of the complete unit, which weighs approximately 29kg. The mixer features a horizontal cylindrical shell with internal ribbon blades (both large and small) mounted on a solid shaft. The drive system utilizes a 4HP Chenta motor (type BSM 120) with a 1:30 gear ratio, connected via chain coupling. The assembly includes key components such as a stuffing box with gland packing for shaft sealing, UCP210 pillow block bearings for shaft support, and a butterfly valve for discharge. The unit is mounted on a frame with four wheels (including swivel wheels with brakes) for mobility, with overall dimensions of approximately 1530mm length, 740mm width, and 980mm height. The mixer shell incorporates a top cover, side covers, and stiffeners for structural integrity. This configuration is typically used in food processing, chemical mixing, or pharmaceutical applications where uniform blending of dry or semi-dry materials is required.
