Accommodation, Lodging Hotel, Lodge with Car Parking Lot 2D DWG Plan for AutoCAD

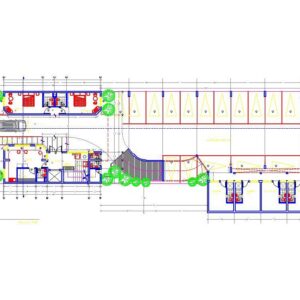

Plan, elevation and cross section view of lodging hotel. Plan has ground plus two floors. Ground floor has following areas – reception, pedestrian entrance, vehicle entrance, car parking lot (capacity 16 cars), 5 furnished bed rooms, male staff room, warehouse, maintenance room and toilets. First floor has following areas – 14 furnished bed rooms, elevator, car parking lot (capacity 13cars) and toilets. Second floor has following areas – laundry, wine shop, 13 furnished bed rooms and toilets. Total foot print area of the plan is approximately 840 sq meters.
| Language | Spanish |
| Drawing Type | Plan |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood |
| Measurement Units | Metric |
| Footprint Area | 500 - 999 m² (5382.0 - 10753.1 ft²) |
| Building Features | A/C, Elevator, Car Parking Lot |
| Tags | 2d, accommodation, autocad, cross section, DWG, elevation, Hotel, lodge, Lodging Hotel, plan |
