Anchorage Of Pipes DWG Detail for AutoCAD

Anchorage Of Pipes DWG Detail for AutoCAD

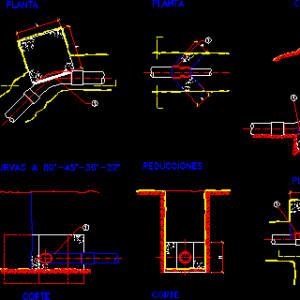

Concrete anchorage with formulate of acceptable tension of the land – Details of curves in 90º,60º,45º,30º and 22º

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Curves, cut, Curves, plant, cut, Reductions, plant, cut, Branches, Sloping slopes, plant, cut, Saturated asphalt felt for caneria protection, Iron sheets for mooring abalone coated, With anticorrosive, Since it supports the effort of the curve directed towards, It must be verified that the pressure transmitted by the, The lower the permissible terrain tension:, Since it supports the thrust produced by the, change of address. Only the weight of the, Block the mass of earth it may have on it., P: stress in the curve, A: area of the die base, Adm.

Raw text data extracted from CAD file:

H L A L A H A A L A H 11.80089111309476 1 1 9.71564058391104 9.71564058391104 1 9.578130044342558 9.578130044342558 CURVAS A 90° CORTE CORTE CURVAS A 60°-45°-30°-22° PLANTA PLANTA CORTE 1 0.0 REDUCCIONES 1 0.4404809962499172 0.4404809962499172 PLANTA CORTE 2 1 4 3 1 1 0.0 0.0 -2.296955855116053 RAMALES "TE" CANERIAS EN PENDIENTE PLANTA CORTE FIELTRO ASFALTICO SATURADOPARA PROTECCION DE LA CANERIA PLANCHUELAS HIERRO PARA AMARRE ABULONADAS RECUBIERTAS CON ANTICORROSIVO Y "ASFASOL". DADO QUE SOPORTA EL ESFUERZO DE LA CURVA DIRIGIDO HACIA ABAJO, DEBE VERIFICARSE QUE LA PRESION QUE TRANSMITE EL MISMO, SEA MENOR A LA TENSION ADMISIBLE DEL TERRENO: DADO H° QUE SOPORTA EL EMPUJE QUE PRODUCE EL CAMBIO DE DIRECCION. SOLO ACTUA EL PESO PROPIO DEL BLOQUE Y LA MASA DE TIERRA QUE PUDIERA TENER SOBRE EL MISMO. 1 2 3 4 P A P:esfuerzo en la curva A:area de la base del dado < adm.

Language	Spanish
Drawing Type	Detail
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	anchorage, autocad, concrete, curves, DETAIL, details, distribution, DWG, fornecimento de água, kläranlage, l'approvisionnement en eau, land, pipes, supply, tension, treatment plant, wasserversorgung, water
