Auditorium DWG Block for AutoCAD

Auditorium DWG Block for AutoCAD

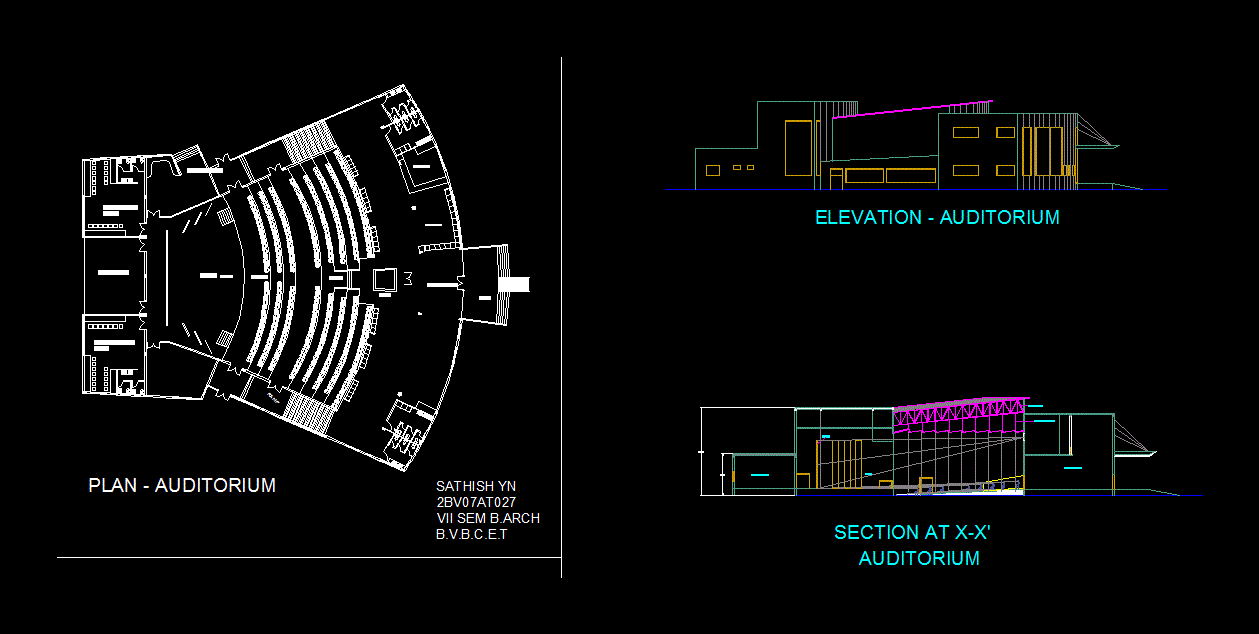

Auditorium – planta – cortes

Drawing labels, details, and other text information extracted from the CAD file:

stair, section at x-x’, stage, rehearsal room, steel struss, aluminium hangers, entrance foyer, screen, auditorium, elevation – auditorium, ramp, sathish yn, vii sem b.arch, b.v.b.c.e.t, vip entrance, womens green, room, gents green, back stage, snack counter, waiting lounge, plan – auditorium

Raw text data extracted from CAD file:

\A1;6.0000 \A1;12.7500 STAIR SECTION AT X-X' STAGE REHEARSAL ROOM STEEL STRUSS ALUMINIUM HANGERS ENTRANCE FOYER SCREEN AUDITORIUM 5 5 ELEVATION - AUDITORIUM ramp lvl - 0.15m lvl 0.3m lvl 0.45m lvl 0.9m lvl 0.9m SATHISH YN 2BV07AT027 VII SEM B.ARCH B.V.B.C.E.T VIP ENTRANCE WOMENS GREEN ROOM GENTS GREEN ROOM BACK STAGE STAGE SNACK COUNTER WAITING LOUNGE ENTRANCE FOYER PLAN - AUDITORIUM

Language	English
Drawing Type	Block
Category	Entertainment, Leisure & Sports
Additional Screenshots
File Type	dwg
Materials	Steel, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	Auditorium, autocad, block, cinema, cortes, DWG, planta, Theater, theatre
