Automatic Transfer Switch DWG Block for AutoCAD

Automatic Transfer Switch DWG Block for AutoCAD

Automatic transfer switch

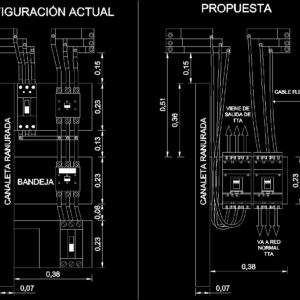

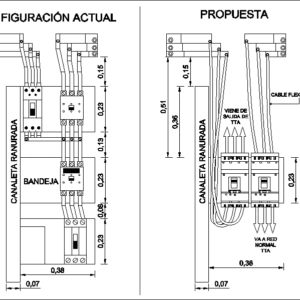

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

tray, current configuration, slotted groove, proposal, comes from tta output, go normal network tta, flexible cable, slotted groove

Raw text data extracted from CAD file:

0,38 0,07 0,23 0,08 0,23 0,13 0,23 0,15 0,15 0,07 0,23 0,51 0,38 0,36 5 5 5 5 5 5 5 5 BANDEJA CONFIGURACIÓN ACTUAL CANALETA RANURADA PROPUESTA \W2.21563; VIENE DE \W1.14089; SALIDA DE \W1.14089; TTA \W2.21434; VA A RED \W2.21434; NORMAL \W2.21434; TTA \W0.74498; CABLE FLEXIBLE 2 x 4/0 1 5 5 5 5 5 CANALETA RANURADA 5

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
