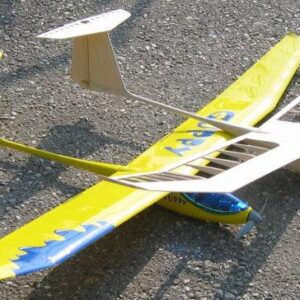

Avioneta Guppy DWG Plan for AutoCAD
Name: Guppy Dimension: Mini Engine: Electric Model type: Sport Control: RC Format: DXF* instructions Wing span cm.: 150 Length cm.: 80 Planos y Pdf con instrucciones de armado

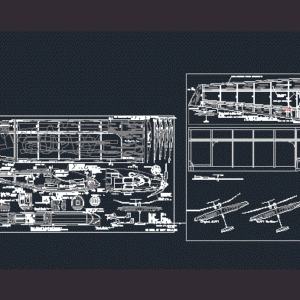

Drawing labels, details, and other text information extracted from the CAD file:
sanded before, you cover the wing, pushrod vor elevator, hole in rib, to get the favorable wing twist., foldable prop, elecrtic motor, or similar class, esc, reciever, c.g., servo is taped to fuselage side, using both side adhesive tape, or, inserted in shrinkable plastic and glued., shaped with shaving and, sanding of balsa., nose lead, weigth, carbon tube, rudder horn, elevator horn, wing span:, wing area, wing ar:, length :, take off mass:, wing loading:, horizontal stab saddle, sanded, to wedge, rudder, slit opening in carbon, tube, for exit of pushrods, servos, reciever accu pack, aerial, reciever aerial glued to, fuselage with, self adhesive tape, triangular corner filling, balsa cap, glued in, place after, balancing the, glider., triangular corner, forward wing, attachment former, rear attachment, of the wing, cut the bolt to proper length, aerial exit,, transparent, plastic canopy,, made from pet bottle, front attachment, point for wing, plastic bolt, down, high start hook,, threaded, steel wire, accu pack, le before, sanding, le after the, sanding in, airfoil shape, making of the canopy:, put it tightly in the pet bottle and dip it, into boiling water for a minute. pet will, pure glider version, electric version, wing twist on, level, servos are, staggered, not to interfere, solid balsa, section n n, all wing ribs made from balsa., layout of right tapered part of wing, section l l, section k k, section j j, section ae, section m m, view o, section g-g, section f f, section c c, section b b, section a a, section d d, section h h, wing dihedrall, wing attachment at le, wing attachment at te, vertical tail members, rc model of guppy sailplane, designed by : angel saenz s., zgoraj in spodaj, rear spar assembly:, on the upper and lower end of the ribs, recomended dihedrall, tip, solid balsa, sheeting is, wing spar caps, are very hard balsa,, or better from spruce, shear web from, vertical grain balsa, installed between, all ribs., cross section of, te up to airfoil section., nose, solid balsa, tapered toward the tip, with triangular pieces of balsa, as ribs., krmilna ro, ali pertinaksa,, aileron section, utor za krmilno ro, rear spar cross section, aileron cross section., solid balsa filler, for filling the gap between, wing and wing saddle., glued on wing, or preferably on wing saddle, smoth transition, to fuselage, from solid balsa, protech, design by: angel saenz s., original guppy
Raw text data extracted from CAD file:
| Language | English |
| Drawing Type | Plan |
| Category | Vehicles |
| Additional Screenshots |
    |
| File Type | dwg |
| Materials | Glass, Plastic, Steel, Wood, Other |
| Measurement Units | Metric |
| Footprint Area | |
| Building Features | Elevator |
| Tags | aircraft, airplane, autocad, DWG, instructions, model, plan, Transportation |
