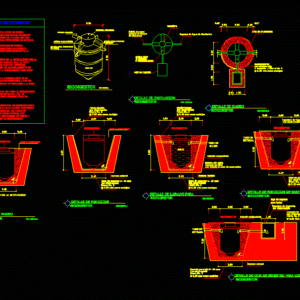

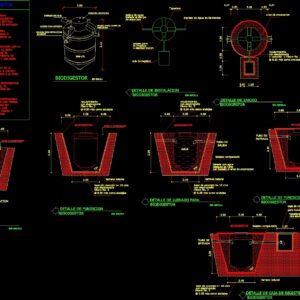

Detail of installation of a digester system or pit prefabricated

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Hermetic lid, Exit to field of, Extraction valve, Water inlet, Of sludge, Access for cleaning, plant, unscaled, absorption, Lts., Biodigestor installation, Excavation must be prepared in, Cylindrical cm. Larger than the diameter, Cm. More than the height of the septic tank., Taking care that your incoming connections, At the bottom of the excavation should be, Place a firm flat concrete, Polishing that supports it evenly, The digester is placed in the excavation with the, Help of a polin a rope. this, In order to prevent the walls from being, To collapse, Earth at the bottom of the excavation one, In addition, the installation of the, Drain pipe to be inserted into the, Entrance blocks integrated exit the pit, The biodigestor is filled with water, Up to the elbow level, Verifying that there is no leakage of, Once inside the is recommended, To fill the walls of the excavation with earth, Healthy layered tepetate, Greater than cm. good with, The purpose of avoiding landslides, Probable fractures in the biodigester., Installation detail, unscaled, Biodigester, Water outlet, Sanitary water entrance, front, Treated to the field, Of absorption, Access for, Cleaning, Clearing, register machine, Excavation area, covering, With electromalla, Concrete iron no., Mts as anchorages, Depth of excavation, Excavation area, Biodigester, Excavation area, Biodigester, covering, With electromalla, Iron no., Mts as anchorages, Cms concrete base, With electromalla, Iron no., Mts as anchorages, natural terrain, Biodigester, covering, With electromalla, Iron no., Mts as anchorages, Cms concrete base, With electromalla, Iron no., Mts as anchorages, natural terrain, Water, tube of, entry, tube of, departure, Filled with water, Then full, With ballast the excavation area, Compacted ballast, Cms concrete base, With electromalla, Iron no., Mts as anchorages, natural terrain, tube of, departure, Compacted ballast, Concrete cms, With electromalla, Iron no., Mts as anchorages, Biodigester, tube of, entry, Cms concrete base, With electromalla, Iron no., Mts as anchorages, natural terrain, Compacted ballast, Concrete cms, With electromalla, Iron no., Mts as anchorages, Concrete cover, With electromalla, register machine, For sludge, Zanjeo detail, unscaled, Biodigester, Zanjeo detail, unscaled, Biodigester, Cast iron detail, unscaled, Biodigester, Filling detail for, unscaled, Biodigester, Detail of upper base casting, unscaled, Biodigester, Log box detail for sludge, unscaled, Biodigester, Concrete cover, With electromalla, Biodigester

Raw text data extracted from CAD file:

0.90 0.53 2.00 0.53 0.07 2.30 2.30 2.15 2.00 1.60 1.20 1.20 2.00 0.30 1.20 0.07 2.30 0.60 2.00 0.60 75º 2.40 0.60 2.00 0.60 75º 2.40 2.30 0.60 2.00 0.60 75º 2.40 0.60 2.00 0.60 75º 2.40 2.30 0.60 2.00 0.60 75º 2.40 2.15 2.00 TAPADERA HERMETICA SALIDA HACIA CAMPO DE VALVULA PARA EXTRACCION ENTRADA DE AGUA DE LODOS ACCESO PARA LIMPIEZA PLANTA SIN ESCALA ABSORCION 3000 LTS. INSTALACION BIODIGESTOR 1).- SE DEBE PREPARAR UNA EXCAVACION EN FORMA CILINDRICA 20 cm. MAS GRANDE QUE EL DIAMETRO Y 10 cm. MAS QUE LA ALTURA DE LA FOSA SEPTICA. (Fig. 1) CUIDANDO QUE SUS CONEXIONES DE ENTRADA EN EL FONDO DE LA EXCAVACION SE DEBERA COLOCAR UN FIRME DE CONCRETO APLANADO O PULIDO QUE APOYE O SIENTE UNIFORMEMENTE LA 2).- SE COLOCARA EL BIODIGESTOR EN LA EXCAVACION CON LA AYUDA DE UN POLIN Y UNA CUERDA. (Fig. 2), ESTO CON EL OBJETO DE EVITAR QUE LOS MUROS SE DERRUMBEN Y PROBOQUEN UN ACUMULAMIENTO DE TIERRA EN EL FONDO DE LA EXCAVACION Y UNA INES- ADEMAS SE PROCEDERA A LA INSTALACION DE LA TUBERIA DEL DRENAJE QUE SE INSERTARA A LOS EM- PAQUES DE ENTRADA Y SALIDA INTEGRADOS A LA FOSA 3).- POSTERIORMENTE, SE LLENARA DE AGUA EL BIODIGESTOR HASTA EL NIVEL DEL CODO DE SALIDA (Fig. 3), VERIFICANDO QUE NO EXISTA NINGUNA FUGA DE 4).- UNA VEZ ADENTRO EL BIODIGESTOR, ES RECOMENDABLE RELLENAR LOS MUROS DE LA EXCAVACION CON TIERRA SANA TEPETATE DE PREFERENCIA, EN CAPAS NO MAYORES DE 20 cm. BIEN COMPACTADAS, CON LA FINALIDAD DE EVITAR DERRUMBES DE TIERRA Y PROBABLES FRACTURAS EN EL BIODIGESTOR. DETALLE DE INSTALACION SIN ESCALA BIODIGESTOR Salida de agua Ingreso de Agua de Sanitarios Tapadera tratada al campo de absorcion acceso para la limpieza o desobstruccion caja de registro area de excavacion 5 2.00 5 5 5 5 5 recubrimiento con electromalla + concreto y Hierro No. 3 @ 0.50 mts como anclajes 5 5 PROFUNDIDAD DE LA EXCAVACION Area a excavacion BIODIGESTOR 2.30 0.60 5 0.60 75º 2.40 Area a excavacion BIODIGESTOR 2.30 0.60 5 0.60 75º 2.40 2.30 0.60 5 0.60 75º 2.40 recubrimiento con electromalla Hierro No. 3 @ 0.50 mts como anclajes base de concreto t= 10 cms con electromalla Hierro No. 3 @ 0.50 mts como anclajes terreno natural BIODIGESTOR 2.30 0.60 5 0.60 75º 2.40 recubrimiento con electromalla Hierro No. 3 @ 0.50 mts como anclajes base de concreto t= 10 cms con electromalla Hierro No. 3 @ 0.50 mts como anclajes terreno natural AGUA TUBO DE ENTRADA TUBO DE SALIDA llenado con agua despues se llena con balasto el area de excavacion balasto compactado base de concreto t= 10 cms con electromalla Hierro No. 3 @ 0.50 mts como anclajes terreno natural TUBO DE SALIDA balasto compactado concreto t= 10 cms con electromalla Hierro No. 3 @ 0.50 mts como anclajes BIODIGESTOR 2.30 0.60 5 0.60 75º 2.40 TUBO DE ENTRADA base de concreto t= 10 cms con electromalla Hierro No. 3 @ 0.50 mts como anclajes terreno natural balasto compactado concreto t= 10 cms con electromalla Hierro No. 3 @ 0.50 mts como anclajes Tapadera de Concreto con electromalla 5 1.20 caja de registro para lodos DETALLE DE ZANJEO SIN ESCALA BIODIGESTOR DETALLE DE ZANJEO SIN ESCALA BIODIGESTOR DETALLE DE FUNDICION SIN ESCALA BIODIGESTOR DETALLE DE LLENADO PARA SIN ESCALA BIODIGESTOR DETALLE DE FUNDICION DE BASE SUPERIOR SIN ESCALA BIODIGESTOR DETALLE DE CAJA DE REGISTRO PARA LODOS SIN ESCALA BIODIGESTOR Tapadera de Concreto con electromalla BIODIGESTOR 5
