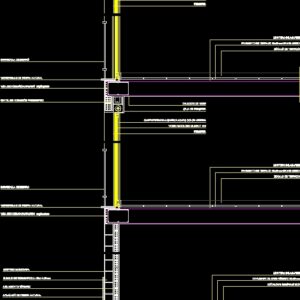

Building Facade Section DWG Section for AutoCAD

Building Facade Section DWG Section for AutoCAD

Construction details – foundation – roof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

crushed gravel layer, gripping mortar, rustic stoneware socket, waterproofing membrane, rustic stoneware pavement cm, Reinforced concrete wall according to plan, concrete slab: electrowelded mesh, compacted bowling, natural terrain, cleaning concrete, zapata run according to plan, gripping mortar, rustic stoneware pavement cm, rustic stoneware socket, natural stone cladding, waterproofing membrane, reinforced concrete beam according to plan, gripping mortar, terrazzo socket, medium grain terrazzo pavement, gripping mortar, terrazzo socket, medium grain terrazzo pavement, curved ceramic tile, gripping mortar, waterproofing sheet, projected polyurethane insulation, ceramic bard, monolayer mortar, thermo clay block cm, thermal isolation, iron handrail, blind box, wood carpentry lacquered wood color, colorless glass climalit, blind, gypsum plaster, iron handrail, blind box, wood carpentry lacquered wood color, colorless glass climalit, blind, gypsum plaster, natural stone flashing, reinforced concrete beam according to plan, natural stone flashing, prestressed concrete lintel, reinforced concrete beam according to plan, prestressed concrete lintel, monolayer mortar

Raw text data extracted from CAD file:

CAPA DE GRAVA MACHACADA e=3cm MORTERO DE AGARRE ZÓCALO DE GRES RÚSTICO MEMBRANA IMPERMEABILIZANTE PAVIMENTO DE GRES RÚSTICO 30x30 cm MURO DE HORMIGÓN ARMADO según plano SOLERA DE HORMIGÓN: MALLA ELECTROSOLDADA d6 10cm ENCACHADO DE BOLOS COMPACTADO e=20cm TERRENO NATURAL HORMIGÓN DE LIMPIEZA e=10cm ZAPATA CORRIDA según plano MORTERO DE AGARRE PAVIMENTO DE GRES RÚSTICO 30x30 cm ZÓCALO DE GRES RÚSTICO APLACADO DE PIEDRA NATURAL MEMBRANA IMPERMEABILIZANTE VIGA DE HORMIGÓN ARMADO según plano MORTERO DE AGARRE ZÓCALO DE TERRAZO PAVIMENTO DE TERRAZO 40x40 cm GRANO MEDIO MORTERO DE AGARRE ZÓCALO DE TERRAZO PAVIMENTO DE TERRAZO 40x40 cm GRANO MEDIO TEJA CERÁMICA CURVA MORTERO DE AGARRE LÁMINA IMPERMEABILIZANTE AISLAMIENTO DE POLIURETANO PROYECTADO e=4cm BARDO CERÁMICO MORTERO MONOCAPA BLOQUE DE TERMOARCILLA 30x14x19 cm AISLAMIENTO TÉRMICO BARANDILLA DE HIERRO CAJA DE PERSIANA CARPINTERIA DE ALUMINIO LACADO COLOR MADERA VIDRIO INCOLORO CLIMALIT 4+4 PERSIANA ENLUCIDO DE YESO BARANDILLA DE HIERRO CAJA DE PERSIANA CARPINTERIA DE ALUMINIO LACADO COLOR MADERA VIDRIO INCOLORO CLIMALIT 4+4 PERSIANA ENLUCIDO DE YESO VIERTEAGUAS DE PIEDRA NATURAL VIGA DE HORMIGÓN ARMADO según plano VIERTEAGUAS DE PIEDRA NATURAL DINTEL DE HORMIGÓN PRETENSADO VIGA DE HORMIGÓN ARMADO según plano DINTEL DE HORMIGÓN PRETENSADO MORTERO MONOCAPA

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, building, construction, construction details section, cut construction details, details, DWG, facade, FOUNDATION, roof, section
