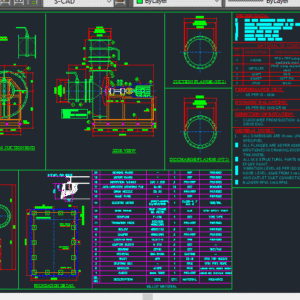

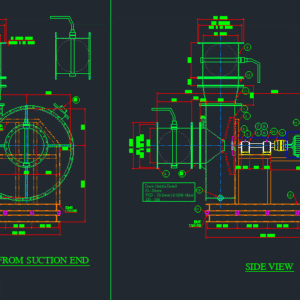

CENTRIFUGAL BLOWER 50HP AUTOCAD DRAWING ( MOTOR SHAFT DRIVE)
TRUE SCALE DIMENSION 2004 VERSION
DESIGN DATA:
AIR FLOW CAPACITY: 19000 CMH (11200 CFM APPROX)
STATIC PRESSURE: (-)350 MMWC
TEMPERATURE: 50 DEG
BLOWER RPM – 1440 RPM
STATIC LOAD – 1250 KGS.
DYNAMIC LOAD – 1875 KGS
MOC: POLYPROPYLENE + FRP / M.S (AS PER REQUIREMENT)
DIRECTION: CLOCKWISE FROM SUCTION, ANTI CLOCKWISE FROM DRIVE END

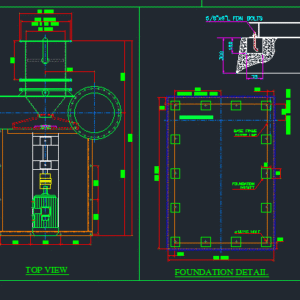

INCLUDING IMPELLER DETAIL WITH BLADES, BASE PLATE, SHROUD PLATE, HUB DETAIL, SHAFT DETAIL, PULLEY, SLEEVE, PEDESTAL, SUPPORT STAND, CASING, SUCTION AND DISCHARGE FLANGE, FOUNDATION DETAIL etc…
Language | English |
Drawing Type | Detail |
Category | Industrial |
Additional Screenshots |
|
File Type | dwg |
Materials | Plastic, Steel |
Measurement Units | Metric |
Footprint Area | |
Building Features | |
Tags | 50HP BLOWER, blower, centrifugal blower, centrifugal fan, INDUSTRIAL FAN |
