Cistern 10000lts DWG Section for AutoCAD

Cistern 10000lts DWG Section for AutoCAD

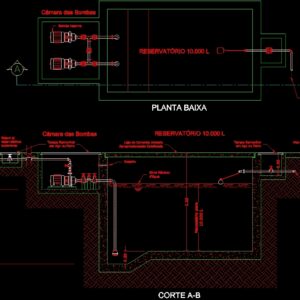

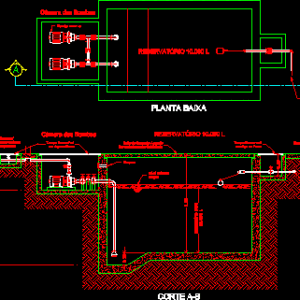

Cistern 10000 lts – Details in plant – Section – Pumpings

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

for, pump room, reservoir, pump room, reservoir, removable cover made of steel or iron, Sigh, maximum water level, appropriately caulked reinforced concrete slab, removable cover made of steel or iron, comes from the public water supply hydrometer, follows higher reservoirs, ground floor sub floor, comes from the public water supply hydrometer, reserve pump, blue print, court

Raw text data extracted from CAD file:

\A1;0.25 \A1;0,85 \A1;0.30 \A1;2,65 \A1;2.35 \A1;Necessário para 10.000 L \A1;0.55 A B Câmara das Bombas RESERVATÓRIO 10.000 L Câmara das Bombas RESERVATÓRIO 10.000 L Tampa Removível em Aço ou Ferro Suspiro Nível Máximo d'água Laje de Concreto Armado Apropriadamente Calafetada Tampa Removível em Aço ou Ferro Vem da Rede Pública de abastecimento / hidrômetro Segue p/ reservatórios superiores Piso acabado Subsolo 5 5 0.2999999999999705 5 5 5 0.549999999999968 Vem da Rede Pública de abastecimento / hidrômetro Bomba reserva PLANTA BAIXA CORTE A-B
