Cistern Cover DWG Detail for AutoCAD

Cistern Cover DWG Detail for AutoCAD

Construction details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

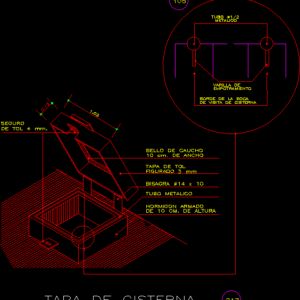

tank lid, scale, figurative, of cm. height, reinforced concrete, hinge, metallic pipe, tol cap, rubber stamp, cm. wide, insurance, of tol mm., edge of the mouth, visit of cistern, tube, metal, embedment, rod

Raw text data extracted from CAD file:

TAPA DE CISTERNA ESCALA 217 FIGURADO DE 10 CM. DE ALTURA HORMIGON ARMADO BISAGRA d14 x 10 TUBO METALICO TAPA DE TOL SELLO DE CAUCHO 10 cm. DE ANCHO SEGURO DE TOL 4 mm. 0.12 1.02 BORDE DE LA BOCA DE VISITA DE CISTERNA 3 mm TUBO d1/2 METALICO EMPOTRAMIENTO VARILLA DE 105
