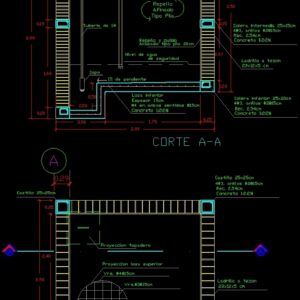

Cistern 11.000lts – Plant – Section – Technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

porcelain tile, take mortar, thickness, proportion, plant, castle, rings, concrete, rec., tezon brick, castle, polished repelle, stack type finish, castle, cut, lower slab, in both ways, thickness, concrete, castle, cover projection, vrs., upper slab projection, repelle, type pile, tuned up, both of them, polished repelle, stack type finish, metal cover, of security, control of, levels, pipeline, water level, concrete, thickness, upper slab, t.a.p. pvc, float, toad, dependent, water level, concrete, bottom hearth, rings, rec., tezon brick, concrete, rec., concrete, rings, intermediate solera, superior solera, rings, rec.

Raw text data extracted from CAD file:

\A1;2.99 \A1;1.66 \A1;0.20 \A1;0.25 \A1;1.75 \A1;0.90 \A1;2.90 \A1;0.15 \A1;2.50 \A1;0.20 \A1;0.15 \A1;0.05 \A1;0.10 \A1;2.90 \A1;2.40 \A1;0.25 \A1;2.40 \A1;0.25 \A1;2.90 \A1;0.25 \A1;0.50 \A1;0.50 \A1;0.25 \A1;0.29 \A1;0.97 \A1;1.08 \A1;0.25 \A1;0.10 \A1;0.11 \A1;1.08 \A1;0.10 5 5 5 5 5 Loseta de Porcelanate Mortero de Toma Espesor 3cm Proporcion 1:3 PLANTA Castillo 25x25cm 4#3, anillos #2@15cm Concreto 1:2:2½ Rec. 2.54cm 23x12x5 cm Ladrillo a tezon Castillo 25x25cm 5 5 Repello y pulido Acabado tipo pila 20cm Castillo 25x25cm 5 5 5 5 5 5 5 5 5 CORTE A-A Losa inferior #4 en ambos sentidos @15cm Espesor 15cm Concreto 1:2:2½ 5 5 5 5 5 Castillo 25x25cm 5 Proyeccion tapadera Vrs. #4@15cm Vrs.#3@15cm Proyeccion losa superior A A 5 5 5 5 Repello Tipo Pila Afinado #4 y#3 ambos sentidos@15cm Repello y pulido Acabado tipo pila 20cm Tapadera de metal 5 de seguridad 5 Control de niveles Tuberia de 1¼ Nivel de agua Concreto 1:2:2½ Espesor 10cm Losa Superior 5 5 5 T.A.P. PVC 3/4" Flotador Sapo 1% de pendiente 60x60cm Nivel de agua Concreto 1:2:2½ Solera inferior 25x20cm 4#3, anillos #2@15cm Rec. 2.54cm A Ladrillo a tezon Concreto 1:2:2½ Rec. 2.54cm Concreto 1:2:2½ 4#3, anillos #2@15cm Solera intermedia 25x15cm Solera Superior 25x10cm 4#3, anillos #2@15cm 23x12x5 cm Rec. 2.54cm

Language	Spanish
Drawing Type	Section
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
