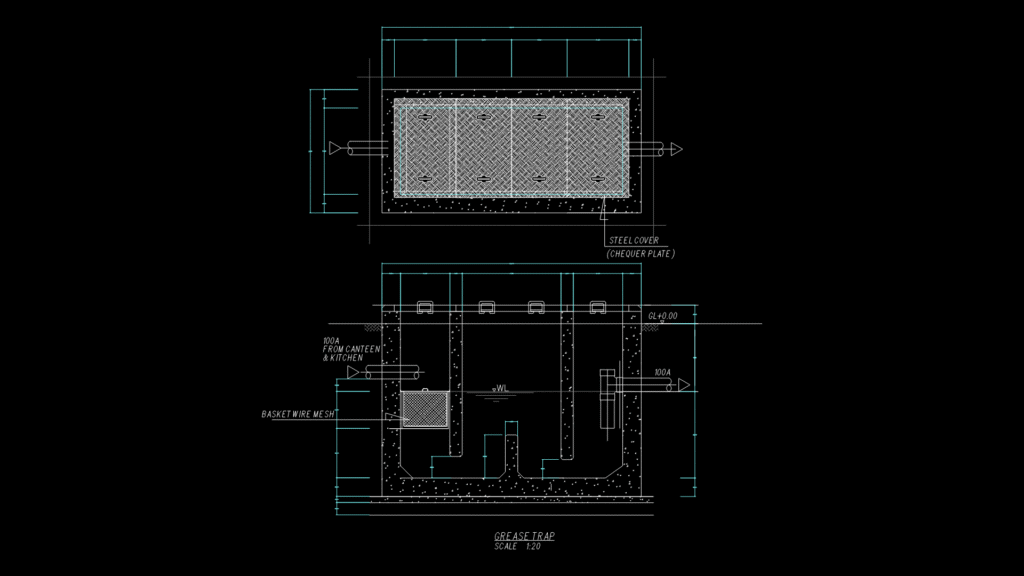

Commercial Kitchen Grease Trap section Detail with Steel Cover

This detailed and thorough section drawing depicts a concrete grease trap designed for commercial kitchen wastewater processing. The structure features 100A inlet piping from canteen and kitchen areas, with corresponding 100A outlet piping. The trap incorporates a multi-chamber design with basket wire mesh filtration system to capture solids before effluent passes through the separation chambers. The top is sealed with a steel chequer plate cover for durability and maintenance access. Positioned at ground level (GL+0.00), the trap utilizes gravity-based separation principles with baffle walls to maximize grease retention efficiency. The drawing is scaled at 1:20 and includes both plan and section views, showing the concrete construction with appropriate waterproofing considerations. Interior compartmentalization creates zones for sedimentation, separation, and filtration—essential for meeting commercial kitchen wastewater management regulations.
