Community Center, Multipurpose Hall 2D DWG Plan for AutoCAD
ADVERTISEMENT
ADVERTISEMENT

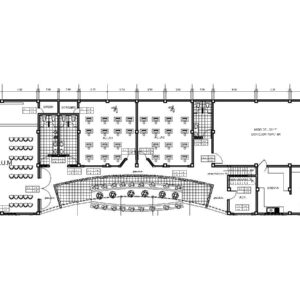

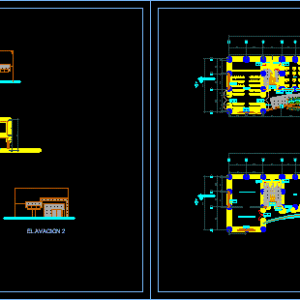

Plan, elevation and sectional view of Community center. It has two floors. The plan view shows the following areas – main entrance, hall, kitchen, five storage area, dining room, four class room, carpentry workshop, sewing workshop, electricity workshop, rest room, auditorium, job area. It shows the complete construction details of community center. it shows the garden in front of community hall. The total foot print area of the plan is approximately 650 sq meters.
| Language | English |
| Drawing Type | Plan |
| Category | Hospital & Health Centres |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood, Other |
| Measurement Units | Metric |
| Footprint Area | 500 - 999 m² (5382.0 - 10753.1 ft²) |
| Building Features | A/C, Garden / Park |
| Tags | autocad, community, community center, community hall, DWG, hall, residence |
