Construction Detail DWG Full Project for AutoCAD

Construction Detail DWG Full Project for AutoCAD

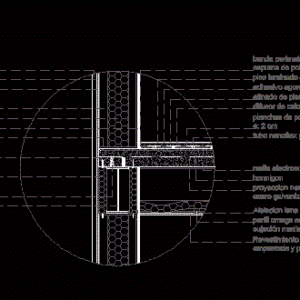

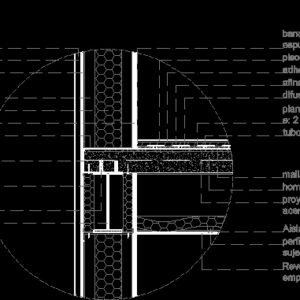

Construction detail with main steel structure; a collective residential project

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

double plasterboard, galvanized steel hinge mm mm, mineral wool insulation e: mm, galvanized steel profile with a segmented side, self-adhesive polyethylene foam perimeter band, concrete containment molding, laminated steel ipe beam, osb mm, outer panel multi-panel horizontal panel, welded Mesh, laminated floor, agorex adhesive for wood floor e: mm, tuning and: cm, thermoformed polystyrene sheets plastified e: cm, nanoflex tube for underfloor heating, aluminum plate heat exchanger, concrete, galvanized steel, mineral wool insulation e: mm, Profile omega steel galvanized fastening screw self-drilling sharp tip trumpet head, coating sky plaster plasterboard plastered plaster color white, galvanized steel strut mineral wool protection against beam fire, multipanel fastening flange, Cutting pin bolt, detail

Raw text data extracted from CAD file:

Revestimiento interior doble placa Yeso Carton e:1cm montante acero galvanizado 60x38x0.5 mm \W8.64991; @ 600 mm Aislacion lana mineral e: 100 mm perfil L acero galvanizado con un lado segmentado banda perimetral / espuma de polietileno autoadhesiva moldura para contención del hormigón \W8.88402; 150 x 70 x 1mm Viga IPE 360 Acero Laminado OSB e:11.1 mm revestimiento exterior panel multipanel F \W9.84708; horizontal sin canteria malla electrosoldada piso laminado e:7mm adhesivo agorex para piso de madera e: 3 mm afinado de piso e: 2 cm planchas de poliestireno termoconformado plastificado e: 2 cm tubo nanoflex para piso radiante difusor de calor / placa aluminio hormigon proyeccion nervadura placa colaborante acero galvanizado Aislacion lana mineral e: 60 mm perfil omega acero galvanizado sujeción mediante tornillo autoperforante punta aguda cabeza de trompeta Revestimiento cielo Placa Yeso Carton e:1cm empastada y pintada color blanco montante acero galvanizado + lana mineral \W7.27835; protección contra el fuego de viga pestaña de sujeción multipanel perno conector de corte DETALLE 1 E S C A L A 1:10

Language	Spanish
Drawing Type	Full Project
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, collective, construction, DETAIL, DWG, full, main, Project, residential, stahlrahmen, stahlträger, steel, steel beam, steel beams, steel construction detail, steel frame, structure, structure en acier
