Constructive Details DWG Detail for AutoCAD

Constructive Details DWG Detail for AutoCAD

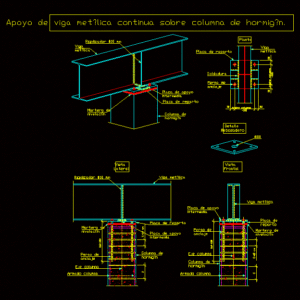

Construction detail of a metal support beam

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

view, frontal, view, side, armed column, detail, overflow, column axis, mortar of, leveling, mortar of, leveling, mortar of, leveling, bolt of, anchorage, bolt of, anchorage, bolt of, anchorage, column of, concrete, column of, concrete, column of, concrete, support plate, intermediate, support plate, intermediate, support plate, intermediate, board of delivery, plate, distribution, plant, stiffener mm, welding, metal beam, beam, metallic, beam, metallic, wide column, wide column, support of continuous metal beam on concrete column.

Raw text data extracted from CAD file:

Vista Frontal Vista Lateral Armado columna Armado columna Detalle Rebosadero Eje columna Eje columna Ø80 Mortero de nivelación Mortero de nivelación Mortero de nivelación Perno de anclaje Perno de anclaje Perno de anclaje Columna de hormigón Columna de hormigón Columna de hormigón Placa de apoyo intermedia Placa de apoyo intermedia Placa de apoyo intermedia Placa de reparto Placa de reparto Placa de reparto Placa de reparto Planta Rigidizador #10 mm Rigidizador #10 mm Soldadura Viga metálica Viga metálica Viga metálica Viga metálica 50 50 50 50 Ancho columna -100 Ancho columna -100 lb 40Ø lb 40Ø S S S 8 cm S 8 cm Apoyo de viga metálica continua sobre columna de hormigón.

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, beam, construction, constructive, cover, dach, DETAIL, details, DWG, hangar, lagerschuppen, metal, roof, shed, structure, support, terrasse, toit
