Constructive Section DWG Section for AutoCAD

Constructive Section DWG Section for AutoCAD

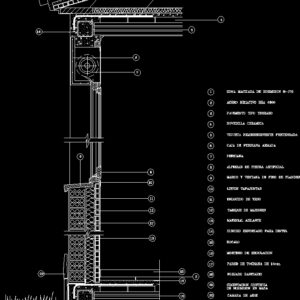

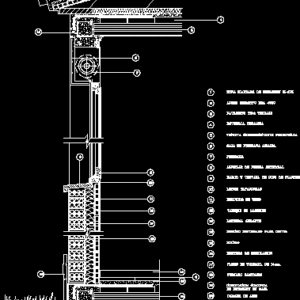

Section by facade – Details double wall – Inclined roof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

partition of mahones, natural stone, asphalt cloth bib, of concrete in mass, continuous foundation, regulation mortar, plinth, reinforced lintel for lintel, isolating material, gypsum plaster, liston flashing, pine window frame of flanders, artificial stone sill, blind, Armored blind box, prestressed semi-resistant joist, Ceramic vault, terrazzo type pavement, negative steel rea, solid concrete zone, tochana wall, sanitary forging, air chamber, constructive section

Raw text data extracted from CAD file:

TABIQUE DE MAHONES 22 21 20 19 18 22 21 20 19 18 PIEDRA NATURAL BABERO DE TELA ASFALTICA DE HORMIGON EN MASA CIMENTACION CONTINUA 17 MORTERO DE REGULACION 16 ZOCALO 15 ZUNCHO REFORZADO PARA DINTEL 14 MATERIAL AISLANTE 13 12 ENLUCIDO DE YESO 11 LISTON TAPAJUNTAS 10 MARCO Y VENTANA DE PINO DE FLANDES 9 ALFEIZAR DE PIEDRA ARTIFICIAL 8 PERSIANA 7 CAJA DE PERSIANA ARMADA 6 VIGUETA SEMIRRESISTENTE PRETENSADA 5 4 BOVEDILLA CERAMICA PAVIMENTO TIPO TERRAZO 3 ACERO NEGATIVO REA 4600 2 ZONA MACIZADA DE HORMIGON H-175 1 16 15 14 13 17 12 11 10 9 8 7 6 5 4 3 2 1 PARED DE TOCHANA DE 14cm. FORJADO SANITARIO CAMARA DE AIRE SECCION CONSTRUCTIVA

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, betonsteine, concrete block, constructive, details, double, DWG, facade, inclined, roof, section, wall, walls
