Constructive Section Facade DWG Section for AutoCAD

Constructive Section Facade DWG Section for AutoCAD

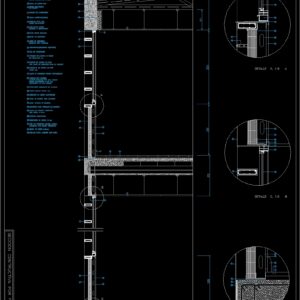

No traditional section with roof in sandwich panel – Galvanized plates

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

skirt, galvanized sheet, auction, concrete wall, false ceiling plaster, close of, sanwich panels, gutter, neoprene band, belts of, tubular profiles cm, blade, mortar plaster, steel grille, treated, plate anchor, galv steel plate., quotas in cm, coronation zuncho, galvanized steel, luxalón formed by two laminae, galv steel mm, mineral wool insulation, contructive section by facade, scale, flat, detail e., detail e., detail e., Polyethylene film, Wenge wood parquet, of mm, Beech wood beam, with expansion joint for the parquet, pine wood traces, prefabricated reinforced concrete slats, sanwich panels, luxalón formed by two laminae, galvanized steel mm, mineral wool insulation, Aluminum sliding carpentry, double glazing mm, galvanized steel stem, plasterboard panel, silicone seal joint, neoprene for possible dilatations, anodized aluminum plate, pearl gray, compacted ground, set of bowls cm, slab of reinforced concrete, culminated by perimeter nerve, steel lintel, aluminum plate anchor with panel

Raw text data extracted from CAD file:

148 44 156 108 85 108 0,35 6 FALDÓN 10% (CUMBRERA +85 cm) CHAPA GALVANIZADA DE REMATE MURO DE HORMIGON AISLAMIENTO(poliestireno expandido) FALSO TECHO ESCAYOLA CERCHA (FORMACIÓN DE PDTE.) PANELES TIPO SANWICH CANALÓN (110 mm) BANDA DE NEOPRENO CORREAS (APOYO DE PANEL) PERFILES TUBULARES 10 cm LÁMINA ASFÁLTICA(10mm) ENFOSCADO DE MORTERO M-4 1/6 REJILLA DE ACERO GALV.(APOYADA) (FACHADA TRAT. IMPERM.) ANCLAJE DE CHAPA (SOLDADA A ESTRUCTURA) CHAPA DE ACERO GALV. COTAS EN cm. ZUNCHO DE CORONACIÓN ACERO GALVANIZADO LUXALÓN FORMADO POR DOS LÁMINAS ACERO GALV. e=0.5 mm AISLAMIENTO DE LANA MINERAL 1:15 SECCION CONTRUCTIVA POR FACHADA ESCALA N PLANO 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 1 2 3 4 5 6 7 8 9 10 11 13 14 148 44 156 108 85 108 5 6 DETALLE E. 1:5 A A DETALLE E. 1:5 B B C DETALLE E. 1:5 C FILM DE POLIETILENO 15 PARQUET DE MADERA DE WENGÉ DE 220x14x20 mm RODAPIE DE MADERA DE HAYA CON JUNTA DE DILATACIÓN PARA EL PARQUET 16 17 RASTRELES DE MADERA DE PINO 40x40 mm 18 11 19 LAMAS DE HORMIGÓN ARMADO PREFABRICADO 19 19 20 PANELES TIPO SANWICH LUXALÓN FORMADO POR DOS LÁMINAS ACERO GALVANIZADO e=0.5 mm AISLAMIENTO DE LANA MINERAL 20 20 21 CARPINTERÍA DESLIZANTE DE ALUMINIO 22 VIDRIO CLIMALIT 6+2+6 mm 21 21 22 22 23 MONTANTE DE ACERO GALVANIZADO 21 22 20 24 PANEL DE CARTÓN YESO (PLADUR) 23 24 23 24 23 24 17 16 18 25 JUNTA ESTANCA DE SILICONA 25 26 NEOPRENO PARA POSIBLES DILATACIONES 26 27 CHAPA DE ALUMINIO ANODIZADO GRIS PERLA e=1mm 27 27 16 17 18 28 TERRENO COMPACTADO 29 ENCACHADO DE BOLOS 15 cm 28 29 26 25 30 LOSA DE HORMIGÓN ARMADO e=35cm CULMINADA POR NERVIO PERIMETRAL 30 20 27 19 27 27 25 23 24 23 24 26 31 31 DINTEL DE ACERO e=5mm 31 31 31 26 26 32 32 ANCLAJE CHAPA ALUMINIO CON PANEL

Language	N/A
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, construction details section, constructive, cut construction details, DWG, facade, galvanized, panel, plates, roof, sandwich, section, traditional
