Conventions Center DWG Block for AutoCAD

Conventions Center DWG Block for AutoCAD

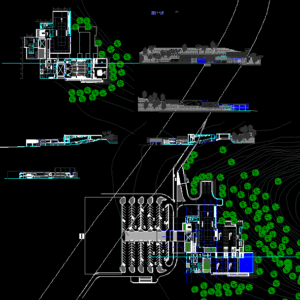

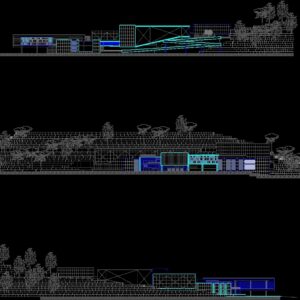

Conventions center witharea auditoriumand restaurant co.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

cafetin, outdoor stands, indoor stands, indoor stands, bathrooms, cubicles, adm, dep. and lavamopas, foyer, stage, dressing rooms, aux area, area for journalists, restaurant, jose antonio paez university design workshop viii, implantacion, ground floor, top floor

Raw text data extracted from CAD file:

9,08 16,8 9,15 9,39 8,76 7,94 8 8,02 CAFETIN STANDS AL AIRE LIBRE ±O,00 +1,225 +1,225 +2,45 +9,80 +8,575 +4,90 +4,90 STANDS TECHADOS STANDS INTERNOS STANDS INTERNOS BAÑOS BAÑOS CUBICULOS ADM +2,45 +1,225 STANDS INTERNOS STANDS INTERNOS +5,25 DEP. Y LAVAMOPAS STANDS AL AIRE LIBRE STANDS TECHADOS 7% 7% 7,8% BAÑOS BAÑOS DEP. Y LAVAMOPAS 7% 7% 7% FOYER 900 Personas ESCENARIO +5,25 FOYER +5,25 CAMERINOS AREA AUX. AREA PARA PERIODISTAS RESTAURANT A 9,50 B C D 10,90 8,50 E F G H 9,20 8,30 4,50 I J 5 1 2 3 4 5 7 8 5 5 5 5 6 5 5 5 B B´ A A´ UNIVERSIDAD JOSE ANTONIO PAEZ TALLER DE DISEÑO VIII DAVID ABRAHAM GARCIA LOZADA CI: 19641615 CENTRO DE CONVENCIONES FECHA : 17/05/2011 ESCALA: INDICADAS IMPLANTACION PLANTA BAJA PLANTA ALTA CORTE A - A´ CORTE B - B´ UNIVERSIDAD JOSE ANTONIO PAEZ TALLER DE DISEÑO VIII DAVID ABRAHAM GARCIA LOZADA CI: 19641615 CENTRO DE CONVENCIONES FECHA : 17/05/2011 ESCALA 1:100 ESCALA 1:100 ESCALA 1:250 ESCALA 1:250 ESCALA 1:1000

Language	Spanish
Drawing Type	Block
Category	Cultural Centers & Museums
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	Auditorium, autocad, block, center, CONVENTION CENTER, conventions, cultural center, DWG, museum, Restaurant
