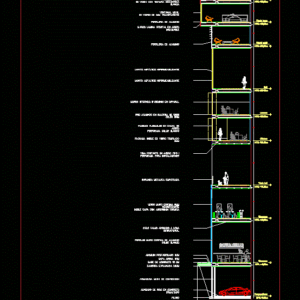

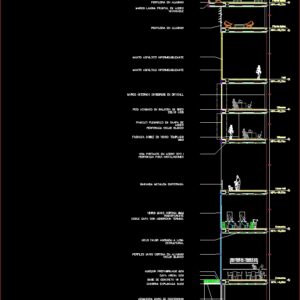

Cutting Facade DWG Section for AutoCAD

Cutting Facade DWG Section for AutoCAD

Cutting facade; detail; foating facade; Mobile lattices; green cover; retaining wall; furniture in section; railing; section steel deck slab; solar panels

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

d.d.a.c., npa, parking, npa, Commerce, npa, empty hall, npa, Offices, npa, Offices, npa, hall, npa, typical plant, npa, typical plant, npa, typical plant, npa, terrace, npa, retaining wall, Commerce

Raw text data extracted from CAD file:

D.D.A.C. \A1;3.00 \A1;3.00 \A1;3.00 \A1;6.00 \A1;3.50 \A1;3.50 \A1;6.00 \A1;4.50 \A1;6.00 \A1;4.88 NPA +-0,00m Parqueaderos NPA -9,00m Comercio NPA +12,00m Vacio hall NPA +16,50m Oficinas NPA +22,50m Oficinas NPA +26,00m Hall NPA +33,00m Planta tipica NPA +39,00m Planta tipica NPA +42,00m Planta tipica NPA +72,00m Terraza NPA +75 m MURO DE CONTENCIÓN 5 5 5 5 5 5 5 5 5 5 Comercio

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Steel
Measurement Units
Footprint Area
Building Features	Deck / Patio, Parking, Garden / Park
Tags	autocad, construction details section, cover, cut construction details, cutting, DETAIL, DWG, facade, green, mobile, retaining, section, steel deck
