Danpaloñ Details DWG Detail for AutoCAD

Materials – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

translucent polycarbonate main plate provided with a flange each omega side profile connector that provides a perfect fastener. Stainless steel support that is moored in the structure is completely hidden structural support structure., long plate between shafts of thickness of mm main support radius secondary supports separation plate

Raw text data extracted from CAD file:

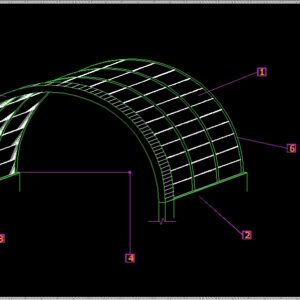

A) Placa principal de policarbonato traslúcico , provista de una pestaña a cada lado . B) Omega o perfil conector que proporciona una perfecta sujeción. C) Soporte de acero inoxidable que se amarra a la estructura y queda totalmente oculto . D) Estructura o soporte estructural. A B D C A A C D A 1 2 3 4 5 6 1. Placa de 1 x 0.60 m 2. Largo entre ejes de 9.76 m 3. Espesor de 16 mm 4. Radio de 5 m 5. Soporte principal 6. Soportes secundarios 7. Placa de separación 7

Language	N/A
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, cover, dach, DETAIL, details, DWG, hangar, lagerschuppen, materials, roof, shed, structure, terrasse, toit
