Design Umbrellas DWG Full Project for AutoCAD

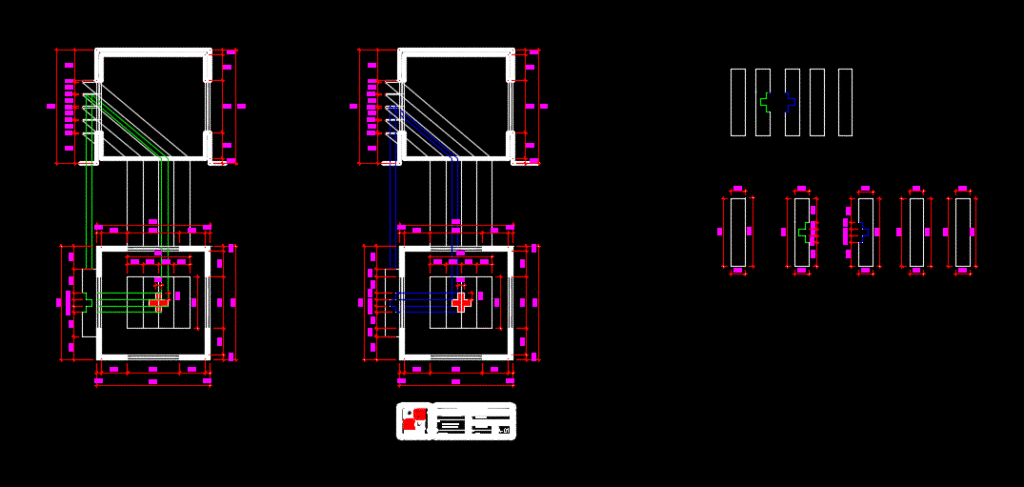

Quadrangular space of 4m x 4m and 4m high ground – centered 04 window openings; one on each wall of the space. – One of the windows should be geared 47.19 ° West. – The window sill is 1.00m – must be raised visors (Minimum 04) indoors or outdoors; solar income to form a cross shape on the floor of our room; for the day May 21 at 2:00 pm. – The project location is in Chiclayo and must consider its latitude 6.75

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

arq :, date :, scale :, plane :, sheet :, architecture, design workshop iv, interior design, est secico, james rojas quispe, students :, mio santos erika, diaz davila yenny, project :, parasols

Raw text data extracted from CAD file:

0.20 1.00 2.00 1.00 0.20 4.40 1.20 0.05 0.45 0.05 0.45 0.05 0.45 0.05 0.45 0.05 1.15 4.40 4.40 2.00 1.00 0.20 0.20 1.00 1.20 0.05 0.45 0.05 0.45 0.05 0.45 0.05 0.45 0.05 1.15 4.40 6.20 4.40 0.20 1.00 2.00 1.00 0.20 4.40 0.20 1.00 2.00 1.00 0.20 4.40 0.20 1.00 2.00 1.00 0.20 0.20 1.00 0.20 0.20 1.00 2.00 1.00 4.40 0.20 1.00 4.40 0.20 2.00 4.40 1.00 2.00 1.00 0.20 2.40 0.60 0.60 0.60 0.60 2.00 0.25 0.25 0.25 2.40 0.60 0.60 0.60 0.60 2.00 0.25 0.90 0.93 0.25 0.25 0.25 0.93 0.90 4.40 4.40 0.90 0.30 0.63 0.25 0.25 0.25 0.63 0.30 0.90 0.54 2.65 2.61 0.54 0.54 0.93 0.25 0.25 0.25 0.93 2.60 0.54 0.54 2.60 0.93 0.25 0.25 0.25 0.93 0.54 0.54 2.60 0.54 2.60 0.54 2.60 0.54 2.60 ARQ: FECHA: ESCALA: PLANO: LAMINA: A-01 ARQUITECTURA TALLER DE DISEÑO IV DISEÑO DE INTERIORES EST SENCICO JAMES ROJAS QUISPE ALUMNAS: MIO SANTOS ERIKA DIAZ DAVILA YENNY PROYECTO: PARASOLES 26/05/15 1/25 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5
