Detail Balcony – Ceiling DWG Section for AutoCAD

Detail Balcony – Ceiling DWG Section for AutoCAD

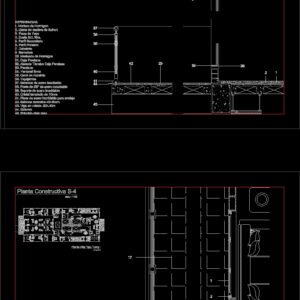

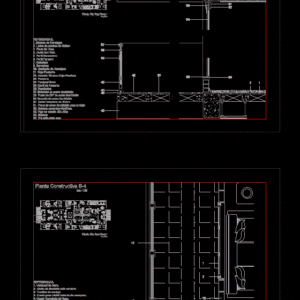

Details of plant construction and constructive section

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

detail construction section, references. concrete mortar concrete slab plasterboard slab duela secondary profile primary profile slab sweeper masticated concrete box shutter thermal insulation shutter box shutter window aluminum rail flashing stainless steel rail stainless steel post stainless steel bracket tempered glass plate stainless steel for anchorage ceramic tile beam in float goteron plaster ceiling, tower type high plant, esc. graph, construction plant, tower type high plant, esc. graph, references. aluminum window frame for window anchor bolts window frame for swing glass. tempered glass of stairs main entrance porcelanato est beam: est rod: cement mortar common brick goteron stainless steel rail stainless steel post ceramic tile

Raw text data extracted from CAD file:

2 3 4 5 1 2 3 4 5 6 7 8 9 14 13 12 11 10 16 15 33 S4 S4 2 3 4 5 1 2 3 4 5 6 7 8 9 14 13 12 11 10 16 15 33 7 6 5 3 1 2 4 9 31 32 33 34 35 36 37 38 39 40 41 25 42 43 Detalle Seccion Constructiva S-4 esc.- 1:20 REFERENCIAS. 1. Mortero de Hormigon 2. Liston de madera de 5x5cm 3. Placa de Yeso 4. Duela 3x0.15m. 5. Perfil Secundario 6. Perfil Primario 7. Caballete 9. Barredera 25. Masisado de Hormigon 31. Caja Persiana 32. Aislante Térmico Caja Persiana 33. Persiana 34. Ventanal 6mm 35. Carril de Aluminio 36. Tapajuntas 37. Barandal de acero inoxidable 38. Poste de d2" de acero inoxidable 39. Soporte de acero inoxidable 40. Cristal templado de 10mm 41. Placa de acero inoxidable para anclaje 42. Baldosa ceramica 40x40cm. 43. Viga en volado .60x.40m 44. Goteron 45. Enlucido cielo raso Planta Alta Tipo Torre I esc. grafica Planta Constructiva S-4 esc.- 1:20 Planta Alta Tipo Torre I esc. grafica 44 8 9 10 11 12 REFERENCIAS. 1. Ventanal de 6mm. 2. Marco de aluminio para ventana 3. Tornillos de anclaje 4. Zocalo para cristal batiente de mampara. 5. Cristal Templado de 6mm. 6. Escaleras Ingreso Principal 7. Porcelanato 60x60cm. 8. Viga de H°A° 70x70cm. 9. EST: 1d10mm. @ 60-60cm 10. Varilla 1 d 14mm. 11. EST: 1d10mm. @ 45-45cm 12. Mortero de cemento 13. Ladrillo comun 14. Goteron 15. Barandal de acero inoxidable d2" 16. Poste de d2" de acero inoxidable 17. Baldosa ceramica de 40x40cm. 13 2 1 14 15 15 17 45

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Glass, Steel
Measurement Units
Footprint Area
Building Features
Tags	abgehängten decken, autocad, balcony, ceiling, construction, constructive, DETAIL, details, DWG, plafonds suspendus, plant, section, suspenden ceilings
