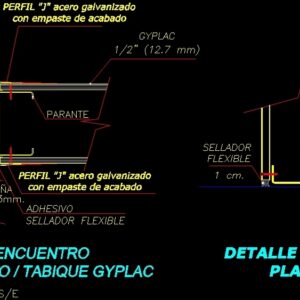

Two details anchorage of Drywalls with concrete rowlocks

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

roasted, brick, meeting, galvanized steel with finish filling, flexible sealant, bruna, min., adhesive, galvanized steel with finish filling, partner, gyplac, meeting floor plate, flexible sealant, cm., rail, nail cm, finished floor, gyplac plate, concrete wall

Raw text data extracted from CAD file:

TARRAJEADO O LADRILLO S/E \fArial|b0|i0|c0|p34;DETALLE ENCUENTRO TABIQUE CONCRETO / TABIQUE GYPLAC \fVerdana|b0|i0|c0|p34;PERFIL "J" acero galvanizado con empaste de acabado SELLADOR FLEXIBLE BRUÑA mín. 3mm. ADHESIVO \fVerdana|b0|i0|c0|p34;PERFIL "J" acero galvanizado con empaste de acabado PARANTE 1/2" (12.7 mm) GYPLAC \fVerdana|b1|i0|c0|p34;DETALLE DE ENCUENTRO PLACA Y PISO SELLADOR FLEXIBLE 1 cm. RIEL CLAVO P/CEMENTO @ 60 cm PISO TERMINADO PLACA GYPLAC 1/2" (12.7 mm) S/E MURO CONCRETO
