Detail Floor- Roof DWG Section for AutoCAD

Detail Floor- Roof DWG Section for AutoCAD

Section facade

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

vapor barrier, Isolation, Vermiculite cm, Thermal insulation, pending, Rubble, mortar, Buckles, Top deck, Beam of hº aº pref., cement, sand, Grit, Polystyrene exp., Column of h º aº, prefabricated, cement, sand, Grit, Panel with carp., Including metal, Underfloor insitu, cement, lime, sand, Cascote, Insulated base insitu, Hr, cement, sand, Stone ball, Union for bulon, General cut, scale

Raw text data extracted from CAD file:

1 mm BARRERA DE VAPOR AISLACION T-A VERMICULITA 5 CM AISLACION TERMICA PENDIENTE 2 cm/mL CASCOTES P/RELL. MORTERO 1/4:1:4 BOVEDILLAS CUBIERTA SUPERIOR VIGA DE Hº Aº PREF. 1:3:3 CEMENTO ARENA GRANZA POLIESTIRENO EXP. COLUMNA DE Hº Aº PREFABRICADA 1:3:3 CEMENTO ARENA GRANZA PANEL CON CARP. METALICA INCLUIDA CONTRAPISO INSITU 1/4:1:8:10 CEMENTO CAL ARENA CASCOTE BASE AISLADA INSITU Hº Aº 1:3:3 CEMENTO ARENA PIEDRA BOLA UNION POR BULON UNION POR BULON CORTE GENERAL ESCALA 1:10

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems

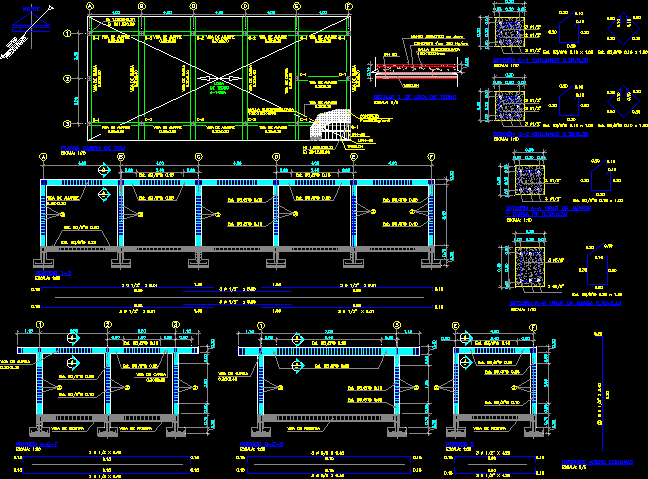

Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Deck / Patio, Car Parking Lot
Tags	autocad, construction details section, cut construction details, DETAIL, DWG, facade, floor, roof, section
