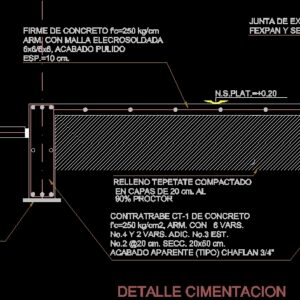

Detail Foundation DWG Detail for AutoCAD

Typical foundation to support the weight of Tower Monopolo for Cellular telephony

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

esp., concrete template, expansion meeting, fexpan sealer, compacted tepetate filling, in layers of cm. to the, polished finish, arm. with electrowelded mesh, firm concrete, arm. with vars., foundation detail, vars. add its T., cm. sect. cm., apparent finish chamfer, Concrete contraption, proctor, firm concrete arm, with electrowelded mesh, edges with cm flipper. from, width cm., brushed finish cut in the, template, cm.

Raw text data extracted from CAD file:

f'c=100 kg/cm2, ESP. 5cm. PLANTILLA DE CONCRETO JUNTA DE EXPANSION FEXPAN Y SELLADOR N.P.T.=±0.00 RELLENO TEPETATE COMPACTADO EN CAPAS DE 20 cm. AL 6x6/6x6, ACABADO PULIDO ARM. CON MALLA ELECROSOLDADA FIRME DE CONCRETO f'c=250 kg/cm f'c=250 kg/cm2, ARM. CON 6 VARS. DETALLE CIMENTACION No.4 Y 2 VARS. ADIC. No.3 EST. No.2 @20 cm. SECC. 20x50 cm. ACABADO APARENTE (TIPO) CHAFLAN 3/4" CONTRATRABE CT-1 DE CONCRETO 90% PROCTOR N.S.PLAT.=+0.20 FIRME DE CONCRETO f'c=150 KG/cm2 ARM. CON MALLA ELECTROSOLDADA 6x6/10-10 BORDES CON VOLTEADOR DE 10 cm. DE ANCHO (TIPO) ESP.=10 cm. ACABADO ESCOBILLADO Y CORTE EN LOS PLANTILLA N.P.T.=±0.00 ESP.=10 cm.

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, cellular, DETAIL, DWG, einrichtungen, facilities, FOUNDATION, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, support, telephony, tower, typical, wasser bestimmung, water, weight
