Detail ground connection – Section – Specifications

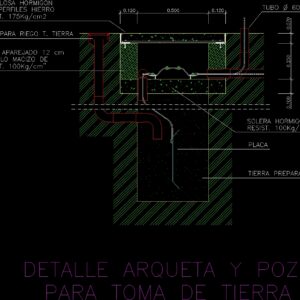

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

for grounding, detail, concrete slab cover, concrete screed, resist., with iron profiles, pipe mm, resist., solid brick, wall mounted cm, mouth for irrigation t. Earth, resist., prepared earth, license plate

Raw text data extracted from CAD file:

0.100 0.250 0.070 0.120 0.500 0.120 \A1;0.120 \A1;0.500 \A1;0.120 \A1;0.070 \A1;0.250 \A1;0.100 PARA TOMA DE TIERRA DETALLE ARQUETA Y POZO TAPA LOSA HORMIGON SOLERA HORMIGON DE RESIST. 175Kg/cm2 CON PERFILES HIERRO / TUBO O 60 mm RESIST. 100Kg/cm" LADRILLO MACIZO DE MURO APAREJADO 12 cm BOCA PARA RIEGO T. TIERRA RESIST. 100Kg/cm2 TIERRA PREPARADA PLACA 5 5 5 5 5 5

Language	Spanish
Drawing Type	Section
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
