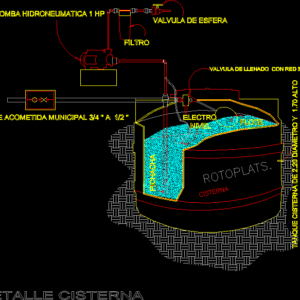

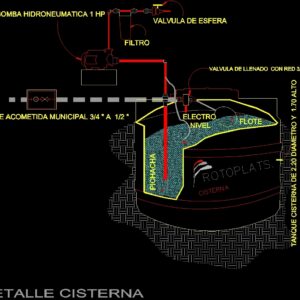

Detail Pre-Manufactured Cistern DWG Detail for AutoCAD

PREMANUFACTURED CISTERN WITH HYDROPNEUMATIC PUMP;INDICATION OF RUSH CITY COLLECTORi

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

rotoplats., tank, hp hydropneumatic pump, tank of high diameter tank, lts capacity., ball valve, filter, float, pichacha, electro, level, network filling valve, municipal connection network, cistern detail

Raw text data extracted from CAD file:

ROTOPLATS. CISTERNA BOMBA HIDRONEUMATICA 1 HP TANQUE CISTERNA DE 2.20 DIAMETRO Y 1.70 ALTO CAPACIDAD DE 5,000 LTS. VALVULA DE ESFERA FILTRO FLOTE PICHACHA ELECTRO NIVEL VALVULA DE LLENADO CON RED 3/4" A 1/2" RED DE ACOMETIDA MUNICIPAL 3/4 " A 1/2 " DETALLE CISTERNA

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, cistern, city, dach, dalle, DETAIL, DWG, escadas, escaliers, hydropneumatic, lajes, mezanino, mezzanine, platte, premanufactured, reservoir, roof, rush, slab, stair, telhado, toiture, treppe
