Detail Roof Covering DWG Detail for AutoCAD

Detail Roof Covering DWG Detail for AutoCAD

Detail roof with multy panel

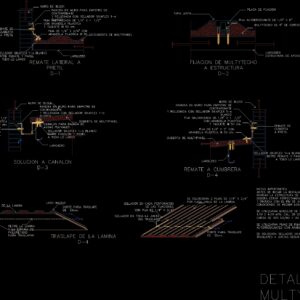

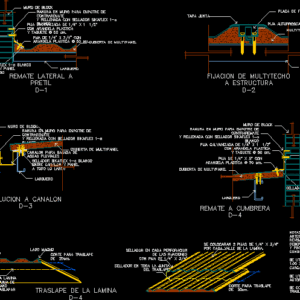

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Block wall, Important notes: Before starting the installation it will be necessary to check the structure of which must be perfectly aligned painted in order to ensure that it is able to receive the panels. Mts multypanel modules will be used. lime. With a load capacity of a weight of self-tapping fasteners with plastic washer. Sikaflex white sealant will be placed in overlapping joints as indicated by plane., Sikaflex white sealant between end panel full length, Multytecho of thickness, Self-tapping, Fixing plate, Overlap of sheet, Male side, Wall groove for contraremate recess filled with sikaflex white sealant, Sikaflex white sealant between channeling panel all the way, Gutter for drainage, crossbar, Wall groove for contraremate recess filled with sikaflex white sealant, Canalon solution, Fence, With plastic washer cm., Galvanized peg with plastic washer., Valley of the lamina, Remove the sheet from the polyurethane foam to overlap, Female side, Galvanized peg with plastic washer., Cover, Block wall, Sikaflex white sealant between end panel full length, Cover, Sealant at each piercing of the fixings with, Sealant on the entire overlap seal, Cut to overlap, Pails would be placed in each valley of the blade., crossbar, Ridge finish, Multypanel cover, crossbar, Multytecho fixation structure, With plastic washer cm., Galvanized peg with plastic washer., Wall groove for contraremate recess filled with sikaflex white sealant, Multypanel cover, Block wall, Gasket, Multypanel details, Cover, Strut support structure

Raw text data extracted from CAD file:

MURO DE BLOCK NOTAS IMPORTANTES: ANTES DE INCIAR LA INSTALACION SERA NECESARIO REVISAR LA ESTRUCTURA DE SOPORTE, LA CUAL DEBERA ESTAR PERFECTAMENTE INSTALADA, ALINEADA Y PINTADA CON EL FIN DE ASEGURARSE QUE ESTA EN CONDICIONES DE RECIBIR LOS PANELES. SE UTILIZARAN MODULOS DE MULTYPANEL DE 5" X 1.00 X 4.00 MTS. CAL. 26 CON UNA CAPACIDAD DE CARGA DE 420 KG/M2 Y UN PESO DE 15.45 KG/M2. SE UTILIZARAN PIJAS DE FIJACION DE 1/4" X 6" AUTORROSCANTES CON ARANDELA PLASTICA. SE COLOCARA SELLADOR SIKAFLEX 1-a BLANCO EN TRASLAPES Y JUNTAS SEGUN INDIQUE PLANO. SELLADOR SIKAFLEX 1-a BLANCO ENTRE REMATE Y PANEL A TODO LO LARGO MULTYTECHO DE 5" DE ESPESOR PIJA AUTORROSCANTE DE 1/4" X 6" PLACA DE FIJACION TRASLAPE DE LA LAMINA D-4 LADO MACHO RANURA EN MURO PARA EMPOTRE DE CONTRAREMATE Y RELLENADA CON SELLADOR SIKAFLEX 1-a BLANCO SELLADOR SIKAFLEX 1-a BLANCO ENTRE CANALON Y PANEL A TODO LO LARGO CANALON PARA BAJADA DE AGUAS PLUVIALES LARGUERO RANURA EN MURO PARA EMPOTRE DE CONTRAREMATE Y RELLENADA CON SELLADOR SIKAFLEX 1-a BLANCO SOLUCION A CANALON D-3 REMATE LATERAL A PRETIL D-1 PIJA DE 1/4" X 3/4" CON ARANDELA PLASTICA @ 50 cm. PIJA GALVANIZADA DE 1/4" X 1 1/2" CON ARANDELA PLASTICA Y TAQUETE @ 50 cm. VALLE DE LA LAMINA RETIRE LA LAMINA Y LA ESPUMA DE POLIURETANO PARA TRASLAPAR LADO HEMBRA PIJA GALVANIZADA DE 1/4" X 1 1/2" CON ARANDELA PLASTICA Y TAQUETE @ 50 cm. REMATE DE CUBIERTA A PRETIL MURO DE BLOCK SELLADOR SIKAFLEX 1-a BLANCO ENTRE REMATE Y PANEL A TODO LO LARGO REMATE DE CUBIERTA A PRETIL SELLADOR EN CADA PERFORACION DE LAS FIJACIONES CON PIJA DE 1/4" X 3/4" SELLADOR EN TODA LA JUNTA DEL TRASLAPE CORTE PARA TRASLAPE DE 20cm. CORTE PARA TRASLAPE DE 20cm. SE COLOCARAN 2 PIJAS DE 1/4" X 3/4" POR CADA VALLE DE LA LAMINA. LARGUERO REMATE A CUMBRERA D-4 CUBIERTA DE MULTYPANEL CUBIERTA DE MULTYPANEL LARGUERO FIJACION DE MULTYTECHO A ESTRUCTURA D-2 PIJA DE 1/4" X 5" CON ARANDELA PLASTICA @ 50 cm. PIJA GALVANIZADA DE 1/4" X 1 1/2" CON ARANDELA PLASTICA Y TAQUETE @ 50 cm. RANURA EN MURO PARA EMPOTRE DE CONTRAREMATE Y RELLENADA CON SELLADOR SIKAFLEX 1-a BLANCO CUBIERTA DE MULTYPANEL MURO DE BLOCK TAPA JUNTA DETALLES MULTYPANEL REMATE DE CUBIERTA A PRETIL LARGUERO ESTRUCTURA DE APOYO
