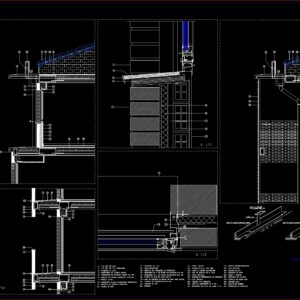

Transverse section of connection 2 roofs – one flat other inclined kick plate

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

sill, Double profile, Mm., Upstream profile, Welded profile, Cement folder esp., Waterproof geotextile membrane glued, Asphalt felt, Ceiling applied lime, Prestressed hollow slab esp. Cm., Underfloor compression layer, Esp. Cm. Pending, vapor barrier, Galvanized smooth sheet, Insulating membrane, Tightened wires, Thermal insulation of expanded polystyrene, High density mm, Lower string of the truss profile, profile, Soldier column, Esp. Mm, Double profile column, To hold the membrane, Set screw, With rubber washer, Upper string of the truss profile, With asphalt paint, Waterproofing waterproofing, Dilatation poilest.exp., Babe, concrete block, Common brick, Mortar with seat, Zinc channel cm., Asphalt felt, Soldered iron esp., Naked profile

Raw text data extracted from CAD file:

SOLERA 70mm PERFIL N DOBLE T Nº12 PLACA DE DURLOCK 12.5 mm. PERFIL MONTANTE 69mm. C/0,40m. PERFIL L 50-50-5 SOLDADOS CARPETA DE CEMENTO ESP. 2cm. MEMBRANA IMPERMEABLE GEOTEXTIL PEGADA FIELTRO ASFALTICO CIELORRASO APLICADO A LA CAL ESP.1cm LOSA HUECA PRETENSADA SHAP30 ESP. 10 cm. CAPA DE COMPRESION - CONTRAPISO ESP. 7 cm. CON PENDIENTE 2% BARRERA DE VAPOR CHAPA LISA GALVANIZADA N22 MEMBRANA HIDROFUGA-TERMICA ISOLANT ALAMBRES CRUZADOS TENSADOS AISLACION TERMICA DE POLIESTIRENO EXPANDIDO DE ALTA DENSIDAD 20kG/m3 ESP.20 mm CORDON INFERIOR DE LA CERCHA PERFIL L 60-60-6 PERFIL L 70-70-7 SOLDADO A LA COLUMNA SOLDADO A LA COLUMNA PLANCHUELA ESP. 8 mm COLUMNA PERFIL DOBLE T Nº16 PARA SOSTENER LA MEMBRANA TORNILLO DE FIJACION DE CHAPA CON ARANDELA DE GOMA CORDON SUPERIOR DE LA CERCHA PERFIL L 60-60-6 CON PINTURA ASFALTICA IMPERMEABILIZADA 1:3 + HIDROFUGO DILATACION POILEST.EXP. ESP.1cm BABETA BLOQUE DE HORMIGON 10-20-40 LADRILLO COMUN 5-12-25 MORTERO DE ASIENTO CON HIDROFUGO(1:3+H) CANALETA DE ZINC 20x15 cm. FIELTRO ASFALTICO PLANCHUELA SOLDADA A LA VIGA ESP. 7mm PERFIL NU Nº12 1,20 m
