DEtail wall of contention – Foundation of residential house

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

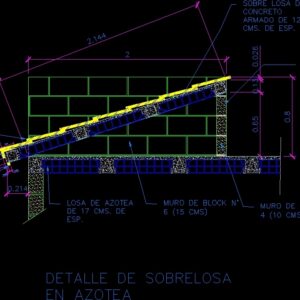

detail of contension wall, vr cms, concrete enclosure f’c: armed with vr est. cms., Concrete castle f’c: armed with vr est. cms. m., vr cms, concrete filling block f’c:, pvc drain drilled in the upper part mts., poor concrete template f’c: de cms. of esp., roof overlap detail, Chamfer mortar cement sand prop. to receive clay tile, goterion of cement mortar sand prop. to receive clay tile, block wall, on reinforced concrete slab of cms. of esp., roof slab of cms. of esp., Portuguese type mud tile, block wall, note: do not place this wall until it is cast on to be able to remove the formwork.

Raw text data extracted from CAD file:

0.5 1.3 0.2 0.55 0.2 0.55 0.5 1.65 0.2 0.05 0.1 0.8 5 5 5 detalle de muro de contension VR # 4 @ 25 CMS. VR # 4 @ 20 CMS. VR # 3 @ 20 CMS. CERRAMIENTO DE CONCRETO F'C: 150 KG/CM2. .20 X .20 ARMADO CON 4 VR # 3 Y EST. # 2 @ 20 CMS. CASTILLO DE CONCRETO F'C: 150 KG/CM2. .20 X .20 ARMADO CON 4 VR # 4 Y EST. # 2 @ 20 CMS. @ 4.OO M. VR # 4 @ 20 CMS. 5 5 5 BLOCK RELLENO DE CONCRETO F'C: 150 KG/CM2. 5 5 5 5 DREN DE PVC 4" PERFORADO EN LA PARTE SUPERIOR @ 2.00 MTS. PLANTILLA DE CONCRETO POBRE F'C: 70 KG/CM2. DE 5 CMS. DE ESP. 5 5 0.06 0.06 0.025 0.025 0.025 0.025 0.17 0.15 0.8 0.026 0.13 0.65 2 2.144 0.218 0.214 5 5 5 5 5 5 5 5 5 5 5 5 5 5 DETALLE DE SOBRELOSA EN AZOTEA CHAFLAN DE MORTERO CEMENTO - ARENA PROP. 1:5 PÁRA RECIBIR TEJA DE BARRO GOTERION DE MORTERO CEMENTO - ARENA PROP. 1:5 PÁRA RECIBIR TEJA DE BARRO MURO DE BLOCK N° 6 (15 CMS) SOBRE LOSA DE CONCRETO ARMADO DE 12 CMS. DE ESP. LOSA DE AZOTEA DE 17 CMS. DE ESP. TEJA DE BARRO TIPO PORTUGUESA MURO DE BLOCK N° 4 (10 CMS) NOTA: NO COLOCAR ESTE MURO HASTA QUE ESTE COLADA LA SOBRE LOSA, PARA PODER RETIRAR LA CIMBRA. 5 5

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, béton armé, concrete, contention, DETAIL, DWG, formwork, FOUNDATION, house, reinforced concrete, residential, schalung, stahlbeton, wall
