Details Beams DWG Section for AutoCAD

Details Beams DWG Section for AutoCAD

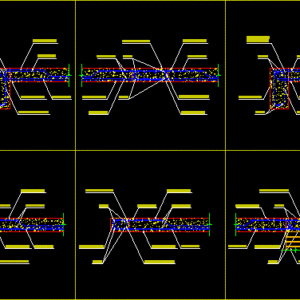

Concrete beams – Sections with technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

normal banked beam, variable separation, covering, flat beam, covering, covering, variable separation, covering, covering, covering, variable separation, covering, edge beam down, covering, Solera beam, covering, variable separation, covering, covering, variable separation, covering, inner beam, covering, variable separation, covering, outer beam, supporting wall

Raw text data extracted from CAD file:

Ø 1/2" @ 0.20 m 2 d 1/2 " viga peraltada normal 0.20 x 0.45 m 3 d 1/2 " d 1/4" separación variable recubrimiento 0.02 m recubrimiento 0.04 m viga chata 0.40 X 0.15 m Ø 3/8" @ 0.30 m recubrimiento 0.02 m Ø 1/2" @ 0.40 m Ø 3/8" @ 0.30 m recubrimiento 0.03 m d 1/4" separación variable 4 d 1/2 " recubrimiento 0.02 m Ø 1/2" @ 0.40 m recubrimiento 0.03 m 4 d 1/2 " Ø 3/8" @ 0.30 m Ø 1/2" @ 0.20 m recubrimiento 0.04 m recubrimiento 0.02 m d 1/4" separación variable recubrimiento 0.02 m Ø 1/2" @ 0.40 m 3 d 1/2 " viga de borde hacia abajo 0.20 x 0.45 m 2 d 1/2 " Ø 3/8" @ 0.30 m recubrimiento 0.02 m viga solera 0.20 x 0.15 m 2 d 1/2 " Ø 3/8" @ 0.30 m recubrimiento 0.02 m d 1/4" separación variable Ø 1/2" @ 0.40 m 3 d 1/2 " recubrimiento 0.025 m Ø 1/2" @ 0.20 m Ø 1/2" @ 0.20 m recubrimiento 0.025 m d 1/4" separación variable recubrimiento 0.02 m recubrimiento 0.02 m 3 d 1/2 " Ø 1/2" @ 0.40 m viga interior 0.20 x 0.15 m 2 d 1/2 " Ø 1/2" @ 0.20 m Ø 3/8" @ 0.30 m recubrimiento 0.025 m d 1/4" separación variable recubrimiento 0.02 m recubrimiento 0.02 m 3 d 1/2 " Ø 1/2" @ 0.40 m viga exterior 0.20 x 0.15 m 2 d 1/2 " Ø 1/2" @ 0.20 m Ø 3/8" @ 0.30 m muro portante muro portante

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, beams, béton armé, concrete, details, DWG, formwork, reinforced concrete, schalung, section, sections, specifications, stahlbeton, technical
