Details Electric DWG Detail for AutoCAD

Details Electric DWG Detail for AutoCAD

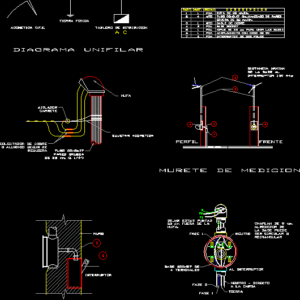

Details of meter connections, type of and how to install the meters. and boards ..

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Socket base, Thick mm.dim., Mufa de mm.dim, Copper wire, neutral, Earth, Direct neutral, load, To the switch, Two pole switch, Coupling with elbow, Nipple of mm. To unite the bases, Conduit galvanized wall pipe, Measuring wall, switch, Connection details, phase, Wall, phase, Cm outside the, Leave these tips, Socket, Terminals, Mufa., C. F., Nm., Aluminum according to, Copper collector, Mufa, Hold up, insulator, reel, Thick wall, Mm., Require, Conduit pipe, profile, Distribution board, Int. Sec., measurer, Physical earth, Pza, Pza, Mto, Cant, Part., unity, Mto, Pza, The base can, rectangular, To be circular, about, Chamflan of cm., front, From the base to the, Maximum distance, Mts switch.

Raw text data extracted from CAD file:

1 BASE SOCKET GRUESA DE 32 mm.Dim. MUFA DE 32 mm.Dim. CABLE DE COBRE 2 1 NEUTRO TIERRA NEUTRO - DIRECTO A LA CARGA AL INTERRUPTOR INTERRUPTOR DE DOS POLOS ACOPLAMIENTO CON CODO DE 90 NIPLE DE 32 mm. PARA UNIR LAS BASES TUBO CONDUIT GALVANIZADO DE PARED MURETE DE MEDICION D E S C R I P C I O N INTERRUPTOR DETALLES DE ACOMETIDA FASE 2 FASE 1 MURO 6 5 FASE 1 F2 F1 N 60 cm FUERA DE LA DEJAR ESTAS PUNTAS BASE SOCKET DE 4 TERMINALES MUFA. ACOMETIDA C.F.E. DIAGRAMA UNIFILAR O ALUMINIO SEGUN SE COLECTADOR DE COBRE MUFA SUJETAR ACOMETIDA AISLADOR CARRETE PARED GRUESA DE 32 mm. (1 1/4") REQUIERA TUBO CONDUIT PERFIL 4 7 6 TABLERO DE DITRIBUCION A C INT. DE SEG. MEDIDOR TIERRA FISICA 2 7 PZA 6 5 4 3 1 1 2 1 PZA PZA PZA MTO CANT. 2 1 PART. 4 1 UNIDAD MTO PZA LA BASE PUEDE RECTANGULAR SER CIRCULAR O ALREDEDOR DE CHAFLAN DE 5 cm. FRENTE 4 DE LA BASE AL DISTANCIA MAXIMA INTERRUPTOR 1.00 mts.

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Aluminum
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, boards, connections, DETAIL, details, DWG, einrichtungen, electric, electrical details, facilities, gas, gesundheit, install, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, meter, meters, provision, type, wasser bestimmung, water
