Details Of Metal Doors Vault Door DWG Detail for AutoCAD

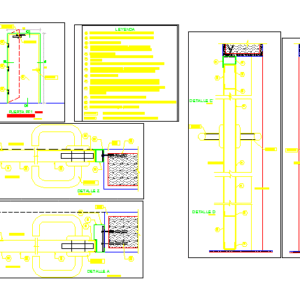

CONSTRUCTION DETAILS OF METAL DOORS ARE TWO OF A VAULT AND A COMPUTER ROOM WITH ITS COURTS AND LIFTS ALSO INDICATING THE SAME MATERIALS

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

indicated, a. montalvo, architecture, metal carpentry, tagnumber, updating plans, xxxxx, c.murata, j.grados, xxx, inst.electromecanica, office name, first-floor, responsible professional, – vault, – cto. of compute, detail c, detail d, exterior, interior, detail b, detail a, detail z, detail x, detail c ‘, raw glass with safety sheet as required, paint enamel polyurethane color similar to wall, closes doors superimposed, legend, faith pipe, cut to, and frosted, weld run, steel bill, ramp, wall, sidewalk

Raw text data extracted from CAD file:

INDICADA A. MONTALVO ARQUITECTURA CARPINTERIA METALICA PUERTA INGRESO DE AUTOS (PF2) TAGNUMBER \A1;1.00 \A1;2.10 \A1;1.00 \A1;2.10 ACTUALIZACION DE PLANOS AV. VENEZUELA N° 2580 XXXXX C.MURATA 1/50 02/11/2009 J.GRADOS XXX INST.ELECTROMECANICA ARQ. CESAR MURATA CAP 4439 NOMBRE DE OFICINA PRIMER-PISO ACTUALIZACION DE PLANOS 0154-01-A-001 REVISION-01 PROFESIONAL RESPONSABLE \A1;.90 \A1;4" \A1;4" \A1;2" \A1;4" \A1;6 mm \A1;4" \A1;4" \A1;2" \A1;4" \A1;.13 \A1;4" \A1;2" \A1;.12 \A1;2" \A1;.13 \A1;.13 \A1;2" \A1;4.00 \A1;3.00 \A1;.13 \A1;.05 \A1;.13 \A1;.05 \A1;.13 \A1;.12 \A1;.10 \A1;.15 \A1;.15 \A1;.84 \A1;.84 \A1;.84 \A1;.10 \A1;3.76 \A1;.18 PUERTA PF1 (1 UND) ESCALA 1/25 - BOVEDA PUERTA PF1 (1 UND) ESCALA 1/25 - CTO. DE COMPUTO ESC. 1/2.5 DETALLE C ESC. 1/2.5 DETALLE D EXTERIOR INTERIOR EXTERIOR INTERIOR DETALLE B ESCALA 1/2.5 DETALLE A ESCALA 1/2.5 X Z A B C D 5 5 5 5 * EXTERIOR INTERIOR DETALLE Z ESCALA 1/2.5 DETALLE X ESCALA 1/2.5 C' D ESC. 1/2.5 DETALLE C' ESC. 1/2.5 DETALLE D EXTERIOR INTERIOR CERCO INTERIOR PERIMETRICO "C" DE Fe 44x25mm CERCO INTERIOR PERIMETRICO "U" DE Fe 44x25mm REFUERZO EN "Z" e=2mm \A1;PLATINA HORIZONTAL DE Fe 1 \S1/2";"x2mm \A0;SOLDADA HACIA LOS LADOS A MARCO Y PLATINA VERTICAL A1 A2 A4 A5 VIDRIO CRUDO CON LAMINA DE SEGURIDAD SEGUN REQUERIMIENTO \W0.5;A13 ANCLAJE A LOSA / PARED O COLUMNA / PISO \W0.6;A12 ESTRUCTURA METALICA TUBO LAC 2"x2"x0.45"mm @0.60 min. AMBOS SENTIDOS CON UNA CAPA DE ZINCROMATO MALLA DE 1/2" EN RETICULA @0.15 min EN AMBOS SENTIDOS SOLDADA A ESTRUCTURA METALICA CON UNA CAPA DE ZINCROMATO \W0.6;A10 \W0.6;A11 TUBO DE Fe 2"x2"x2mm A9 PINTURA ESMALTE POLIURETANO COLOR SIMILAR A PARED \A1;PLATINA VERTICAL DE Fe 1\S1/2;" \A0;x 2mm SOLDADA A MARCO SUPERIOR , INFERIOR Y PERSIANAS HORIZONTALES A7 A8 TIRAFON 4" CON TARUGO DE MADERA O PLASTICO 4" @40cm A6 PLANCHA Fe e=2mm CE-SC60 689 CE-ND80R CIERRA PUERTAS SOBREPUESTO CERRADURA INGRESO ND 80R TUBULAR 626 A3 LEYENDA \A1;03 BISAGRAS DE Fe. 3.\S1/2;"x3.\S1/2;" SOLDADAS \W0.5;A14 5 4" 4" 2" 4" 4" x 1/8" TUBO Fe 4" x 2" x1/8" TUBO Fe A CORTE A ESCALA 1/5 Y ESMERILADA SOLDADURA CORRIDA 6 mm BILLA DE ACERO ELEVACION (PF2) ESCALA 1/25 ESCALA 1/2 ESCALA 1/2 4" 4" 2" ESCALA 1/5 PLANTA (PF2) 4" 4" 5 2" 5 2" 5 5 2" 5 5 5 5 5 5 5 5 5 5 5 5 5 5 A RAMPA MURO VEREDA 5 5 4" x 4" x 1/8" TUBO Fe 4" x 4" x 1/8" TUBO Fe 4" x 2" x 1/8" TUBO Fe 4" x 4" x 1/8" TUBO Fe 5 4" x 4" x 1/8" TUBO Fe MURO

Language	Spanish
Drawing Type	Detail
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Glass, Plastic, Steel, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, computer, construction, Construction detail, courts, DETAIL, details, door, doors, DWG, indicating, lifts, metal, room, vault
