Details Pat Connections DWG Detail for AutoCAD

Details Pat Connections DWG Detail for AutoCAD

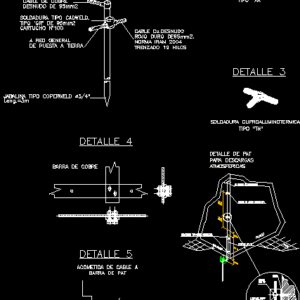

Details connection for cables and small plates

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Pat bar, Cable connection, detail, Bullet of, Compression acc, terminal, Bare copper cable, Drawn iron separator, Self drilling drill, Standard, Copper wire, General network, cartridge, Coperweld javelin, Grounding, Welding type cadweld., Type ‘gr’ de, Naked, kind, Cuproaluminotermica welding, Braided threads, Hard red, Naked wire, Cuproaluminotermica welding, Mechanical connector for, detail, copper bar, detail, Lead wire, detail, Main cable, Weldable electrode connection, Unrecorded land rod, Earth mesh, Pat detail, Of lightning rod system, floor, Pvc pipe, Floor level, wall, Galvanized steel staple, Galvanized omega type clamp, drill, wall, corrosion, naked, Copper wire, Lead sheet, To avoid, kind, Grampa, For downloads, Atmospheric

Raw text data extracted from CAD file:

BARRA DE PAT ACOMETIDA DE CABLE A DETALLE 5 BULON DE H G COMPRESION ACC d1/4'' W x 1 1/4'' TERMINAL A CABLE DE COBRE DESNUDO SEPARADOR DE HIERRO TREFILADO BROCA AUTOPERFORANTE NORMA IRAM 2004 CABLE DE COBRE A RED GENERAL CARTUCHO N°100 Long.=3m JABALINA TIPO COPERWELD d3/4" DE PUESTA A TIERRA SOLDADURA TIPO CADWELD. TIPO 'GR' DE 95mm2 DESNUDO DE 95mm2 TIPO "TA" TIPO "XA" SOLDADURA CUPROALUMINOTERMICA TRENZADO 19 HILOS ROJO DURO DE95mm2. CABLE Cu.DESNUDO SOLDADURA CUPROALUMINOTERMICA CONECTOR MECANICO PARA DETALLE 1 DETALLE 4 BARRA DE COBRE DETALLE 2 1 CABLE DE 95mm2 - PASANTE DETALLE 3 CABLE PRINCIPAL CONEXION SOLDABLE A ELECTRODO O VARILLA PARA TIERRAS SIN REGISTRO A MALLA DE TIERRA DETALLE DE PAT DE SISTEMA DE PARARRAYOS PISO 1.5 M (MAX.) (MAX.) 1.2 M CAÑO DE PVC d1" NIVEL DE PISO 0.3 M 3.0 M PARED GRAMPA DE ACERO GALVANIZADA ABRAZADERA TIPO OMEGA GALVANIZADA BROCA PARED CORROSION DESNUDO 50 mm2 CABLE COBRE LAMINA DE PLOMO PARA EVITAR LA TIPO "U" GRAMPA 0.2 M PARA DESCARGAS ATMOSFERICAS

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, cables, connection, connections, DETAIL, details, DWG, einrichtungen, facilities, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, plates, provision, small, wasser bestimmung, water
