Details Rain DWG Detail for AutoCAD

Details Rain DWG Detail for AutoCAD

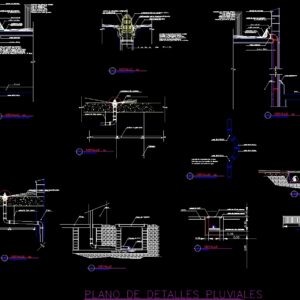

Details stormwater pipe connection on parapets and roof, pipe diameter indicating

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

recordable ceiling, basket of sediments in one, rain detail plan, Spatial ring piece for, Thread outlet for diam., waterproofing, roof strainer, omega type support, downpour, firm, manhole cover, angle, pvc pipe, sand, waterproofing attachment, pear type support, Wall, rail downpipe, elbow p.v.c., for the placement of the waterproofing, lateral outlet with thread for diam., with special anticorrosive paint, removable grid with special attachment, derie iron model, Strainer for helix mark, p.v.c., standard thread, Wall, downpour, recordable ceiling, column, roof strainer, pear type support, slab, from p.v.c., registry, mortar to give earring, standard thread, elbow p.v.c., Deviations in rainwater, the speed of the water flow., mts. with the purpose of diminishing, the deviations will meet each, asphalt, angle of, thickness grid, wire rod anchor, elbow p.v.c., elbow p.v.c., grid cut, Wall, coalfield of parapet, slab, p.v.c., constructive board, strainer for cast iron roof, with dome paint, strainer helvex model, waterproofing attachment, finished with aluminum paint., asfaltex layer, permafelt layer., asfaltex layer, inert earth filling., plasticem to seal cracks., emultex application, concrete crown, of cms., waterproofing, attachment for, removable grid, concrete block parapet, removable basket dome, of sediments, waterproofing, attachment for, waterproofing, removable grid, concrete block parapet, of cms., concrete crown, emultex application, plasticem to seal cracks., inert earth filling., asfaltex layer, permafelt layer., asfaltex layer, finished with aluminum paint.

Raw text data extracted from CAD file:

plafon registrable canastilla de sedimientos en una sola PLANO DE DETALLES PLUVIALES pieza removible, anillo espacial para la salida de rosca para tubo de 4" o 6" diam. colocacion de impermeabilizante COLADERA DE AZOTEA Soporte tipo omega BAJANTE PLUVIAL Firme Tapa de registro angulo Tuberia de PVC arena aditamento para impermeabilizante soporte tipo pera Muro BAJANTE DE COLADERA DE PRETIL codo 45, 4" P.V.C. f i r m e o para la colocacion del impermeabilizante salida lateral con rosca para tubo de 4" o 6" diam. fundido, con pintura especial anticorrosiva rejilla removible con aditamento especial derie 4950 , modelo 4954 de hierro Coladera para pretil marca helvex t u b o P.V.C. rosca estandar Muro BAJANTE PLUVIAL plafon registrable Columna COLADERA DE AZOTEA coladera de azotea soporte tipo pera losa t u b o de P.V.C. \A1;0.15 \A1;0.05 REGISTRO \A1;0.20 mortero para dar pendiente \A1;0.05 \A1;0.05 \A1;0.30 \A1;1.00 r e j i l l a \A1;0.20 rosca estandar codo 45, 4" P.V.C. codo 45, 4" P.V.C. DESVIOS EN BAJANTE PLUVIAL la velocidad del caudal de agua. 3.00 mts. con el proposito de disminuir Los desvios se encontraran a cada Asfalto angulo de 1"x1/2" rejilla de 1/2" de espesor ancla de alambron de 1/4" o codo 45, 4" P.V.C. o codo 45, 4" P.V.C. CORTE DE REJILLA Muro COALDERA DE PRETIL Losa t u b o P.V.C. junta constructiva Coladera para azotea de hierro fundido con pintura anticorrosiva, cupula y coladera Helvex modelo 444-x aditamento para impermeabilizante Acabado con pintura de aluminio. Capa de Asfaltex 500. Capa de Permafelt. Capa de Asfaltex 500. Relleno de tierra inerte. Plasticem para sellar grietas. aplicacion de Emultex y corona de concreto de 20x20x40 cms. impermeabilizante aditamento para rejilla removible m o r t e r o pretil de block de concreto cupula y canastilla removible de sedimentos impermeabilizante aditamento para impermeabilizante m o r t e r o rejilla removible pretil de block de concreto de 20x20x40 cms. corona de concreto aplicacion de Emultex y Plasticem para sellar grietas. Relleno de tierra inerte. Capa de Asfaltex 500. Capa de Permafelt. Capa de Asfaltex 500. Acabado con pintura de aluminio.

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Plastic
Measurement Units
Footprint Area
Building Features
Tags	abwasserkanal, autocad, banhos, casa de banho, connection, DETAIL, details, diameter, DWG, fosse septique, indicating, mictório, pipe, plumbing, rain, roof, sanitär, Sanitary, sewer, stormwater, toilet, toilette, toilettes, urinal, urinoir, wasser klosett, WC
