Dilation Board DWG Block for AutoCAD

Dilation Board DWG Block for AutoCAD

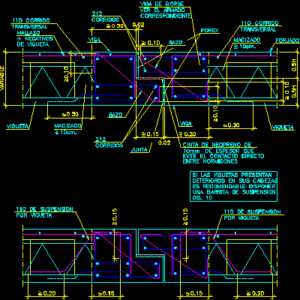

Dilation board on slabs

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

Beam edge, See the armed, Corresponding, Twist, Variable, Run, Massive, Together, Mallazo, Negative, Of beam, Transversal, Run, Run, Beam, Neoprene ribbon from, Thick that, Avoid direct contact, Between concrete, Beam, Twist, Transversal, Run, Massive, Porex, Forged, By beam, Of suspension, By beam, Of suspension, Of it, A suspension bar, It is advisable to dispose, Deteriorations in their heads, If the beams present

Raw text data extracted from CAD file:

0.15 VIGA DE BORDE VER EL ARMADO CORRESPONDIENTE 0.10 VIGUETA VARIABLE 2d12 CORRIDOS MACIZADO 10cm. JUNTA 0.30 0.10 d8A20 MALLAZO + NEGATIVOS DE VIGUETA TRANSVERSAL 1d1O CORRIDO CORRIDOS 2d12 VIGA 0.20 0.02 0.5H CINTA DE NEOPRENO DE 10mm. DE ESPESOR QUE EVITE EL CONTACTO DIRECTO ENTRE HORMIGONES 0.02 0.20 VIGA 0.10 0.30 VIGUETA 0.5H 0.10 TRANSVERSAL 1d1O CORRIDO 10cm. MACIZADO d8A20 POREX FORJADO POR VIGUETA 1d10 DE SUSPENSION 0.20 0.15 POR VIGUETA 1d10 DE SUSPENSION 0.15 0.20 0.15 0.15 DEL d10 UNA BARRITA DE SUSPENSION ES RECOMENDABLE DISPONER DETERIOROS EN SUS CABEZAS SI LAS VIGUETAS PRESENTAN

Language	N/A
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, block, board, cover, dach, dilation, DWG, hangar, lagerschuppen, roof, shed, slabs, structure, terrasse, toit
