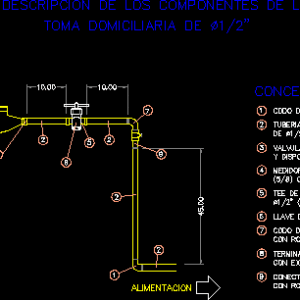

Detail domiciliary intake for projects in CD.DEE Chetumal ;Q.ROO

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

feeding, copper elbow, Rigid copper pipe type, NPT threaded male valve, card holder, connections of, badger meter brand meter, center tee internal thread of, copper nose wrench, weldable copper elbow, with external thread npt at one end, with soldable end thread npt, terminal for meter, with external thread npt, weldable copper connector, description of the components of the, domiciliary taking of, concept, institute of promotion housing regularization of the property of the state of quintana roo, infovir

Raw text data extracted from CAD file:

ALIMENTACION 1 2 3 7 4 6 7 5 2 1 2 8 9 9 2 2 2 \A1;10.00 \A1;10.00 \A1;10.00 \A1;45.00 \A1;45.00 2 CODO DE COBRE DE 90°x d1/2" (NACOBRE) 1 TUBERIA DE COBRE RIGIDO TIPO "M" 2 DE d1/2"x45cm (NACOBRE) VALVULA MACHO DE d1/2" CON ROSCA NPT Y DISPOSITVO PORTACANDADO (NACOBRE) 3 (5/8) CONEXIONES DE 13mm MEDIDOR DE 15mm MARCA BADGER METER 4 TEE DE CENTRO ROSCA INTERIOR DE d1/2" (NACOBRE) 5 LLAVE DE NARIZ DE d1/2" DE COBRE 6 CODO DE COBRE SOLDABLE DE d1/2"x90° CON ROSCA EXT. NPT EN UN EXTREMO (NACOBRE) 7 CON EXTREMO SOLDABLE Y ROSCA NPT TERMINAL PARA MEDIDOR DE d1/2" 8 CON ROSCA EXT. NPT (NACOBRE) CONECTOR DE COBRE SOLDABLE DE d1/2" 9 DESCRIPCION DE LOS COMPONENTES DE LA TOMA DOMICILIARIA DE d1/2" CONCEPTO INSTITUTO DE FOMENTO A LA VIVIENDA Y REGULARIZACION DE LA PROPIEDAD DEL ESTADO DE QUINTANA ROO INFOVIR
