Drain Floor Detail DWG Section for AutoCAD

Drain Floor Detail DWG Section for AutoCAD

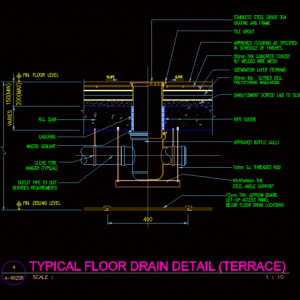

Section Floor Drain

Drawing labels, details, and other text information extracted from the CAD file:

g.i. threaded rod, below floor drain locations, stainless steel grade, hanger, services requirements, fin. ceiling level, outlet pipe to suit, mastic sealant, fin. floor level, clevis type, varies, r.c. slab, caulking, steel angle support, thk, thk. gypsum board, access panel, tile grout, pipe sleeve, approved bottle gully, grating and frame, typical floor drain detail, scale, thk. closed cell, polystyrene insulation., separation layer, thk concrete screed, welded wire mesh, approved flooring as specified, in schedule of finishes., screed laid to slope., slope

Raw text data extracted from CAD file:

\A1;VARIES \A1;400 10mm G.I. THREADED ROD BELOW FLOOR DRAIN LOCATIONS STAINLESS STEEL GRADE 304 HANGER (TYPICAL) SERVICES REQUIREMENTS FIN. CEILING LEVEL OUTLET PIPE TO SUIT MASTIC SEALANT FIN. FLOOR LEVEL CLEVIS TYPE VARIES R.C. SLAB 1300 CAULKING 400 STEEL ANGLE SUPPORT 40x40x4mm THK 12mm THK. GYPSUM BOARD LIFT-UP ACCESS PANEL TILE GROUT PIPE SLEEVE APPROVED BOTTLE GULLY GRATING AND FRAME TYPICAL FLOOR DRAIN DETAIL (TERRACE) SCALE : 1 : 10 4 A-902SR 50mm thk. CLOSED CELL POLYSTYRENE INSULATION. SEPARATION LAYER (TERRAM) 50mm THK CONCRETE SCREED W/ WELDED WIRE MESH APPROVED FLOORING AS SPECIFIED IN SCHEDULE OF FINISHES. 150(MIN) 200(MAX) SAND/CEMENT SCREED LAID TO SLOPE. SLOPE SLOPE

Language	English
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	abwasserkanal, autocad, banhos, casa de banho, DETAIL, drain, DWG, floor, fosse septique, mictório, plumbing, sanitär, Sanitary, section, sewer, toilet, toilette, toilettes, urinal, urinoir, wasser klosett, WC
