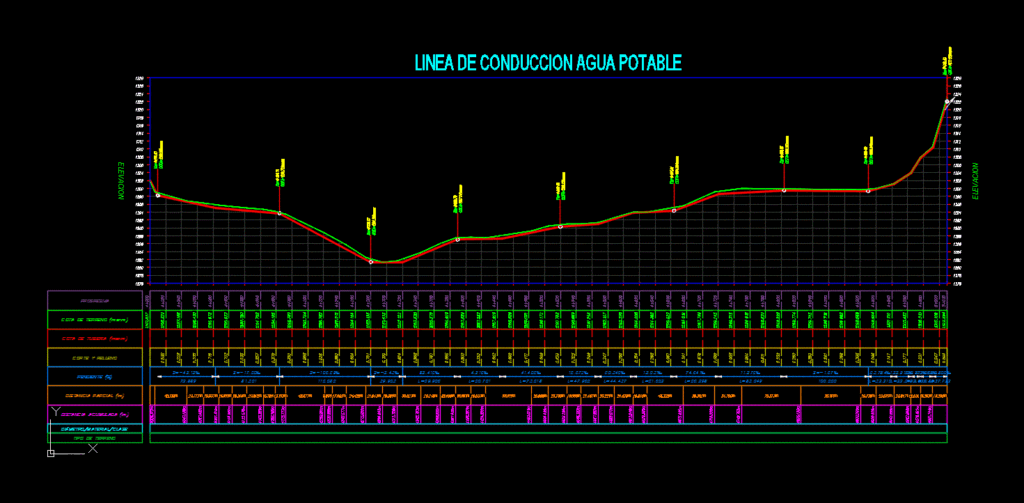

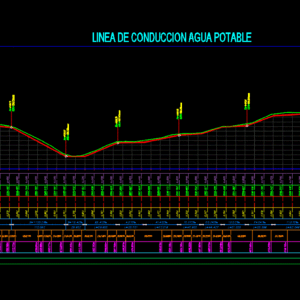

Drivetrain water plan and profile; uptake; existing and projected reservoir; airline passes. Drinking Water Project Caserio Las Cidras – Copy – San Ignacio.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

legend, Major level curves, Minor level curves, Posts, seasons, Polygonal vertex, channel, tree, Existing mailbox, Sideway of conc. existing, Existing track, households, axis, Curve number, Critical edge, Projected wall, mileage, Sewers, Location, Quota, East, north, vertex, Utm wgs coordinates, Polygonal support, Dew, Magaly, Edith, legend, Water outcrop, sewer, Bench mark, Drainage box, Telephone mailbox, Calicata, Dpl test, For lightning, lamppost, Medium voltage post, Existing reservoir, Sub station, Telephone pole, Polygonal vertex, High voltage pole, chimney, pithead, Master curves, Secondary curves, access, wire fence, Stone fence, Powerline, register machine, Rocky outcrop, antenna, Mining unit, bridge, highway, catchment, Quota msnm km, legend, Symbol description, Drain pvc pipe, Water pvc pipe, water well, Residential lot with sewage system, Magnetic north, latrine, Contour lines, water well, latrine, ravine, highway, legend, Symbol description, Pvc pipe for driving, Pvc pipe of adduction network, Pvc pipe distribution network, Drain pvc pipe, Camera breaks type pressure, purge valve, catchment, air valve, legend, Reservoir, Air pass, Quota msnm km, catchment, Quota msnm km, Air pass, Quota msnm km, Air pass, Quota msnm km, Air pass, Quota msnm km, Existing capturing, Quota msnm km, Existing reservoir, Quota msnm km, Existing reservoir, Quota msnm km, natural terrain, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, Pvc pipe mm, normal, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, natural terrain, Pvc pipe mm, normal, Pvc pipe mm, normal, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, natural terrain, Pvc pipe mm, normal, Projected reservoir, Quota msnm km, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, natural terrain, Existing reservoir, Quota msnm km, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, Pvc pipe, Diameter: mm, natural terrain, Existing reservoir, Quota msnm km, elevation, Drinking water pipeline, Terrain quota, Pipe dimension, pending, Partial distance, Accumulated distance, Type of terrain, Street name, elevation, Drinking water pipeline, Terrain quota, Pipe dimension, filling, pending, Partial distance, Accumulated distance, Type of terrain, elevation, Drinking water pipeline, Terrain quota, Pipe dimension, filling, pending, Partial distance, Accumulated distance, Type of terrain, elevation, Drinking water pipeline, Terrain quota, Pipe dimension, filling, pending, Partial distance, Accumulated distance, Type of terrain, elevation, Drinking water pipeline, Terrain quota, Pipe dimension, filling, pending, Partial distance, Accumulated distance, Type of terrain

Raw text data extracted from CAD file:

P PR T M N \W0.38921; AB BA \W0.38921; AB BA J LEYENDA Curvas de Nivel Mayores Curvas de Nivel Menores Postes BM´s y Estaciones Vertice Poligino Canal Árbol Buzón Existente Vereda de Conc. Existente Trocha Existente Viviendas Eje 15 Número de Curva Borde Crítico Muro proyectado KM 1 Kilometraje Alcantarillas UBICACION 1:25 000 COTA ESTE NORTE VERTICE COORDENADAS UTM WGS 84 POLIGONAL DE APOYO ROCIO 764 733,130 9 252 939,980 MAGALY 763 715,534 9 252 846,277 EDITH 764 003,674 9 252 241,553 3 915,841 3 753,621 3 868,911 LEYENDA AFLORAMIENTO DE AGUA ALCANTARILLA BENCH MARK BUZON DE DESAGUE BUZON DE TELEFONO CALICATA ENSAYO DPL PARA RAYO POSTE DE LUZ POSTE DE MEDIA TENSION RESERVORIO EXISTENTE SUB ESTACION POSTE DE TELEFONO VERTICE DE POLIGONAL POSTE DE ALTA TENSION CHIMENEA BOCAMINA 4 305 CURVAS MAESTRAS CURVAS SECUNDARIAS A-1 ACCESO CERCO DE ALAMBRE CERCO DE PIEDRA LINEA ELECTRICA CAJA DE REGISTRO 12 x 12 CAJA DE REGISTRO 12 x 24 AFLORAMIENTO ROCOSO ANTENA UNIDAD MINERA Puente CARRETERA CAPTACION COTA : 1902.712 msnm KM : 0+000.00 \W3.48952; LEYENDA N° 03 SÍMBOLO DESCRIPCIÓN \W5.12568; TUBERIA DE PVC \W5.12568; DESAGUE Ø 2" \W5.11912; TUBERIA DE PVC \W5.11912; AGUA Ø \W9.35402; POZO \W3.49886; LOTE HABITACIONADO \W3.28457; CON DOMICILIARIA DE \W3.28457; ALCANTARILLADO \W4.45246; NORTE MAGNETICO \W8.44926; LETRINA \W4.54450; CURVAS DE NIVEL \W0.32265; POZO LETRINA \W0.29548; 01 \W5.54769; RIO, QUEBRADA \W7.23817; CARRETERA \W3.63238; LEYENDA N° 01 SÍMBOLO DESCRIPCIÓN \W5.12568; TUBERIA DE PVC \W5.12568; LENEA DE CONDUCCION Ø \W5.11912; TUBERIA DE PVC \W5.11912; RED DE ADUCCION Ø \W5.11912; TUBERIA DE PVC \W5.11912; RED DE DISTRIBUCION Ø \W5.12568; TUBERIA DE PVC \W5.12568; DESAGUE Ø 2" CRP-7 \W1.88759; CAMARA ROMPE PRESION \W8.43520; TIPO 7 \W3.98282; VALVULA DE PURGA \W7.48282; CAPTACION \W4.88759; VALVULA DE AIRE \W3.48952; LEYENDA N° 02 \W6.86378; RESERVORIO \W0.30578; R \W0.30578; R PASE AEREO COTA : 1851.911 msnm KM : 0+500.260 CAPTACION COTA : 1902.712 msnm KM : 0+000.00 PASE AEREO COTA : 1774.286 msnm KM : 0+659.150 PASE AEREO COTA : 1774.286 msnm KM : 0+659.150 PASE AEREO COTA : 1851.911 msnm KM : 0+500.260 CAPTACION EXISTENTE COTA : 1796.000 msnm KM : 0+590.142 \W2.79456; R RESERVORIO EXISTENTE COTA : 1775.168 msnm KM : 0+800.150 RESERVORIO EXISTENTE COTA : 1775.168 msnm KM : 0+803.240 TERRENO NATURAL TERRENO NATURAL TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TUBO PVC d 150 mm \c4758291;TERRENO NORMAL TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TERRENO NATURAL TERRENO NATURAL TERRENO NATURAL TUBO PVC d 150 mm \c4758291;TERRENO NORMAL TUBO PVC d 150 mm \c4758291;TERRENO NORMAL TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TERRENO NATURAL TERRENO NATURAL TUBO PVC d 150 mm \c4758291;TERRENO NORMAL \W0.37765; R RESERVORIO PROYECTADO COTA : 1373.918 msnm KM : 5+311 \W0.87259; R TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TERRENO NATURAL TERRENO NATURAL TERRENO NATURAL TERRENO NATURAL RESERVORIO EXISTENTE COTA : 1775.168 msnm KM : 0+803.240 TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TUBERIA PVC DIAMETRO: 150 mm TERRENO NATURAL RESERVORIO EXISTENTE COTA : 1373.918 msnm KM : 5+311 0+000 0+100 0+200 0+300 0+400 0+500 0+600 0+700 0+800 0+900 1+000 1+100 1+200 1+300 1+400 1+500 1+600 1+700 1+800 1+900 2+000 2+100 2+200 2+300 2+400 2+500 2+600 2+700 2+800 2+900 3+000 3+100 3+200 3+300 3+400 3+500 3+600 3+700 3+800 3+900 4+000 4+100 4+200 4+300 4+400 4+500 4+600 4+700 4+800 4+900 5+000 5+100 5+200 5+300 5+311 ELEVACION ELEVACION LINEA DE CONDUCCION AGUA POTABLE 1276 1278 1280 1282 1284 1286 1288 1290 1292 1294 1296 1298 1300 1302 1304 1306 1308 1310 1312 1314 1316 1318 1320 1322 1324 1326 1328 1330 1332 1334 1336 1338 1340 1342 1344 1346 1348 1350 1352 1354 1356 1358 1360 1362 1364 1366 1368 1370 1372 1374 1376 1378 1380 1382 1384 1386 1388 1390 1392 1394 1396 1398 1400 1402 1404 1406 1408 1410 1412 1414 1416 1418 1420 1422 1424 1426 1428 1430 1432 1434 1436 1438 1440 1442 1444 1446 1448 1450 1452 1454 1456 1458 1460 1462 1464 1466 1468 1470 1472 1474 1476 1478 1480 1482 1484 1486 1488 1490 1492 1494 1496 1498 1500 1502 1504 1506 1508 1510 1512 1514 1516 1518 1520 1522 1524 1526 1528 1530 1532 1534 1536 1538 1540 1542 1544 1546 1548 1550 1552 1554 1556 1558 1560 1562 1564 1566 1568 1570 1572 1574 1576 1578 1580 1582 1584 1586 1588 1590 1592 1594 1596 1598 1600 1602 1604 1606 1608 1610 1612 1614 1616 1618 1620 1622 1624 1626 1628 1630 1632 1634 1636 1638 1640 1642 1644 1646 1648 1650 1652 1654 1656 1658 1660 1662 1664 1666 1668 1670 1672 1674 1676 1678 1680 1682 1684 1686 1688 1690 1692 1694 1696 1698 1700 1702 1704 1706 1708 1710 1712 1714 1716 1718 1720 1722 1724 1726 1728 1730 1732 1734 1736 1738 1740 1742 1744 1746 1748 1750 1752 1754 1756 1758 1760 1762 1764 1766 1768 1770 1772 1774 1776 1778 1780 1782 1784 1786 1788 1790 1792 1794 1796 1798 1800 1802 1804 1806 1808 1810 1812 1814 1816 1818 1820 1822 1824 1826 1828 1830 1832 1834 1836 1838 1840 1842 1844 1846 1848 1850 1852 1854 1856 1858 1860 1862 1864 1866 1868 1870 1872 1874 1876 1878 1880 1882 1884 1886 1888 1890 1892 1894 1896 1898 1900 1902 1904 1906 1276 1278 1280 1282 1284 1286 1288 1290 1292 1294 1296 1298 1300 1302 1304 1306 1308 1310 1312 1314 1316 1318 1320 1322 1324 1326 1328 1330 1332 1334 1336 1338 1340 1342 1344 1346 1348 1350 1352 1354 1356 1358 1360 1362 1364 1366 1368 1370 1372 1374 1376 1378 1380 1382 1384 1386 1388 1390 1392 1394 1396 1398 1400 1402 1404 1406 1408 1410 1412 1414 1416 1418 1420 1422 1424 1426 1428 1430 1432 1434 1436 1438 1440 1442 1444 1446 1448 1450 1452 1454 1456 1458 1460 1462 1464 1466 1468 1470 1472 1474 1476 1478 1480 1482 1484 1486 1488 1490 1492 1494 1496 1498 1500 1502 1504 1506 1508 1510 1512 1514 1516 1518 1520 1522 1524 1526 1528 1530 1532 1534 1536 1538 1540 1542 1544 1546 1548 1550 1552 1554 1556 1558 1560 1562 1564 1566 1568 1570 1572 1574 1576 1578 1580 1582 1584 1586 1588 1590 1592 1594 1596 1598 1600 1602 1604 1606 1608 1610 1612 1614 1616 1618 1620 1622 1624 1626 1628 1630 1632 1634 1636 1638 1640 1642 1644 1646 1648 1650 1652 1654 1656 1658 1660 1662 1664 1666 1668 1670 1672 1674 1676 1678 1680 1682 1684 1686 1688 1690 1692 1694 1696 1698 1700 1702 1704 1706 1708 1710 1712 1714 1716 1718 1720 1722 1724 1726 1728 1730 1732 1734 1736 1738 1740 1742 1744 1746 1748 1750 1752 1754 1756 1758 1760 1762 1764 1766 1768 1770 1772 1774 1776 1778 1780 1782 1784 1786 1788 1790 1792 1794 1796 1798 1800 1802 1804 1806 1808 1810 1812 1814 1816 1818 1820 1822 1824 1826 1828 1830 1832 1834 1836 1838 1840 1842 1844 1846 1848 1850 1852 1854 1856 1858 1860 1862 1864 1866 1868 1870 1872 1874 1876 1878 1880 1882 1884 1886 1888 1890 1892 1894 1896 1898 1900 1902 1904 1906 \c8339311;PROGRESIVA COTA DE TERRENO (msnm) COTA DE TUBERIA (msnm) PENDIENTE (%) DISTANCIA PARCIAL (m) DISTANCIA ACUMULADA (m) DIÁMETRO/MATERIAL/CLASE TIPO DE TERRENO NOMBRE DE CALLE \c8339311;0+000 \c8339311;0+020 \c8339311;0+040 \c8339311;0+060 \c8339311;0+080 \c8339311;0+100 \c8339311;0+120 \c8339311;0+140 \c8339311;0+160 \c8339311;0+180 \c8339311;0+200 \c8339311;0+220 \c8339311;0+240 \c8339311;0+260 \c8339311;0+280 \c8339311;0+300 \c8339311;0+320 \c8339311;0+340 \c8339311;0+360 \c8339311;0+380 \c8339311;0+400 \c8339311;0+420 \c8339311;0+440 \c8339311;0+460 \c8339311;0+480 \c8339311;0+500 \c8339311;0+520 \c8339311;0+540 \c8339311;0+560 \c8339311;0+580 \c8339311;0+600 \c8339311;0+620 \c8339311;0+640 \c8339311;0+660 \c8339311;0+680 \c8339311;0+700 \c8339311;0+720 \c8339311;0+740 \c8339311;0+760 \c8339311;0+780 \c8339311;0+800 \c8339311;0+820 \c8339311;0+840 \c8339311;0+860 \c8339311;0+880 \c8339311;0+900 \c8339311;0+920 \c8339311;0+940 \c8339311;0+960 \c8339311;0+980 \c8339311;1+000 \c8339311;1+020 \c8339311;1+040 \c8339311;1+060 \c8339311;1+080 \c8339311;1+100 \c8339311;1+120 \c8339311;1+140 \c8339311;1+160 \c8339311;1+180 \c8339311;1+200 \c8339311;1+220 \c8339311;1+240 \c8339311;1+260 \c8339311;1+280 \c8339311;1+300 \c8339311;1+320 \c8339311;1+340 \c8339311;1+360 \c8339311;1+380 \c8339311;1+400 \c8339311;1+420 \c8339311;1+440 \c8339311;1+460 \c8339311;1+480 \c8339311;1+500 \c8339311;1+520 \c8339311;1+540 \c8339311;1+560 \c8339311;1+580 \c8339311;1+600 \c8339311;1+620 \c8339311;1+640 \c8339311;1+660 \c8339311;1+680 \c8339311;1+700 \c8339311;1+720 \c8339311;1+740 \c8339311;1+760 \c8339311;1+780 \c8339311;1+800 \c8339311;1+820 \c8339311;1+840 \c8339311;1+860 \c8339311;1+880 \c8339311;1+900 \c8339311;1+920 \c8339311;1+940 \c8339311;1+960 \c8339311;1+980 \c8339311;2+000 \c8339311;2+020 \c8339311;2+040 \c8339311;2+060 \c8339311;2+080 \c8339311;2+100 \c8339311;2+120 \c8339311;2+140 \c8339311;2+160 \c8339311;2+180 \c8339311;2+200 \c8339311;2+220 \c8339311;2+240 \c8339311;2+260 \c8339311;2+280 \c8339311;2+300 \c8339311;2+320 \c8339311;2+340 \c8339311;2+360 \c8339311;2+380 \c8339311;2+400 \c8339311;2+420 \c8339311;2+440 \c8339311;2+460 \c8339311;2+480 \c8339311;2+500 \c8339311;2+520 \c8339311;2+540 \c8339311;2+560 \c8339311;2+580 \c8339311;2+600 \c8339311;2+620 \c8339311;2+640 \c8339311;2+660 \c8339311;2+680 \c8339311;2+700 \c8339311;2+720 \c8339311;2+740 \c8339311;2+760 \c8339311;2+780 \c8339311;2+800 \c8339311;2+820 \c8339311;2+840 \c8339311;2+860 \c8339311;2+880 \c8339311;2+900 \c8339311;2+920 \c8339311;2+940 \c8339311;2+960 \c8339311;2+980 \c8339311;3+000 \c8339311;3+020 \c8339311;3+040 \c8339311;3+060 \c8339311;3+080 \c8339311;3+100 \c8339311;3+120 \c8339311;3+140 \c8339311;3+160 \c8339311;3+180 \c8339311;3+200 \c8339311;3+220 \c8339311;3+240 \c8339311;3+260 \c8339311;3+280 \c8339311;3+300 \c8339311;3+320 \c8339311;3+340 \c8339311;3+360 \c8339311;3+380 \c8339311;3+400 \c8339311;3+420 \c8339311;3+440 \c8339311;3+460 \c8339311;3+480 \c8339311;3+500 \c8339311;3+520 \c8339311;3+540 \c8339311;3+560 \c8339311;3+580 \c8339311;3+600 \c8339311;3+620 \c8339311;3+640 \c8339311;3+660 \c8339311;3+680 \c8339311;3+700 \c8339311;3+720 \c8339311;3+740 \c8339311;3+760 \c8339311;3+780 \c8339311;3+800 \c8339311;3+820 \c8339311;3+840 \c8339311;3+860 \c8339311;3+880 \c8339311;3+900 \c8339311;3+920 \c8339311;3+940 \c8339311;3+960 \c8339311;3+980 \c8339311;4+000 \c8339311;4+020 \c8339311;4+040 \c8339311;4+060 \c8339311;4+080 \c8339311;4+100 \c8339311;4+120 \c8339311;4+140 \c8339311;4+160 \c8339311;4+180 \c8339311;4+200 \c8339311;4+220 \c8339311;4+240 \c8339311;4+260 \c8339311;4+280 \c8339311;4+300 \c8339311;4+320 \c8339311;4+340 \c8339311;4+360 \c8339311;4+380 \c8339311;4+400 \c8339311;4+420 \c8339311;4+440 \c8339311;4+460 \c8339311;4+480 \c8339311;4+500 \c8339311;4+520 \c8339311;4+540 \c8339311;4+560 \c8339311;4+580 \c8339311;4+600 \c8339311;4+620 \c8339311;4+640 \c8339311;4+660 \c8339311;4+680 \c8339311;4+700 \c8339311;4+720 \c8339311;4+740 \c8339311;4+760 \c8339311;4+780 \c8339311;4+800 \c8339311;4+820 \c8339311;4+840 \c8339311;4+860 \c8339311;4+880 \c8339311;4+900 \c8339311;4+920 \c8339311;4+940 \c8339311;4+960 \c8339311;4+980 \c8339311;5+000 \c8339311;5+020 \c8339311;5+040 \c8339311;5+060 \c8339311;5+080 \c8339311;5+100 \c8339311;5+120 \c8339311;5+140 \c8339311;5+160 \c8339311;5+180 \c8339311;5+200 \c8339311;5+220 \c8339311;5+240 \c8339311;5+260 \c8339311;5+280 \c8339311;5+300 \c8339311;5+311 1903.312 1899.443 1896.883 1888.127 1883.248 1880.621 1879.121 1877.727 1877.413 1876.642 1875.192 1873.741 1872.087 1870.473 1869.516 1868.288 1866.805 1865.387 1863.588 1862.479 1861.087 1857.481 1856.081 1854.680 1853.280 1851.929 1841.640 1828.048 1814.456 1800.863 1787.271 1776.661 1775.272 1774.235 1773.407 1772.579 1772.765 1773.734 1774.695 1775.248 1774.849 1774.351 1768.606 1766.209 1764.545 1758.003 1751.144 1743.191 1737.566 1725.890 1717.464 1711.693 1707.092 1705.313 1703.662 1702.059 1699.799 1697.051 1695.881 1693.348 1690.761 1688.183 1685.609 1683.250 1678.615 1674.732 1668.937 1668.425 1667.790 1666.569 1665.360 1657.545 1646.453 1641.443 1635.574 1630.716 1627.853 1626.260 1619.171 1611.681 1608.188 1604.873 1600.670 1596.131 1592.365 1588.622 1586.000 1586.000 1585.978 1585.428 1585.000 1585.000 1582.319 1581.181 1575.328 1570.865 1568.803 1566.966 1566.139 1565.264 1564.692 1564.175 1563.130 1562.273 1562.161 1561.566 1560.109 1558.945 1558.160 1556.455 1555.115 1556.782 1556.895 1555.303 1555.105 1556.223 1557.043 1556.998 1558.086 1558.887 1558.033 1558.722 1559.402 1560.000 1560.000 1559.565 1558.769 1558.331 1558.952 1559.644 1560.239 1560.728 1560.963 1559.670 1559.000 1559.942 1560.003 1558.839 1558.930 1557.733 1557.362 1557.698 1558.930 1558.425 1556.333 1553.425 1552.001 1550.535 1548.975 1546.204 1545.251 1543.294 1542.190 1539.885 1538.443 1537.908 1537.668 1536.457 1533.403 1530.867 1527.907 1525.786 1523.336 1521.744 1520.793 1519.040 1514.675 1511.181 1507.687 1505.219 1502.751 1499.871 1496.112 1492.961 1487.942 1485.254 1479.878 1475.266 1470.613 1466.368 1461.366 1454.634 1444.458 1433.151 1414.305 1402.650 1392.524 1383.704 1376.795 1372.113 1366.770 1361.653 1358.681 1355.466 1349.991 1344.517 1333.685 1325.603 1318.542 1310.473 1301.837 1298.320 1297.168 1296.435 1295.973 1295.537 1295.120 1294.793 1294.165 1292.780 1290.784 1288.787 1286.615 1284.164 1282.133 1281.433 1282.122 1283.535 1285.376 1286.929 1287.589 1287.527 1287.920 1288.506 1289.091 1290.172 1290.753 1290.969 1291.256 1292.157 1293.296 1294.008 1294.393 1295.027 1295.918 1297.749 1299.243 1299.713 1299.918 1299.870 1299.822 1299.774 1299.743 1299.718 1299.693 1299.668 1299.984 1301.110 1303.452 1308.510 1316.109 1325.862 1330.269 1333.040 1337.121 1341.202 1345.270 1348.949 1350.350 1354.075 1357.800 1361.808 1366.377 1370.656 1374.210 1373.863 1903.312 1899.443 1896.883 1888.127 1883.248 1880.621 1879.121 1877.727 1877.413 1876.642 1875.192 1873.741 1872.087 1870.473 1869.516 1868.288 1866.805 1865.387 1863.588 1862.479 1861.087 1857.481 1856.081 1854.680 1853.280 1851.929 1841.640 1828.048 1814.456 1800.863 1787.271 1776.661 1775.272 1774.235 1773.407 1772.579 1772.765 1773.734 1774.695 1775.248 1774.849 1774.351 1768.606 1766.209 1764.545 1758.003 1751.144 1743.191 1737.566 1725.890 1717.464 1711.693 1707.092 1705.313 1703.662 1702.059 1699.799 1697.051 1695.881 1693.348 1690.761 1688.183 1685.609 1683.250 1678.615 1674.732 1668.937 1668.425 1667.790 1666.569 1665.360 1657.545 1646.453 1641.443 1635.574 1630.716 1627.853 1626.260 1619.171 1611.681 1608.188 1604.873 1600.670 1596.131 1592.365 1588.622 1586.000 1586.000 1585.978 1585.428 1585.000 1585.000 1582.319 1581.181 1575.328 1570.865 1568.803 1566.966 1566.139 1565.264 1564.692 1564.175 1563.130 1562.273 1562.161 1561.566 1560.109 1558.945 1558.160 1556.455 1555.115 1556.782 1556.895 1555.303 1555.105 1556.223 1557.043 1556.998 1558.086 1558.887 1558.033 1558.722 1559.402 1560.000 1560.000 1559.565 1558.769 1558.331 1558.952 1559.644 1560.239 1560.728 1560.963 1559.670 1559.000 1559.942 1560.003 1558.839 1558.930 1557.733 1557.362 1557.698 1558.930 1558.425 1556.333 1553.425 1552.001 1550.535 1548.975 1546.204 1545.251 1543.294 1542.190 1539.885 1538.443 1537.908 1537.668 1536.457 1533.403 1530.867 1527.907 1525.786 1523.336 1521.744 1520.793 1519.040 1514.675 1511.181 1507.687 1505.219 1502.751 1499.871 1496.112 1492.961 1487.942 1485.254 1479.878 1475.266 1470.613 1466.368 1461.366 1454.634 1444.458 1433.151 1414.305 1402.650 1392.524 1383.704 1376.795 1372.113 1366.770 1361.653 1358.681 1355.466 1349.991 1344.517 1333.685 1325.603 1318.542 1310.473 1301.837 1298.320 1297.168 1296.435 1295.973 1295.537 1295.120 1294.793 1294.165 1292.780 1290.784 1288.787 1286.615 1284.164 1282.133 1281.433 1282.122 1283.535 1285.376 1286.929 1287.589 1287.527 1287.920 1288.506 1289.091 1290.172 1290.753 1290.969 1291.256 1292.157 1293.296 1294.008 1294.393 1295.027 1295.918 1297.749 1299.243 1299.713 1299.918 1299.870 1299.822 1299.774 1299.743 1299.718 1299.693 1299.668 1299.984 1301.110 1303.452 1308.510 1316.109 1325.862 1330.269 1333.040 1337.121 1341.202 1345.270 1348.949 1350.350 1354.075 1357.800 1361.808 1366.377 1370.656 1374.210 1373.863 17.289\Fromans.shx|c0;m 25.064\Fromans.shx|c0;m 24.120\Fromans.shx|c0;m 34.190\Fromans.shx|c0;m 38.166\Fromans.shx|c0;m 33.133\Fromans.shx|c0;m 47.993\Fromans.shx|c0;m 38.860\Fromans.shx|c0;m 31.978\Fromans.shx|c0;m 25.845\Fromans.shx|c0;m 17.257\Fromans.shx|c0;m 19.925\Fromans.shx|c0;m 15.000\Fromans.shx|c0;m 21.471\Fromans.shx|c0;m 21.260\Fromans.shx|c0;m 72.450\Fromans.shx|c0;m 15.960\Fromans.shx|c0;m 15.792\Fromans.shx|c0;m 99.359\Fromans.shx|c0;m 32.311\Fromans.shx|c0;m 55.203\Fromans.shx|c0;m 11.108\Fromans.shx|c0;m 12.438\Fromans.shx|c0;m 29.259\Fromans.shx|c0;m 81.500\Fromans.shx|c0;m 25.834\Fromans.shx|c0;m 14.758\Fromans.shx|c0;m 24.487\Fromans.shx|c0;m 16.125\Fromans.shx|c0;m 15.264\Fromans.shx|c0;m 18.248\Fromans.shx|c0;m 21.039\Fromans.shx|c0;m 12.947\Fromans.shx|c0;m 13.653\Fromans.shx|c0;m 10.014\Fromans.shx|c0;m 10.506\Fromans.shx|c0;m 8.869\Fromans.shx|c0;m 6.617\Fromans.shx|c0;m 30.081\Fromans.shx|c0;m 43.754\Fromans.shx|c0;m 30.045\Fromans.shx|c0;m 9.879\Fromans.shx|c0;m 9.347\Fromans.shx|c0;m 5.850\Fromans.shx|c0;m 3.763\Fromans.shx|c0;m 37.877\Fromans.shx|c0;m 46.615\Fromans.shx|c0;m 10.000\Fromans.shx|c0;m 16.401\Fromans.shx|c0;m 8.544\Fromans.shx|c0;m 19.799\Fromans.shx|c0;m 10.296\Fromans.shx|c0;m 39.082\Fromans.shx|c0;m 16.041\Fromans.shx|c0;m 17.027\Fromans.shx|c0;m 16.099\Fromans.shx|c0;m 19.060\Fromans.shx|c0;m 21.271\Fromans.shx|c0;m 17.829\Fromans.shx|c0;m 14.765\Fromans.shx|c0;m 9.055\Fromans.shx|c0;m 10.296\Fromans.shx|c0;m 20.396\Fromans.shx|c0;m 10.440\Fromans.shx|c0;m 15.000\Fromans.shx|c0;m 8.544\Fromans.shx|c0;m 34.713\Fromans.shx|c0;m 15.811\Fromans.shx|c0;m 16.401\Fromans.shx|c0;m 14.866\Fromans.shx|c0;m 13.000\Fromans.shx|c0;m 13.342\Fromans.shx|c0;m 48.083\Fromans.shx|c0;m 10.000\Fromans.shx|c0;m 12.369\Fromans.shx|c0;m 4.123\Fromans.shx|c0;m 10.000\Fromans.shx|c0;m 14.036\Fromans.shx|c0;m 36.401\Fromans.shx|c0;m 18.028\Fromans.shx|c0;m 7.000\Fromans.shx|c0;m 6.083\Fromans.shx|c0;m 5.099\Fromans.shx|c0;m 12.042\Fromans.shx|c0;m 19.723\Fromans.shx|c0;m 26.077\Fromans.shx|c0;m 9.055\Fromans.shx|c0;m 19.209\Fromans.shx|c0;m 21.260\Fromans.shx|c0;m 24.187\Fromans.shx|c0;m 22.627\Fromans.shx|c0;m 20.616\Fromans.shx|c0;m 19.723\Fromans.shx|c0;m 12.649\Fromans.shx|c0;m 6.000\Fromans.shx|c0;m 10.440\Fromans.shx|c0;m 9.487\Fromans.shx|c0;m 24.759\Fromans.shx|c0;m 23.854\Fromans.shx|c0;m 7.280\Fromans.shx|c0;m 17.804\Fromans.shx|c0;m 25.495\Fromans.shx|c0;m 20.591\Fromans.shx|c0;m 14.142\Fromans.shx|c0;m 10.198\Fromans.shx|c0;m 14.036\Fromans.shx|c0;m 7.000\Fromans.shx|c0;m 9.000\Fromans.shx|c0;m 8.944\Fromans.shx|c0;m 17.205\Fromans.shx|c0;m 12.369\Fromans.shx|c0;m 15.811\Fromans.shx|c0;m 10.817\Fromans.shx|c0;m 20.025\Fromans.shx|c0;m 19.698\Fromans.shx|c0;m 14.422\Fromans.shx|c0;m 19.235\Fromans.shx|c0;m 21.471\Fromans.shx|c0;m 29.017\Fromans.shx|c0;m 29.698\Fromans.shx|c0;m 29.000\Fromans.shx|c0;m 30.414\Fromans.shx|c0;m 12.166\Fromans.shx|c0;m 32.202\Fromans.shx|c0;m 28.636\Fromans.shx|c0;m 40.972\Fromans.shx|c0;m 16.911\Fromans.shx|c0;m 18.273\Fromans.shx|c0;m 23.480\Fromans.shx|c0;m 13.058\Fromans.shx|c0;m 5.352\Fromans.shx|c0;m 6.562\Fromans.shx|c0;m 11.731\Fromans.shx|c0;m 12.156\Fromans.shx|c0;m 12.528\Fromans.shx|c0;m 15.033\Fromans.shx|c0;m 16.163\Fromans.shx|c0;m 9.462\Fromans.shx|c0;m 19.611\Fromans.shx|c0;m 26.686\Fromans.shx|c0;m 16.155\Fromans.shx|c0;m 22.472\Fromans.shx|c0;m 16.125\Fromans.shx|c0;m 41.129\Fromans.shx|c0;m 38.167\Fromans.shx|c0;m 9.603\Fromans.shx|c0;m 21.288\Fromans.shx|c0;m 6.794\Fromans.shx|c0;m 6.382\Fromans.shx|c0;m 17.237\Fromans.shx|c0;m 11.824\Fromans.shx|c0;m 12.415\Fromans.shx|c0;m 14.474\Fromans.shx|c0;m 14.990\Fromans.shx|c0;m 45.832\Fromans.shx|c0;m 21.288\Fromans.shx|c0;m 15.237\Fromans.shx|c0;m 13.343\Fromans.shx|c0;m 14.936\Fromans.shx|c0;m 25.933\Fromans.shx|c0;m 16.384\Fromans.shx|c0;m 26.362\Fromans.shx|c0;m 12.802\Fromans.shx|c0;m 13.913\Fromans.shx|c0;m 12.694\Fromans.shx|c0;m 12.623\Fromans.shx|c0;m 53.373\Fromans.shx|c0;m 13.077\Fromans.shx|c0;m 17.219\Fromans.shx|c0;m 25.115\Fromans.shx|c0;m 8.046\Fromans.shx|c0;m 20.097\Fromans.shx|c0;m 7.854\Fromans.shx|c0;m 16.138\Fromans.shx|c0;m 16.942\Fromans.shx|c0;m 8.965\Fromans.shx|c0;m 8.268\Fromans.shx|c0;m 6.516\Fromans.shx|c0;m 13.053\Fromans.shx|c0;m 7.643\Fromans.shx|c0;m 10.300\Fromans.shx|c0;m 23.104\Fromans.shx|c0;m 11.882\Fromans.shx|c0;m 9.273\Fromans.shx|c0;m 9.155\Fromans.shx|c0;m 22.476\Fromans.shx|c0;m 12.729\Fromans.shx|c0;m 15.061\Fromans.shx|c0;m 28.653\Fromans.shx|c0;m 45.427\Fromans.shx|c0;m 18.028\Fromans.shx|c0;m 18.601\Fromans.shx|c0;m 25.000\Fromans.shx|c0;m 20.510\Fromans.shx|c0;m 46.974\Fromans.shx|c0;m 43.841\Fromans.shx|c0;m 22.825\Fromans.shx|c0;m 42.485\Fromans.shx|c0;m 39.119\Fromans.shx|c0;m 40.791\Fromans.shx|c0;m 20.377\Fromans.shx|c0;m 19.933\Fromans.shx|c0;m 16.803\Fromans.shx|c0;m 18.356\Fromans.shx|c0;m 20.802\Fromans.shx|c0;m 15.784\Fromans.shx|c0;m 13.153\Fromans.shx|c0;m 48.677\Fromans.shx|c0;m 9.891\Fromans.shx|c0;m 17.692\Fromans.shx|c0;m 24.428\Fromans.shx|c0;m 21.643\Fromans.shx|c0;m 18.081\Fromans.shx|c0;m 30.023\Fromans.shx|c0;m 25.248\Fromans.shx|c0;m 19.406\Fromans.shx|c0;m 18.861\Fromans.shx|c0;m 18.533\Fromans.shx|c0;m 58.811\Fromans.shx|c0;m 20.888\Fromans.shx|c0;m 23.795\Fromans.shx|c0;m 18.089\Fromans.shx|c0;m 21.467\Fromans.shx|c0;m 20.221\Fromans.shx|c0;m 24.476\Fromans.shx|c0;m 16.845\Fromans.shx|c0;m 46.305\Fromans.shx|c0;m 39.362\Fromans.shx|c0;m 34.700\Fromans.shx|c0;m 75.373\Fromans.shx|c0;m 75.161\Fromans.shx|c0;m 19.738\Fromans.shx|c0;m 23.070\Fromans.shx|c0;m 20.847\Fromans.shx|c0;m 12.535\Fromans.shx|c0;m 15.263\Fromans.shx|c0;m 19.205\Fromans.shx|c0;m 4.467\Fromans.shx|c0;m 7.757\Fromans.shx|c0;m 15.971\Fromans.shx|c0;m 20.854\Fromans.shx|c0;m 57.467\Fromans.shx|c0;m 20.261\Fromans.shx|c0;m 21.628\Fromans.shx|c0;m 42.536\Fromans.shx|c0;m 16.926\Fromans.shx|c0;m 26.375\Fromans.shx|c0;m 28.939\Fromans.shx|c0;m 10.326\Fromans.shx|c0;m 8.778\Fromans.shx|c0;m 17.677\Fromans.shx|c0;m 0.000m 17.289m 42.353m 66.474m 100.664m 138.830m 171.963m 219.956m 258.816m 290.794m 316.638m 333.896m 353.820m 368.820m 390.291m 411.552m 484.002m 499.962m 515.753m 615.112m 647.423m 702.626m 713.734m 726.171m 755.430m 836.930m 862.764m 877.521m 902.008m 918.132m 933.397m 951.645m 972.684m 985.631m 999.284m 1009.298m 1019.804m 1028.673m 1035.290m 1065.371m 1109.124m 1139.169m 1149.048m 1158.395m 1164.246m 1168.009m 1205.886m 1252.501m 1262.501m 1278.902m 1287.446m 1307.245m 1317.541m 1356.623m 1372.665m 1389.692m 1405.790m 1424.851m 1446.122m 1463.951m 1478.716m 1487.771m 1498.067m 1518.463m 1528.903m 1543.903m 1552.447m 1587.160m 1602.972m 1619.373m 1634.239m 1647.239m 1660.581m 1708.664m 1718.664m 1731.033m 1735.156m 1745.156m 1759.192m 1795.592m 1813.620m 1820.620m 1826.703m 1831.802m 1843.844m 1863.567m 1889.643m 1898.699m 1917.908m 1939.169m 1963.355m 1985.983m 2006.598m 2026.321m 2038.970m 2044.970m 2055.411m 2064.898m 2089.656m 2113.510m 2120.790m 2138.595m 2164.090m 2184.681m 2198.823m 2209.021m 2223.057m 2230.057m 2239.057m 2248.001m 2265.206m 2277.575m 2293.387m 2304.203m 2324.228m 2343.926m 2358.348m 2377.584m 2399.054m 2428.072m 2457.770m 2486.770m 2517.184m 2529.349m 2561.552m 2590.188m 2631.159m 2648.071m 2666.344m 2689.824m 2702.882m 2708.234m 2714.796m 2726.527m 2738.683m 2751.211m 2766.244m 2782.408m 2791.869m 2811.480m 2838.166m 2854.321m 2876.794m 2892.918m 2934.047m 2972.214m 2981.817m 3003.104m 3009.898m 3016.280m 3033.517m 3045.341m 3057.756m 3072.230m 3087.220m 3133.052m 3154.340m 3169.576m 3182.920m 3197.856m 3223.789m 3240.172m 3266.534m 3279.336m 3293.249m 3305.943m 3318.566m 3371.939m 3385.016m 3402.235m 3427.351m 3435.396m 3455.494m 3463.348m 3479.486m 3496.428m 3505.393m 3513.661m 3520.177m 3533.230m 3540.873m 3551.174m 3574.278m 3586.160m 3595.433m 3604.588m 3627.065m 3639.793m 3654.855m 3683.508m 3728.935m 3746.963m 3765.564m 3790.564m 3811.074m 3858.048m 3901.888m 3924.714m 3967.199m 4006.317m 4047.108m 4067.485m 4087.419m 4104.222m 4122.578m 4143.381m 4159.165m 4172.317m 4220.994m 4230.885m 4248.577m 4273.005m 4294.648m 4312.729m 4342.752m 4368.000m 4387.406m 4406.267m 4424.800m 4483.611m 4504.499m 4528.294m 4546.383m 4567.850m 4588.070m 4612.546m 4629.391m 4675.695m 4715.058m 4749.758m 4825.130m 4900.291m 4920.029m 4943.099m 4963.946m 4976.481m 4991.744m 5010.949m 5015.416m 5023.173m 5039.144m 5059.998m 5117.465m 5137.726m 5159.354m 5201.890m 5218.817m 5245.192m 5274.131m 5284.456m 5293.235m ELEVACION ELEVACION LINEA DE CONDUCCION AGUA POTABLE 1712 1714 1716 1718 1720 1722 1724 1726 1728 1730 1732 1734 1736 1738 1740 1742 1744 1746 1748 1750 1752 1754 1756 1758 1760 1762 1764 1766 1768 1770 1772 1774 1776 1778 1780 1782 1784 1786 1788 1790 1792 1794 1796 1798 1800 1802 1804 1806 1808 1810 1812 1814 1816 1818 1820 1822 1824 1826 1828 1830 1832 1834 1836 1838 1840 1842 1844 1846 1848 1850 1852 1854 1856 1858 1860 1862 1864 1866 1868 1870 1872 1874 1876 1878 1880 1882 1884 1886 1888 1890 1892 1894 1896 1898 1900 1902 1904 1906 1712 1714 1716 1718 1720 1722 1724 1726 1728 1730 1732 1734 1736 1738 1740 1742 1744 1746 1748 1750 1752 1754 1756 1758 1760 1762 1764 1766 1768 1770 1772 1774 1776 1778 1780 1782 1784 1786 1788 1790 1792 1794 1796 1798 1800 1802 1804 1806 1808 1810 1812 1814 1816 1818 1820 1822 1824 1826 1828 1830 1832 1834 1836 1838 1840 1842 1844 1846 1848 1850 1852 1854 1856 1858 1860 1862 1864 1866 1868 1870 1872 1874 1876 1878 1880 1882 1884 1886 1888 1890 1892 1894 1896 1898 1900 1902 1904 1906 \c8339311;PROGRESIVA COTA DE TERRENO (msnm) COTA DE TUBERIA (msnm) \c42405;CORTE Y RELLENO PENDIENTE (%) DISTANCIA PARCIAL (m) DISTANCIA ACUMULADA (m) DIÁMETRO/MATERIAL/CLASE TIPO DE TERRENO \c8339311;0+000 \c8339311;0+020 \c8339311;0+040 \c8339311;0+060 \c8339311;0+080 \c8339311;0+100 \c8339311;0+120 \c8339311;0+140 \c8339311;0+160 \c8339311;0+180 \c8339311;0+200 \c8339311;0+220 \c8339311;0+240 \c8339311;0+260 \c8339311;0+280 \c8339311;0+300 \c8339311;0+320 \c8339311;0+340 \c8339311;0+360 \c8339311;0+380 \c8339311;0+400 \c8339311;0+420 \c8339311;0+440 \c8339311;0+460 \c8339311;0+480 \c8339311;0+500 \c8339311;0+520 \c8339311;0+540 \c8339311;0+560 \c8339311;0+580 \c8339311;0+600 \c8339311;0+620 \c8339311;0+640 \c8339311;0+660 \c8339311;0+680 \c8339311;0+700 \c8339311;0+720 \c8339311;0+740 \c8339311;0+760 \c8339311;0+780 \c8339311;0+800 \c8339311;0+820 \c8339311;0+840 \c8339311;0+860 \c8339311;0+880 \c8339311;0+900 \c8339311;0+920 \c8339311;0+940 \c8339311;0+960 \c8339311;0+980 \c8339311;1+000 \c8339311;1+010 1903.312 1899.443 1896.883 1888.127 1883.248 1880.621 1879.121 1877.727 1877.413 1876.642 1875.192 1873.741 1872.087 1870.473 1869.516 1868.288 1866.805 1865.387 1863.588 1862.479 1861.087 1857.481 1856.081 1854.680 1853.280 1851.929 1841.640 1828.048 1814.456 1800.863 1787.271 1776.661 1775.272 1774.235 1773.407 1772.579 1772.765 1773.734 1774.695 1775.248 1774.849 1774.351 1768.606 1766.209 1764.545 1758.003 1751.144 1743.191 1737.566 1725.890 1717.464 1714.484 45.394 S=-180.35‰ 21.745 S=-467.87‰ 56.015 S=-115.30‰ 63.121 S=-36.25‰ 189.974 S=-72.14‰ 63.856 S=-104.42‰ 60.159 S=-55.21‰ 158.883 S=-488.57‰ 50.756 S=-53.28‰ L=93.334 42.706‰ 32.580 S=-222.66‰ 44.306 S=-86.13‰ 87.881 S=-343.10‰ 12.781 S=-779.77‰ 29.214 S=-352.29‰ \c42405;0.600 \c42405;0.338 \c42405;1.385 \c42405;0.435 \c42405;0.380 \c42405;0.059 \c42405;0.865 \c42405;0.445 \c42405;0.856 \c42405;0.810 \c42405;0.577 \c42405;0.569 \c42405;0.358 \c42405;0.187 \c42405;0.673 \c42405;0.887 \c42405;0.847 \c42405;0.872 \c42405;0.516 \c42405;0.971 \c42405;1.667 \c42405;0.149 \c42405;0.837 \c42405;0.546 \c42405;0.250 \c42405;0.003 \c42405;-0.629 \c42405;-4.450 \c42405;-8.271 \c42405;-12.092 \c42405;-15.913 \c42405;-16.752 \c42405;-8.370 \c42405;-0.006 \c42405;0.232 \c42405;0.469 \c42405;0.752 \c42405;0.867 \c42405;0.974 \c42405;0.673 \c42405;-0.580 \c42405;2.515 \c42405;0.652 \c42405;-0.022 \c42405;0.037 \c42405;0.325 \c42405;0.328 \c42405;-0.763 \c42405;0.474 \c42405;0.899 \c42405;-0.146 \c42405;0.397 Km=\C2;0+000.00 \C3;COTA=\C2;1902.712msnm Km=\C2;0+123.15 \C3;COTA=\C2;1877.893msnm Km=\C2;0+376.25 \C3;COTA=\C2;1861.900msnm Km=\C2;0+500.26 \C3;COTA=\C2;1851.911msnm Km=\C2;0+659.15 \C3;COTA=\C2;1774.286msnm Km=\C2;0+803.24 \C3;COTA=\C2;1775.568msnm Km=\C2;0+968.00 \C3;COTA=\C2;1734.346msnm Km=\C2;1+010.00 \C3;COTA=\C2;1714.087msnm 17.289\Fromans.shx|c0;m 25.064\Fromans.shx|c0;m 24.120\Fromans.shx|c0;m 34.190\Fromans.shx|c0;m 38.166\Fromans.shx|c0;m 33.133\Fromans.shx|c0;m 47.993\Fromans.shx|c0;m 38.860\Fromans.shx|c0;m 31.978\Fromans.shx|c0;m 25.845\Fromans.shx|c0;m 17.257\Fromans.shx|c0;m 19.925\Fromans.shx|c0;m 15.000\Fromans.shx|c0;m 21.471\Fromans.shx|c0;m 21.260\Fromans.shx|c0;m 72.450\Fromans.shx|c0;m 15.960\Fromans.shx|c0;m 15.792\Fromans.shx|c0;m 99.359\Fromans.shx|c0;m 32.311\Fromans.shx|c0;m 55.203\Fromans.shx|c0;m 11.108\Fromans.shx|c0;m 12.438\Fromans.shx|c0;m 29.259\Fromans.shx|c0;m 81.500\Fromans.shx|c0;m 25.834\Fromans.shx|c0;m 14.758\Fromans.shx|c0;m 24.487\Fromans.shx|c0;m 16.125\Fromans.shx|c0;m 15.264\Fromans.shx|c0;m 18.248\Fromans.shx|c0;m 21.039\Fromans.shx|c0;m 12.947\Fromans.shx|c0;m 13.653\Fromans.shx|c0;m 10.014\Fromans.shx|c0;m 0.000m 17.289m 42.353m 66.474m 100.664m 138.830m 171.963m 219.956m 258.816m 290.794m 316.638m 333.896m 353.820m 368.820m 390.291m 411.552m 484.002m 499.962m 515.753m 615.112m 647.423m 702.626m 713.734m 726.171m 755.430m 836.930m 862.764m 877.521m 902.008m 918.132m 933.397m 951.645m 972.684m 985.631m 999.284m 1902.712 1899.105 1895.498 1887.691 1882.869 1880.562 1878.256 1877.282 1876.557 1875.832 1874.615 1873.172 1871.729 1870.286 1868.843 1867.401 1865.958 1864.515 1863.072 1861.508 1859.420 1857.332 1855.243 1854.134 1853.030 1851.926 1842.269 1832.498 1822.727 1812.955 1803.184 1793.413 1783.641 1774.241 1773.175 1772.110 1772.013 1772.867 1773.721 1774.576 1775.430 1771.836 1767.953 1766.231 1764.508 1757.678 1750.816 1743.954 1737.092 1724.992 1717.610 1714.087 ELEVACION ELEVACION LINEA DE CONDUCCION AGUA POTABLE 1562 1564 1566 1568 1570 1572 1574 1576 1578 1580 1582 1584 1586 1588 1590 1592 1594 1596 1598 1600 1602 1604 1606 1608 1610 1612 1614 1616 1618 1620 1622 1624 1626 1628 1630 1632 1634 1636 1638 1640 1642 1644 1646 1648 1650 1652 1654 1656 1658 1660 1662 1664 1666 1668 1670 1672 1674 1676 1678 1680 1682 1684 1686 1688 1690 1692 1694 1696 1698 1700 1702 1704 1706 1708 1710 1712 1714 1716 1718 1720 1562 1564 1566 1568 1570 1572 1574 1576 1578 1580 1582 1584 1586 1588 1590 1592 1594 1596 1598 1600 1602 1604 1606 1608 1610 1612 1614 1616 1618 1620 1622 1624 1626 1628 1630 1632 1634 1636 1638 1640 1642 1644 1646 1648 1650 1652 1654 1656 1658 1660 1662 1664 1666 1668 1670 1672 1674 1676 1678 1680 1682 1684 1686 1688 1690 1692 1694 1696 1698 1700 1702 1704 1706 1708 1710 1712 1714 1716 1718 1720 \c8339311;PROGRESIVA COTA DE TERRENO (msnm) COTA DE TUBERIA (msnm) \c42405;CORTE Y RELLENO PENDIENTE (%) DISTANCIA PARCIAL (m) DISTANCIA ACUMULADA (m) DIÁMETRO/MATERIAL/CLASE TIPO DE TERRENO \c8339311;1+000 \c8339311;1+020 \c8339311;1+040 \c8339311;1+060 \c8339311;1+080 \c8339311;1+100 \c8339311;1+120 \c8339311;1+140 \c8339311;1+160 \c8339311;1+180 \c8339311;1+200 \c8339311;1+220 \c8339311;1+240 \c8339311;1+260 \c8339311;1+280 \c8339311;1+300 \c8339311;1+320 \c8339311;1+340 \c8339311;1+360 \c8339311;1+380 \c8339311;1+400 \c8339311;1+420 \c8339311;1+440 \c8339311;1+460 \c8339311;1+480 \c8339311;1+500 \c8339311;1+520 \c8339311;1+540 \c8339311;1+560 \c8339311;1+580 \c8339311;1+600 \c8339311;1+620 \c8339311;1+640 \c8339311;1+660 \c8339311;1+680 \c8339311;1+700 \c8339311;1+720 \c8339311;1+740 \c8339311;1+760 \c8339311;1+780 \c8339311;1+800 \c8339311;1+820 \c8339311;1+840 \c8339311;1+860 \c8339311;1+880 \c8339311;1+900 \c8339311;1+920 \c8339311;1+940 \c8339311;1+960 \c8339311;1+980 \c8339311;2+000 \c8339311;2+010 1717.464 1711.693 1707.092 1705.313 1703.662 1702.059 1699.799 1697.051 1695.881 1693.348 1690.761 1688.183 1685.609 1683.250 1678.615 1674.732 1668.937 1668.425 1667.790 1666.569 1665.360 1657.545 1646.453 1641.443 1635.574 1630.716 1627.853 1626.260 1619.171 1611.681 1608.188 1604.873 1600.670 1596.131 1592.365 1588.622 1586.000 1586.000 1585.978 1585.428 1585.000 1585.000 1582.319 1581.181 1575.328 1570.865 1568.803 1566.966 1566.139 1565.264 1564.692 1564.453 \c42405; \c42405;0.827 \c42405;0.441 \c42405;0.633 \c42405;0.954 \c42405;1.322 \c42405;1.034 \c42405;0.257 \c42405;1.058 \c42405;0.931 \c42405;0.885 \c42405;0.849 \c42405;0.816 \c42405;0.998 \c42405;0.734 \c42405;1.853 \c42405;0.273 \c42405;0.770 \c42405;1.143 \c42405;0.932 \c42405;0.731 \c42405;1.953 \c42405;1.372 \c42405;0.741 \c42405;0.456 \c42405;0.535 \c42405;0.316 \c42405;1.368 \c42405;1.024 \c42405;0.965 \c42405;2.011 \c42405;2.279 \c42405;1.658 \c42405;0.700 \c42405;0.517 \c42405;0.355 \c42405;0.423 \c42405;0.661 \c42405;0.877 \c42405;0.566 \c42405;0.376 \c42405;0.753 \c42405;0.144 \c42405;1.077 \c42405;0.971 \c42405;0.762 \c42405;0.449 \c42405;0.359 \c42405;0.543 \c42405;0.230 \c42405;0.219 \c42405;0.260 20.036 S=-322.10‰ 134.738 S=-98.58‰ 100.340 S=-127.06‰ 50.949 S=-250.05‰ 87.041 S=-50.44‰ 40.103 S=-525.55‰ 23.137 S=-160.41‰ 42.104 S=-371.58‰ 129.689 S=-179.10‰ 103.822 S=-11.91‰ 46.082 S=-103.59‰ 62.437 S=-28.07‰ 24.999 S=-334.38‰ 51.526 S=-132.20‰ 25.292 S=-341.66‰ 57.704 S=-87.41‰ 10.014\Fromans.shx|c0;m 10.506\Fromans.shx|c0;m 8.869\Fromans.shx|c0;m 6.617\Fromans.shx|c0;m 30.081\Fromans.shx|c0;m 43.754\Fromans.shx|c0;m 30.045\Fromans.shx|c0;m 9.879\Fromans.shx|c0;m 9.347\Fromans.shx|c0;m 5.850\Fromans.shx|c0;m 3.763\Fromans.shx|c0;m 37.877\Fromans.shx|c0;m 46.615\Fromans.shx|c0;m 10.000\Fromans.shx|c0;m 16.401\Fromans.shx|c0;m 8.544\Fromans.shx|c0;m 19.799\Fromans.shx|c0;m 10.296\Fromans.shx|c0;m 39.082\Fromans.shx|c0;m 16.041\Fromans.shx|c0;m 17.027\Fromans.shx|c0;m 16.099\Fromans.shx|c0;m 19.060\Fromans.shx|c0;m 21.271\Fromans.shx|c0;m 17.829\Fromans.shx|c0;m 14.765\Fromans.shx|c0;m 9.055\Fromans.shx|c0;m 10.296\Fromans.shx|c0;m 20.396\Fromans.shx|c0;m 10.440\Fromans.shx|c0;m 15.000\Fromans.shx|c0;m 8.544\Fromans.shx|c0;m 34.713\Fromans.shx|c0;m 15.811\Fromans.shx|c0;m 16.401\Fromans.shx|c0;m 14.866\Fromans.shx|c0;m 13.000\Fromans.shx|c0;m 13.342\Fromans.shx|c0;m 48.083\Fromans.shx|c0;m 10.000\Fromans.shx|c0;m 12.369\Fromans.shx|c0;m 4.123\Fromans.shx|c0;m 10.000\Fromans.shx|c0;m 14.036\Fromans.shx|c0;m 36.401\Fromans.shx|c0;m 18.028\Fromans.shx|c0;m 7.000\Fromans.shx|c0;m 6.083\Fromans.shx|c0;m 5.099\Fromans.shx|c0;m 12.042\Fromans.shx|c0;m 19.723\Fromans.shx|c0;m 26.077\Fromans.shx|c0;m 9.055\Fromans.shx|c0;m 19.209\Fromans.shx|c0;m 21.260\Fromans.shx|c0;m 24.187\Fromans.shx|c0;m 22.627\Fromans.shx|c0;m 20.616\Fromans.shx|c0;m 999.284m 1009.298m 1019.804m 1028.673m 1035.290m 1065.371m 1109.124m 1139.169m 1149.048m 1158.395m 1164.246m 1168.009m 1205.886m 1252.501m 1262.501m 1278.902m 1287.446m 1307.245m 1317.541m 1356.623m 1372.665m 1389.692m 1405.790m 1424.851m 1446.122m 1463.951m 1478.716m 1487.771m 1498.067m 1518.463m 1528.903m 1543.903m 1552.447m 1587.160m 1602.972m 1619.373m 1634.239m 1647.239m 1660.581m 1708.664m 1718.664m 1731.033m 1735.156m 1745.156m 1759.192m 1795.592m 1813.620m 1820.620m 1826.703m 1831.802m 1843.844m 1863.567m 1889.643m 1898.699m 1917.908m 1939.169m 1963.355m 1985.983m Km=\C2;1+010.00 \C3;COTA=\C2;1714.087msnm Km=\C2;1+164.77 \C3;COTA=\C2;1694.352msnm Km=\C2;1+265.11 \C3;COTA=\C2;1681.603msnm Km=\C2;1+403.10 \C3;COTA=\C2;1664.472msnm Km=\C2;1+542.87 \C3;COTA=\C2;1624.513msnm Km=\C2;1+714.66 \C3;COTA=\C2;1585.640msnm Km=\C2;1+818.48 \C3;COTA=\C2;1584.404msnm Km=\C2;1+947.56 \C3;COTA=\C2;1565.945msnm Km=\C2;2+010.00 \C3;COTA=\C2;1564.192msnm Km=\C2;1+010.00 \C3;COTA=\C2;1714.087msnm Km=\C2;1+010.00 \C3;COTA=\C2;1714.087msnm Km=\C2;1+164.77 \C3;COTA=\C2;1694.352msnm Km=\C2;1+265.11 \C3;COTA=\C2;1681.603msnm Km=\C2;1+403.10 \C3;COTA=\C2;1664.472msnm Km=\C2;1+714.66 \C3;COTA=\C2;1585.640msnm Km=\C2;1+818.48 \C3;COTA=\C2;1584.404msnm Km=\C2;2+010.00 \C3;COTA=\C2;1564.192msnm Km=\C2;1+542.87 \C3;COTA=\C2;1624.513msnm Km=\C2;1+947.56 \C3;COTA=\C2;1565.945msnm 1710.866 1706.651 1704.680 1702.708 1700.737 1698.765 1696.794 1694.822 1692.417 1689.876 1687.335 1684.793 1682.252 1677.880 1672.879 1668.664 1667.655 1666.646 1665.637 1664.628 1655.592 1645.081 1640.702 1635.118 1630.181 1627.537 1624.893 1618.148 1610.716 1606.177 1602.595 1599.013 1595.431 1591.849 1588.266 1585.577 1585.339 1585.101 1584.862 1584.624 1584.247 1582.175 1580.103 1574.357 1570.103 1568.354 1566.606 1565.596 1565.035 1564.473 1564.192 ELEVACION ELEVACION LINEA DE CONDUCCION AGUA POTABLE 1540 1542 1544 1546 1548 1550 1552 1554 1556 1558 1560 1562 1564 1566 1568 1540 1542 1544 1546 1548 1550 1552 1554 1556 1558 1560 1562 1564 1566 1568 \c8339311;PROGRESIVA COTA DE TERRENO (msnm) COTA DE TUBERIA (msnm) \c42405;CORTE Y RELLENO PENDIENTE (%) DISTANCIA PARCIAL (m) DISTANCIA ACUMULADA (m) DIÁMETRO/MATERIAL/CLASE TIPO DE TERRENO \c8339311;2+000 \c8339311;2+020 \c8339311;2+040 \c8339311;2+060 \c8339311;2+080 \c8339311;2+100 \c8339311;2+120 \c8339311;2+140 \c8339311;2+160 \c8339311;2+180 \c8339311;2+200 \c8339311;2+220 \c8339311;2+240 \c8339311;2+260 \c8339311;2+280 \c8339311;2+300 \c8339311;2+320 \c8339311;2+340 \c8339311;2+360 \c8339311;2+380 \c8339311;2+400 \c8339311;2+420 \c8339311;2+440 \c8339311;2+460 \c8339311;2+480 \c8339311;2+500 \c8339311;2+520 \c8339311;2+540 \c8339311;2+560 \c8339311;2+580 \c8339311;2+600 \c8339311;2+620 \c8339311;2+640 \c8339311;2+660 \c8339311;2+680 \c8339311;2+700 \c8339311;2+720 \c8339311;2+740 \c8339311;2+760 \c8339311;2+780 \c8339311;2+800 \c8339311;2+820 \c8339311;2+840 \c8339311;2+860 \c8339311;2+880 \c8339311;2+900 \c8339311;2+920 \c8339311;2+940 \c8339311;2+960 \c8339311;2+980 \c8339311;3+000 \c8339311;3+010 1564.692 1564.175 1563.130 1562.273 1562.161 1561.566 1560.109 1558.945 1558.160 1556.455 1555.115 1556.782 1556.895 1555.303 1555.105 1556.223 1557.043 1556.998 1558.086 1558.887 1558.033 1558.722 1559.402 1560.000 1560.000 1559.565 1558.769 1558.331 1558.952 1559.644 1560.239 1560.728 1560.963 1559.670 1559.000 1559.942 1560.003 1558.839 1558.930 1557.733 1557.362 1557.698 1558.930 1558.425 1556.333 1553.425 1552.001 1550.535 1548.975 1546.204 1545.251 1543.777 \c42405; \c42405;0.482 \c42405;0.435 \c42405;0.576 \c42405;1.462 \c42405;1.866 \c42405;1.407 \c42405;1.241 \c42405;1.455 \c42405;0.748 \c42405;0.407 \c42405;2.052 \c42405;2.082 \c42405;0.408 \c42405;0.129 \c42405;1.089 \c42405;1.381 \c42405;0.807 \c42405;1.367 \c42405;1.641 \c42405;0.258 \c42405;0.419 \c42405;0.571 \c42405;0.641 \c42405;0.418 \c42405;0.557 \c42405;0.334 \c42405;0.458 \c42405;0.623 \c42405;0.860 \c42405;0.999 \c42405;1.032 \c42405;0.812 \c42405;-0.032 \c42405;0.245 \c42405;1.355 \c42405;1.079 \c42405;0.209 \c42405;0.977 \c42405;0.457 \c42405;0.764 \c42405;1.021 \c42405;1.857 \c42405;0.955 \c42405;0.777 \c42405;0.664 \c42405;0.776 \c42405;0.657 \c42405;0.443 \c42405;-0.474 \c42405;1.106 \c42405;0.899 191.118 S=-49.91‰ L=95.495 4.103‰ L=177.849 26.406‰ L=107.324 22.790‰ 78.338 S=-33.87‰ L=59.605 19.831‰ 37.104 S=-139.75‰ 68.816 S=-67.31‰ 38.556 S=-126.67‰ 65.303 S=-28.69‰ 40.762 S=-47.36‰ L=39.730 16.817‰ 19.723\Fromans.shx|c0;m 12.649\Fromans.shx|c0;m 6.000\Fromans.shx|c0;m 10.440\Fromans.shx|c0;m 9.487\Fromans.shx|c0;m 24.759\Fromans.shx|c0;m 23.854\Fromans.shx|c0;m 7.280\Fromans.shx|c0;m 17.804\Fromans.shx|c0;m 25.495\Fromans.shx|c0;m 20.591\Fromans.shx|c0;m 14.142\Fromans.shx|c0;m 10.198\Fromans.shx|c0;m 14.036\Fromans.shx|c0;m 7.000\Fromans.shx|c0;m 9.000\Fromans.shx|c0;m 8.944\Fromans.shx|c0;m 17.205\Fromans.shx|c0;m 12.369\Fromans.shx|c0;m 15.811\Fromans.shx|c0;m 10.817\Fromans.shx|c0;m 20.025\Fromans.shx|c0;m 19.698\Fromans.shx|c0;m 14.422\Fromans.shx|c0;m 19.235\Fromans.shx|c0;m 21.471\Fromans.shx|c0;m 29.017\Fromans.shx|c0;m 29.698\Fromans.shx|c0;m 29.000\Fromans.shx|c0;m 30.414\Fromans.shx|c0;m 12.166\Fromans.shx|c0;m 32.202\Fromans.shx|c0;m 28.636\Fromans.shx|c0;m 40.972\Fromans.shx|c0;m 16.911\Fromans.shx|c0;m 18.273\Fromans.shx|c0;m 23.480\Fromans.shx|c0;m 13.058\Fromans.shx|c0;m 5.352\Fromans.shx|c0;m 6.562\Fromans.shx|c0;m 11.731\Fromans.shx|c0;m 12.156\Fromans.shx|c0;m 12.528\Fromans.shx|c0;m 15.033\Fromans.shx|c0;m 16.163\Fromans.shx|c0;m 9.462\Fromans.shx|c0;m 19.611\Fromans.shx|c0;m 26.686\Fromans.shx|c0;m 16.155\Fromans.shx|c0;m 22.472\Fromans.shx|c0;m 16.125\Fromans.shx|c0;m 41.129\Fromans.shx|c0;m 38.167\Fromans.shx|c0;m 9.603\Fromans.shx|c0;m 21.288\Fromans.shx|c0;m 6.794\Fromans.shx|c0;m 2006.598m 2026.321m 2038.970m 2044.970m 2055.411m 2064.898m 2089.656m 2113.510m 2120.790m 2138.595m 2164.090m 2184.681m 2198.823m 2209.021m 2223.057m 2230.057m 2239.057m 2248.001m 2265.206m 2277.575m 2293.387m 2304.203m 2324.228m 2343.926m 2358.348m 2377.584m 2399.054m 2428.072m 2457.770m 2486.770m 2517.184m 2529.349m 2561.552m 2590.188m 2631.159m 2648.071m 2666.344m 2689.824m 2702.882m 2708.234m 2714.796m 2726.527m 2738.683m 2751.211m 2766.244m 2782.408m 2791.869m 2811.480m 2838.166m 2854.321m 2876.794m 2892.918m 2934.047m 2972.214m 2981.817m 3003.104m Km=\C2;2+010.00 \C3;COTA=\C2;1564.192msnm Km=\C2;2+201.12 \C3;COTA=\C2;1554.653msnm Km=\C2;2+474.46 \C3;COTA=\C2;1559.741msnm Km=\C2;2+647.09 \C3;COTA=\C2;1560.313msnm Km=\C2;2+805.92 \C3;COTA=\C2;1556.397msnm Km=\C2;2+971.44 \C3;COTA=\C2;1547.762msnm Km=\C2;3+010.00 \C3;COTA=\C2;1542.878msnm Km=\C2;2+010.00 \C3;COTA=\C2;1564.192msnm Km=\C2;2+010.00 \C3;COTA=\C2;1564.192msnm Km=\C2;2+201.12 \C3;COTA=\C2;1554.653msnm Km=\C2;2+474.46 \C3;COTA=\C2;1559.741msnm Km=\C2;2+647.09 \C3;COTA=\C2;1560.313msnm Km=\C2;2+805.92 \C3;COTA=\C2;1556.397msnm Km=\C2;2+971.44 \C3;COTA=\C2;1547.762msnm Km=\C2;3+010.00 \C3;COTA=\C2;1542.878msnm 1563.693 1562.695 1561.697 1560.698 1559.700 1558.702 1557.704 1556.705 1555.707 1554.709 1554.730 1554.813 1554.895 1554.977 1555.134 1555.662 1556.190 1556.719 1557.247 1557.775 1558.303 1558.831 1559.359 1559.582 1559.008 1558.434 1557.873 1558.328 1558.784 1559.240 1559.696 1560.152 1559.702 1558.755 1558.587 1558.923 1558.630 1557.953 1557.275 1556.598 1556.677 1557.073 1557.470 1555.557 1552.762 1551.225 1549.879 1548.532 1546.678 1544.145 1542.878 ELEVACION ELEVACION LINEA DE CONDUCCION AGUA POTABLE 1296 1298 1300 1302 1304 1306 1308 1310 1312 1314 1316 1318 1320 1322 1324 1326 1328 1330 1332 1334 1336 1338 1340 1342 1344 1346 1348 1350 1352 1354 1356 1358 1360 1362 1364 1366 1368 1370 1372 1374 1376 1378 1380 1382 1384 1386 1388 1390 1392 1394 1396 1398 1400 1402 1404 1406 1408 1410 1412 1414 1416 1418 1420 1422 1424 1426 1428 1430 1432 1434 1436 1438 1440 1442 1444 1446 1448 1450 1452 1454 1456 1458 1460 1462 1464 1466 1468 1470 1472 1474 1476 1478 1480 1482 1484 1486 1488 1490 1492 1494 1496 1498 1500 1502 1504 1506 1508 1510 1512 1514 1516 1518 1520 1522 1524 1526 1528 1530 1532 1534 1536 1538 1540 1542 1544 1546 1548 1296 1298 1300 1302 1304 1306 1308 1310 1312 1314 1316 1318 1320 1322 1324 1326 1328 1330 1332 1334 1336 1338 1340 1342 1344 1346 1348 1350 1352 1354 1356 1358 1360 1362 1364 1366 1368 1370 1372 1374 1376 1378 1380 1382 1384 1386 1388 1390 1392 1394 1396 1398 1400 1402 1404 1406 1408 1410 1412 1414 1416 1418 1420 1422 1424 1426 1428 1430 1432 1434 1436 1438 1440 1442 1444 1446 1448 1450 1452 1454 1456 1458 1460 1462 1464 1466 1468 1470 1472 1474 1476 1478 1480 1482 1484 1486 1488 1490 1492 1494 1496 1498 1500 1502 1504 1506 1508 1510 1512 1514 1516 1518 1520 1522 1524 1526 1528 1530 1532 1534 1536 1538 1540 1542 1544 1546 1548 \c8339311;PROGRESIVA COTA DE TERRENO (msnm) COTA DE TUBERIA (msnm) \c42405;CORTE Y RELLENO PENDIENTE (%) DISTANCIA PARCIAL (m) DISTANCIA ACUMULADA (m) DIÁMETRO/MATERIAL/CLASE TIPO DE TERRENO \c8339311;3+000 \c8339311;3+020 \c8339311;3+040 \c8339311;3+060 \c8339311;3+080 \c8339311;3+100 \c8339311;3+120 \c8339311;3+140 \c8339311;3+160 \c8339311;3+180 \c8339311;3+200 \c8339311;3+220 \c8339311;3+240 \c8339311;3+260 \c8339311;3+280 \c8339311;3+300 \c8339311;3+320 \c8339311;3+340 \c8339311;3+360 \c8339311;3+380 \c8339311;3+400 \c8339311;3+420 \c8339311;3+440 \c8339311;3+460 \c8339311;3+480 \c8339311;3+500 \c8339311;3+520 \c8339311;3+540 \c8339311;3+560 \c8339311;3+580 \c8339311;3+600 \c8339311;3+620 \c8339311;3+640 \c8339311;3+660 \c8339311;3+680 \c8339311;3+700 \c8339311;3+720 \c8339311;3+740 \c8339311;3+760 \c8339311;3+780 \c8339311;3+800 \c8339311;3+820 \c8339311;3+840 \c8339311;3+860 \c8339311;3+880 \c8339311;3+900 \c8339311;3+920 \c8339311;3+940 \c8339311;3+960 \c8339311;3+980 \c8339311;4+000 \c8339311;4+010 1545.251 1543.294 1542.190 1539.885 1538.443 1537.908 1537.668 1536.457 1533.403 1530.867 1527.907 1525.786 1523.336 1521.744 1520.793 1519.040 1514.675 1511.181 1507.687 1505.219 1502.751 1499.871 1496.112 1492.961 1487.942 1485.254 1479.878 1475.266 1470.613 1466.368 1461.366 1454.634 1444.458 1433.151 1414.305 1402.650 1392.524 1383.704 1376.795 1372.113 1366.770 1361.653 1358.681 1355.466 1349.991 1344.517 1333.685 1325.603 1318.542 1310.473 1301.837 1298.897 \c42405; \c42405;1.101 \c42405;1.370 \c42405;0.437 \c42405;0.367 \c42405;0.652 \c42405;0.680 \c42405;0.578 \c42405;0.576 \c42405;1.093 \c42405;1.184 \c42405;1.449 \c42405;0.549 \c42405;0.506 \c42405;1.105 \c42405;0.902 \c42405;0.325 \c42405;1.339 \c42405;0.639 \c42405;0.759 \c42405;0.880 \c42405;0.635 \c42405;0.639 \c42405;1.249 \c42405;-0.040 \c42405;1.027 \c42405;0.450 \c42405;0.636 \c42405;0.782 \c42405;1.423 \c42405;2.306 \c42405;1.458 \c42405;-0.255 \c42405;1.083 \c42405;1.850 \c42405;1.319 \c42405;0.917 \c42405;1.017 \c42405;0.968 \c42405;1.039 \c42405;0.554 \c42405;0.460 \c42405;0.449 \c42405;0.620 \c42405;0.858 \c42405;1.096 \c42405;0.815 \c42405;1.637 \c42405;1.465 \c42405;0.578 \c42405;-0.265 \c42405;0.691 80.012 S=-68.60‰ 43.942 S=-13.38‰ 77.183 S=-152.60‰ 93.720 S=-77.48‰ 37.275 S=-225.36‰ 77.087 S=-129.45‰ 54.850 S=-188.10‰ 24.122 S=-182.61‰ 80.204 S=-239.92‰ 48.625 S=-294.25‰ 27.589 S=-492.77‰ 24.008 S=-1010.00‰ 15.372 S=-586.30‰ 40.394 S=-486.23‰ 31.303 S=-343.01‰ 27.898 S=-195.80‰ 17.021 S=-342.56‰ 46.305 S=-148.04‰ 44.480 S=-285.63‰ 28.626 S=-545.58‰ 43.519 S=-344.50‰ 36.467 S=-389.63‰ 6.794\Fromans.shx|c0;m 6.382\Fromans.shx|c0;m 17.237\Fromans.shx|c0;m 11.824\Fromans.shx|c0;m 12.415\Fromans.shx|c0;m 14.474\Fromans.shx|c0;m 14.990\Fromans.shx|c0;m 45.832\Fromans.shx|c0;m 21.288\Fromans.shx|c0;m 15.237\Fromans.shx|c0;m 13.343\Fromans.shx|c0;m 14.936\Fromans.shx|c0;m 25.933\Fromans.shx|c0;m 16.384\Fromans.shx|c0;m 26.362\Fromans.shx|c0;m 12.802\Fromans.shx|c0;m 13.913\Fromans.shx|c0;m 12.694\Fromans.shx|c0;m 12.623\Fromans.shx|c0;m 53.373\Fromans.shx|c0;m 13.077\Fromans.shx|c0;m 17.219\Fromans.shx|c0;m 25.115\Fromans.shx|c0;m 8.046\Fromans.shx|c0;m 20.097\Fromans.shx|c0;m 7.854\Fromans.shx|c0;m 16.138\Fromans.shx|c0;m 16.942\Fromans.shx|c0;m 8.965\Fromans.shx|c0;m 8.268\Fromans.shx|c0;m 6.516\Fromans.shx|c0;m 13.053\Fromans.shx|c0;m 7.643\Fromans.shx|c0;m 10.300\Fromans.shx|c0;m 23.104\Fromans.shx|c0;m 11.882\Fromans.shx|c0;m 9.273\Fromans.shx|c0;m 9.155\Fromans.shx|c0;m 22.476\Fromans.shx|c0;m 12.729\Fromans.shx|c0;m 15.061\Fromans.shx|c0;m 28.653\Fromans.shx|c0;m 45.427\Fromans.shx|c0;m 18.028\Fromans.shx|c0;m 18.601\Fromans.shx|c0;m 25.000\Fromans.shx|c0;m 20.510\Fromans.shx|c0;m 46.974\Fromans.shx|c0;m 43.841\Fromans.shx|c0;m 22.825\Fromans.shx|c0;m 42.485\Fromans.shx|c0;m 39.119\Fromans.shx|c0;m 3003.104m 3009.898m 3016.280m 3033.517m 3045.341m 3057.756m 3072.230m 3087.220m 3133.052m 3154.340m 3169.576m 3182.920m 3197.856m 3223.789m 3240.172m 3266.534m 3279.336m 3293.249m 3305.943m 3318.566m 3371.939m 3385.016m 3402.235m 3427.351m 3435.396m 3455.494m 3463.348m 3479.486m 3496.428m 3505.393m 3513.661m 3520.177m 3533.230m 3540.873m 3551.174m 3574.278m 3586.160m 3595.433m 3604.588m 3627.065m 3639.793m 3654.855m 3683.508m 3728.935m 3746.963m 3765.564m 3790.564m 3811.074m 3858.048m 3901.888m 3924.714m 3967.199m Km=\C2;3+010.00 \C3;COTA=\C2;1542.878msnm Km=\C2;3+133.95 \C3;COTA=\C2;1536.801msnm Km=\C2;3+304.86 \C3;COTA=\C2;1517.762msnm Km=\C2;3+419.22 \C3;COTA=\C2;1499.383msnm Km=\C2;3+578.39 \C3;COTA=\C2;1465.418msnm Km=\C2;3+678.62 \C3;COTA=\C2;1413.267msnm Km=\C2;3+793.58 \C3;COTA=\C2;1368.415msnm Km=\C2;3+901.39 \C3;COTA=\C2;1343.024msnm Km=\C2;4+010.00 \C3;COTA=\C2;1298.205msnm Km=\C2;3+010.00 \C3;COTA=\C2;1542.878msnm Km=\C2;3+010.00 \C3;COTA=\C2;1542.878msnm Km=\C2;3+133.95 \C3;COTA=\C2;1536.801msnm Km=\C2;3+304.86 \C3;COTA=\C2;1517.762msnm Km=\C2;3+419.22 \C3;COTA=\C2;1499.383msnm Km=\C2;3+578.39 \C3;COTA=\C2;1465.418msnm Km=\C2;3+678.62 \C3;COTA=\C2;1413.267msnm Km=\C2;3+793.58 \C3;COTA=\C2;1368.415msnm Km=\C2;3+901.39 \C3;COTA=\C2;1343.024msnm Km=\C2;4+010.00 \C3;COTA=\C2;1298.205msnm 1542.192 1540.820 1539.448 1538.076 1537.256 1536.988 1535.879 1532.827 1529.775 1526.723 1524.337 1522.787 1521.237 1519.688 1518.138 1514.349 1509.842 1507.048 1504.459 1501.870 1499.236 1495.474 1491.712 1487.982 1484.226 1479.428 1474.629 1469.831 1464.945 1459.060 1453.175 1444.713 1432.069 1412.455 1401.331 1391.607 1382.687 1375.827 1371.074 1366.216 1361.193 1358.232 1354.846 1349.133 1343.421 1332.870 1323.966 1317.076 1309.894 1302.102 1298.205 ELEVACION ELEVACION LINEA DE CONDUCCION AGUA POTABLE 1276 1278 1280 1282 1284 1286 1288 1290 1292 1294 1296 1298 1300 1302 1304 1306 1308 1310 1312 1314 1316 1318 1320 1322 1324 1326 1328 1276 1278 1280 1282 1284 1286 1288 1290 1292 1294 1296 1298 1300 1302 1304 1306 1308 1310 1312 1314 1316 1318 1320 1322 1324 1326 1328 \c8339311;PROGRESIVA COTA DE TERRENO (msnm) COTA DE TUBERIA (msnm) \c42405;CORTE Y RELLENO PENDIENTE (%) DISTANCIA PARCIAL (m) DISTANCIA ACUMULADA (m) DIÁMETRO/MATERIAL/CLASE TIPO DE TERRENO \c8339311;4+000 \c8339311;4+020 \c8339311;4+040 \c8339311;4+060 \c8339311;4+080 \c8339311;4+100 \c8339311;4+120 \c8339311;4+140 \c8339311;4+160 \c8339311;4+180 \c8339311;4+200 \c8339311;4+220 \c8339311;4+240 \c8339311;4+260 \c8339311;4+280 \c8339311;4+300 \c8339311;4+320 \c8339311;4+340 \c8339311;4+360 \c8339311;4+380 \c8339311;4+400 \c8339311;4+420 \c8339311;4+440 \c8339311;4+460 \c8339311;4+480 \c8339311;4+500 \c8339311;4+520 \c8339311;4+540 \c8339311;4+560 \c8339311;4+580 \c8339311;4+600 \c8339311;4+620 \c8339311;4+640 \c8339311;4+660 \c8339311;4+680 \c8339311;4+700 \c8339311;4+720 \c8339311;4+740 \c8339311;4+760 \c8339311;4+780 \c8339311;4+800 \c8339311;4+820 \c8339311;4+840 \c8339311;4+860 \c8339311;4+880 \c8339311;4+900 \c8339311;4+920 \c8339311;4+940 \c8339311;4+960 \c8339311;4+980 \c8339311;5+000 \c8339311;5+010 1301.837 1298.320 1297.168 1296.435 1295.973 1295.537 1295.120 1294.793 1294.165 1292.780 1290.784 1288.787 1286.615 1284.164 1282.133 1281.433 1282.122 1283.535 1285.376 1286.929 1287.589 1287.527 1287.920 1288.506 1289.091 1290.172 1290.753 1290.969 1291.256 1292.157 1293.296 1294.008 1294.393 1295.027 1295.918 1297.749 1299.243 1299.713 1299.918 1299.870 1299.822 1299.774 1299.743 1299.718 1299.693 1299.668 1299.984 1301.110 1303.452 1308.510 1316.109 1322.894 \c42405; \c42405;0.536 \c42405;0.226 \c42405;0.335 \c42405;0.716 \c42405;0.702 \c42405;0.635 \c42405;0.657 \c42405;0.379 \c42405;0.753 \c42405;0.888 \c42405;1.024 \c42405;0.983 \c42405;0.664 \c42405;0.751 \c42405;0.100 \c42405;0.824 \c42405;0.588 \c42405;0.781 \c42405;0.685 \c42405;0.500 \c42405;0.353 \c42405;0.662 \c42405;0.659 \c42405;0.417 \c42405;0.669 \c42405;0.423 \c42405;0.325 \c42405;0.299 \c42405;0.347 \c42405;0.280 \c42405;0.154 \c42405;0.298 \c42405;0.691 \c42405;0.341 \c42405;0.679 \c42405;0.680 \c42405;0.905 \c42405;0.884 \c42405;0.611 \c42405;0.338 \c42405;0.280 \c42405;0.283 \c42405;0.291 \c42405;0.299 \c42405;0.308 \c42405;0.096 \c42405;0.147 \c42405;0.177 \c42405;0.221 \c42405;0.647 \c42405;0.894 72.889 S=-42.12‰ 81.301 S=-17.50‰ 115.685 S=-106.59‰ 39.953 S=-2.43‰ L=69.906 82.415‰ L=56.701 4.216‰ L=73.518 41.405‰ L=47.965 15.673‰ L=44.437 60.340‰ L=51.652 12.031‰ L=56.298 74.641‰ L=83.049 11.275‰ L=22.319 122.916‰ L=12.022 320.811‰ L=15.823 172.958‰ L=17.722 653.800‰ 106.550 S=-1.67‰ L=32.210 53.784‰ 40.791\Fromans.shx|c0;m 20.377\Fromans.shx|c0;m 19.933\Fromans.shx|c0;m 16.803\Fromans.shx|c0;m 18.356\Fromans.shx|c0;m 20.802\Fromans.shx|c0;m 15.784\Fromans.shx|c0;m 13.153\Fromans.shx|c0;m 48.677\Fromans.shx|c0;m 9.891\Fromans.shx|c0;m 17.692\Fromans.shx|c0;m 24.428\Fromans.shx|c0;m 21.643\Fromans.shx|c0;m 18.081\Fromans.shx|c0;m 30.023\Fromans.shx|c0;m 25.248\Fromans.shx|c0;m 19.406\Fromans.shx|c0;m 18.861\Fromans.shx|c0;m 18.533\Fromans.shx|c0;m 58.811\Fromans.shx|c0;m 20.888\Fromans.shx|c0;m 23.795\Fromans.shx|c0;m 18.089\Fromans.shx|c0;m 21.467\Fromans.shx|c0;m 20.221\Fromans.shx|c0;m 24.476\Fromans.shx|c0;m 16.845\Fromans.shx|c0;m 46.305\Fromans.shx|c0;m 39.362\Fromans.shx|c0;m 34.700\Fromans.shx|c0;m 75.373\Fromans.shx|c0;m 75.161\Fromans.shx|c0;m 19.738\Fromans.shx|c0;m 23.070\Fromans.shx|c0;m 20.847\Fromans.shx|c0;m 12.535\Fromans.shx|c0;m 15.263\Fromans.shx|c0;m 19.205\Fromans.shx|c0;m 4006.317m 4047.108m 4067.485m 4087.419m 4104.222m 4122.578m 4143.381m 4159.165m 4172.317m 4220.994m 4230.885m 4248.577m 4273.005m 4294.648m 4312.729m 4342.752m 4368.000m 4387.406m 4406.267m 4424.800m 4483.611m 4504.499m 4528.294m 4546.383m 4567.850m 4588.070m 4612.546m 4629.391m 4675.695m 4715.058m 4749.758m 4825.130m 4900.291m 4920.029m 4943.099m 4963.946m 4976.481m 4991.744m Km=\C2;4+010.00 \C3;COTA=\C2;1298.205msnm Km=\C2;4+164.19 \C3;COTA=\C2;1293.712msnm Km=\C2;4+279.87 \C3;COTA=\C2;1281.382msnm Km=\C2;4+389.73 \C3;COTA=\C2;1287.046msnm Km=\C2;4+519.95 \C3;COTA=\C2;1290.329msnm Km=\C2;4+664.01 \C3;COTA=\C2;1294.384msnm Km=\C2;4+803.35 \C3;COTA=\C2;1299.522msnm Km=\C2;4+909.90 \C3;COTA=\C2;1299.344msnm Km=\C2;5+010.00 \C3;COTA=\C2;1322.000msnm Km=\C2;4+010.00 \C3;COTA=\C2;1298.205msnm Km=\C2;4+010.00 \C3;COTA=\C2;1298.205msnm Km=\C2;4+164.19 \C3;COTA=\C2;1293.712msnm Km=\C2;4+279.87 \C3;COTA=\C2;1281.382msnm Km=\C2;4+389.73 \C3;COTA=\C2;1287.046msnm Km=\C2;4+519.95 \C3;COTA=\C2;1290.329msnm Km=\C2;4+664.01 \C3;COTA=\C2;1294.384msnm Km=\C2;4+803.35 \C3;COTA=\C2;1299.522msnm Km=\C2;4+909.90 \C3;COTA=\C2;1299.344msnm Km=\C2;5+010.00 \C3;COTA=\C2;1322.000msnm 1290.00 1290.00 1300.00 1300.00 1300.00 1300.00 1310.00 1320.00 1330.00 1340.00 1350.00 1360.00 1360.00 1370.00 1370.00 1400.00 1420.00 1440.00 1460.00 1470.00 1490.00 1500.00 1510.00 1520.00 1530.00 1540.00 1540.00 1550.00 1560.00 1560.00 1560.00 1560.00 1580.00 1590.00 1600.00 1620.00 1630.00 1640.00 1650.00 1680.00 1690.00 1700.00 1710.00 1730.00 1750.00 1770.00 1780.00 1790.00 1850.00 1860.00 1870.00 1880.00 1890.00 1900.00 ELEVACION ELEVACION LINEA DE CONDUCCION AGUA POTABLE 1312 1314 1316 1318 1320 1322 1324 1326 1328 1330 1332 1334 1336 1338 1340 1342 1344 1346 1348 1350 1352 1354 1356 1358 1360 1362 1364 1366 1368 1370 1372 1374 1376 1378 1312 1314 1316 1318 1320 1322 1324 1326 1328 1330 1332 1334 1336 1338 1340 1342 1344 1346 1348 1350 1352 1354 1356 1358 1360 1362 1364 1366 1368 1370 1372 1374 1376 1378 \c8339311;PROGRESIVA COTA DE TERRENO (msnm) COTA DE TUBERIA (msnm) \c42405;CORTE Y RELLENO PENDIENTE (%) DISTANCIA PARCIAL (m) DISTANCIA ACUMULADA (m) DIÁMETRO/MATERIAL/CLASE TIPO DE TERRENO \c8339311;5+000 \c8339311;5+020 \c8339311;5+040 \c8339311;5+060 \c8339311;5+080 \c8339311;5+100 \c8339311;5+120 \c8339311;5+140 \c8339311;5+160 \c8339311;5+180 \c8339311;5+200 \c8339311;5+220 \c8339311;5+240 \c8339311;5+260 \c8339311;5+280 \c8339311;5+300 \c8339311;5+311 1316.109 1325.862 1330.269 1333.040 1337.121 1341.202 1345.270 1348.949 1350.350 1354.075 1357.800 1361.808 1366.377 1370.656 1374.210 1373.863 \c42405; \c42405;1.296 \c42405;0.572 \c42405;0.154 \c42405;1.301 \c42405;1.238 \c42405;0.906 \c42405;0.338 \c42405;0.325 \c42405;0.998 \c42405;0.486 \c42405;0.258 \c42405;0.590 \c42405;0.631 \c42405;0.511 \c42405;0.430 \c42405; L=32.332 256.540‰ L=41.173 146.701‰ L=55.470 219.993‰ L=29.423 70.737‰ L=109.107 211.844‰ 33.406 S=-13.33‰ 19.205\Fromans.shx|c0;m 4.467\Fromans.shx|c0;m 7.757\Fromans.shx|c0;m 15.971\Fromans.shx|c0;m 20.854\Fromans.shx|c0;m 57.467\Fromans.shx|c0;m 20.261\Fromans.shx|c0;m 21.628\Fromans.shx|c0;m 42.536\Fromans.shx|c0;m 16.926\Fromans.shx|c0;m 26.375\Fromans.shx|c0;m 28.939\Fromans.shx|c0;m 10.326\Fromans.shx|c0;m 8.778\Fromans.shx|c0;m 17.677\Fromans.shx|c0;m 4991.744m 5010.949m 5015.416m 5023.173m 5039.144m 5059.998m 5117.465m 5137.726m 5159.354m 5201.890m 5218.817m 5245.192m 5274.131m 5284.456m 5293.235m Km=\C2;5+010.00 \C3;COTA=\C2;1322.000msnm Km=\C2;5+138.98 \C3;COTA=\C2;1348.538msnm Km=\C2;5+277.51 \C3;COTA=\C2;1373.733msnm Km=\C2;5+310.91 \C3;COTA=\C2;1373.287msnm Km=\C2;5+010.00 \C3;COTA=\C2;1322.000msnm Km=\C2;5+010.00 \C3;COTA=\C2;1322.000msnm Km=\C2;5+138.98 \C3;COTA=\C2;1348.538msnm Km=\C2;5+277.51 \C3;COTA=\C2;1373.733msnm Km=\C2;5+310.91 \C3;COTA=\C2;1373.287msnm 1324.565 1329.696 1332.886 1335.820 1339.963 1344.363 1348.610 1350.025 1353.077 1357.314 1361.550 1365.787 1370.024 1373.699 1373.433 1373.287 TERRENO NATURAL TUBERIA PVC DIAMETRO: 150 mm TUBO PVC d 150 mm \c4758291;TERRENO NORMAL

Language	Spanish
Drawing Type	Full Project
Category	Water Sewage & Electricity Infrastructure
