EAVE DETAIL

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

eave detail, water-repellent insulation, drainer strip, brushed nailing strip, classic tile, copper nail, edge support rail, hydraulic overflow of galvanized sheet, Front bracket square, slat for aeration, machimbre, fitted, classic tile

Raw text data extracted from CAD file:

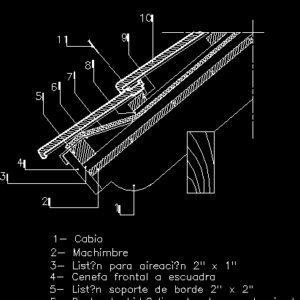

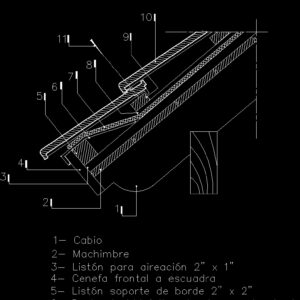

Detalle de alero 7- Aislación hidrófuga 8- Listón escurridor 1" x 1/2" 9- Listón clavador 2" x 1" cepillado 10- Teja Classic 11- Clavo de cobre 1 1/2" 5- Listón soporte de borde 2" x 2" 6- Desborde hidráulico de chapa galvanizada 4- Cenefa frontal a escuadra 3- Listón para aireación 2" x 1" 2- Machimbre 1- Cabio 1 2 3 4 7 6 5 10 11 8 9 TEJA CLASSIC
