Eaves With Gutter DWG Block for AutoCAD

Eaves With Gutter DWG Block for AutoCAD

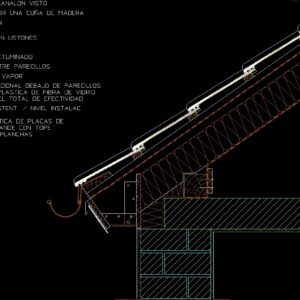

Inclined roof – Eaves with view gutter adjusted with wooden wedge

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

covering with ribbons, cabins, embossed felt, bearing sustent. installation level, eaves with gutter seen, adjusted by a wooden wedge, with goteron, Hermetic layer of plates, ggf irons, vapor barrier, insulation between pairs, additional insulation under paired, of fiberglass plastic foam, max of effectiveness total, large format with stop, thermal

Raw text data extracted from CAD file:

- CUBRICION CON LISTONES - CABIOS - FIELTRO EMBETUMINADO - COJINETE SUSTENT. / NIVEL INSTALAC. ALERO CON CANALON VISTO AJUSTADO POR UNA CUÑA DE MADERA CON GOTERON - CAPA HERMETICA DE PLACAS DE SOLIDO, GGF PLANCHAS - BARRERA DE VAPOR - AISLANTE ENTRE PARECILLOS - AISLANTE ADICIONAL DEBAJO DE PARECILLOS DE ESPUMA PLASTICA DE FIBRA DE VIDRIO MAX 20% DEL TOTAL DE EFECTIVIDAD FORMATO GRANDE CON TOPE TERMICAS

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Glass, Plastic, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, block, cover, dach, DWG, eaves, gutter, hangar, inclined, lagerschuppen, roof, shed, structure, terrasse, toit, View, wooden
