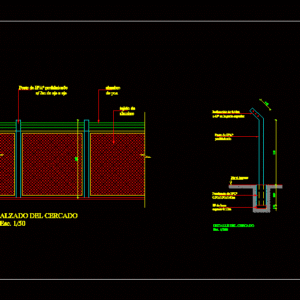

Fabric woven-wire fencing with precast concrete poles. I consists of an elevation and a detail sectional .

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

hºcº foundation, base hº, ground level, hºaº post, fencing detail, prefabricated, elevation of the fence, prefabricated hºaº post, wire, pua, fabric

Raw text data extracted from CAD file:

\A1;1.90 \A1;0.40 \A1;0.10 \A1;0.60 \A1;2.27 5 5 5 5 Fundación de HºCº 0.30x0.30x0.60m Hº de base espesor 0.10m Nivel terreno Poste de HºAº DETALLE DEL CERCADO Esc. 1/100 Inclinación de 0.40m prefabricado a 45º en la parte superior ALZADO DEL CERCADO Esc. 1/50 Poste de HºAº prefabricado c/ 2m de eje a eje alambre de pua tejido de alambre 5

Language	Spanish
Drawing Type	Section
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Concrete, Other
Measurement Units	Metric
