Fiberglass Pool 2D DWG Block for AutoCAD

Fiberglass Pool 2D DWG Block for AutoCAD

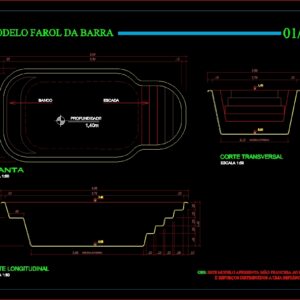

Drawing 2d – Ground and fiberglass pool view

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

internal measurement, internal measurement, internal measurement, internal measurement, bar headlight model, depth, ladder, Bank, scale, longitudinal cut, scale, cross section, scale, plant, obs: this model presents French hand along the rim distributed reinforcements an average distance of

Raw text data extracted from CAD file:

\A1;2.15 MEDIDA INTERNA \A1;.15 \A1;2.70 \A1;.15 \A1;3.00 \A1;.04 \A1;.25 \A1;.25 \A1;.25 \A1;.25 \A1;.40 \A1;1.40 \A1;.45 \A1;.15 \A1;5.70 \A1;.15 \A1;6.00 \A1;.04 \A1;.50 \A1;.90 \A1;1.40 \A1;3.60 MEDIDA INTERNA \A1;.25 \A1;.25 \A1;.25 \A1;.28 \A1;.25 \A1;.25 \A1;.25 \A1;.25 \A1;.40 \A1;.15 \A1;2.70 \A1;.15 \A1;.15 \A1;5.70 \A1;.15 \A1;6.00 \A1;3.00 \A1;.17 \A1;1.40 <> MEDIDA INTERNA 5 5 5 3.00 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 <> MEDIDA INTERNA 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 01/01 MODELO FAROL DA BARRA 1,40m PROFUNDIDADE ESCADA BANCO ESCALA 1:50 CORTE LONGITUDINAL ESCALA 1:50 CORTE TRANSVERSAL 5 0.00 1.40 ESCALA 1:50 PLANTA 0.00 1.40 OBS: ESTE MODELO APRESENTA MÃO FRANCESA AO LONGO DA BORDA E REFORÇOS DISTRIBUIDOS A UMA DISTÂNCIA MÉDIA DE 45cm

Language	Portuguese
Drawing Type	Block
Category	Pools & Swimming Pools
Additional Screenshots
File Type	dwg
Materials	Glass
Measurement Units
Footprint Area
Building Features	Pool
Tags	autocad, block, drawing, DWG, fiberglass, fiberglass pool, ground, piscina, piscine, POOL, schwimmbad, swimming pool, View
