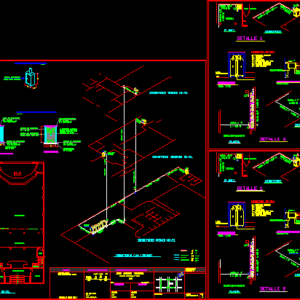

Final Gas DWG Full Project for AutoCAD
Project domiciliary installation of liquefied gas to church – Caters to all three levels to the respective devices
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
installed potency, F.s., Copper pipe type, P.c.t., P.i.t., total, Water heater, Reg. Double stage boom, Kg cylinders., various, kitchen, Installer, Esc: indicated, R.u.t., address, Rep. legal, burbot, Pedro a. sow, Serrano, drawing, Juan s walls, reference, Anibal pinto, draft, declaration, career, Caupolican, Location, R.u.t., address, Rep. legal, owner, burbot, Kw.w., Interior installation of g.l.p., Pentecostal evangelical church, Ignacio serrano nº, kind, plant, Isometric, Duct evacuation, Of gases, chap., scale, Detail type ventilation heater, 2nd level gas plant, Protection grille, Cylinder set, Kg., Mesh acma cm, Detail niche protection cylinders, Third level gas plant, scale, bedroom, balcony, balcony, bath, bedroom, Cane, balcony, bath, Gallery, Slab of horamigon, Tax cms, Rope, Brick masonry, balcony, bedroom, Cms, Concrete radier, stabilized, side view, Cms, Cms, Standard seg, scale, bedroom, Water heater, Comet hat, Main ship access, First level gas plant, scale, Parking access, parking lot, Cane, Pastoral office, Main hall, office, to be, Cane, Location, Isometrico first level, Copper pipe type, P.i.t., P.c.t., F.s., Rep. legal, address, R.u.t., Rep. legal, address, R.u.t., reference, Concrete radier, Tax cms, Brick masonry, front view, stabilized, Cms, Rope, Cms, various, Kg cylinders., Reg. Double stage boom, Slab of horamigon, House protection, Zinc alum mm., Ignacio serrano nº, Pentecostal evangelical church, Interior installation of g.l.p., kitchen, Water heater, total, owner, burbot, installed potency, Kw.w., Esc: indicated, Installer, burbot, Pedro a. sow, Isometric gas liquefied, drawing, Juan s walls, kind, career, Serrano, Anibal pinto, Caupolican, declaration, draft, Isometric second level, Cane, Cane, Detail, scale, Cane, Cane, Cane, Cane, Cane, scale, Pastoral office, Main ship access, office, Cane, Cane, Cane, Cane, Terrace sup. Not habitable, Cane, Cane, Cane, Housing access, Men’s bath, Cane, Ladies bath, main craft, bath, kitchen, Cane, Cane, Cane, cellar, Dining room nº, Cane, Men’s bath, Cane, kitchen, Ladies bath, kitchen, Cane, Dining room nº, Isometric third level, Gallery projection, main craft, bath, Gallery projection, main craft, New, Cane, Cane, Cane, kitchen, Cane, Men’s bath, Cane, Cane, Cane, balcony, Cane, New, Cane, kitchen, Cane, kitchen, Cane, Cane, Cane, detail, plant, Isometric, detail, Cane, detail, plant, Isometric, detail, plant, Isometric, Cane, Cane, Cane, Cane, parking lot, detail, plant, Isometric, Factor esc., Built-in slabs radier, stage, regulator, Protected underground b.p., Embedded in wall, Symbology, Stopcock, stage, regulator, descent, rise, Esc., plant, Steel frame cintac, Mm., Tubular profile, Door niches, scale, Profile thickness mm., profile, Mesh acma, Cms, hinge, Tee test with cap, cut, Esc., N.t., Overcoming., line, cylinder, valve cover, cylinder, Flexible connection, regulator, valve, manifold, nomenclature, installed potency, valve cover, plant, parking lot, Cane, Overcoming., Esc., cut, line, N.t., Cms, Mesh acma, Door niches, Isometric, Cane, detail, Profile thickness mm., Steel frame cintac, Cane, Cane, scale, profile, Tubular profile, Mm., various, Kg cylinders., Reg. Double stage boom, Copper pipe type, P.i.t., P.c.t., F.s., total, kitchen, Water heater, Cane, Cane, Cane, plant, Esc., detail, Cane, plant, kitchen, Cane, Cane, nomenclature, Tee test with cap, Isometric, manifold, valve, regulator, Flexible connection, cylinder, hinge, Men’s bath, Cane, Cane, detail, plant, balcony, Cane, Isometric, Isometric, Location, Anibal pinto, Ignacio serrano nº, Pentecostal evangelical church, Interior installation of g.l.p., Installer, Rep. legal, address, R.u.t., address, R.u.t., owner, burbot, Kw.w., burbot, reference, Esc: indicated, Caupolican, Pedro a. sow, Serrano, plant, detail, Cane, kitchen, Juan s walls, drawing, kind, declaration, draft, career, Cane, Isometric, Cane, New, plant, kitchen, Cane, detail, Cane
