Fire Alarm System typical Details with NOTIFIER Components

Comprehensive Fire Alarm System Component Detail Drawing

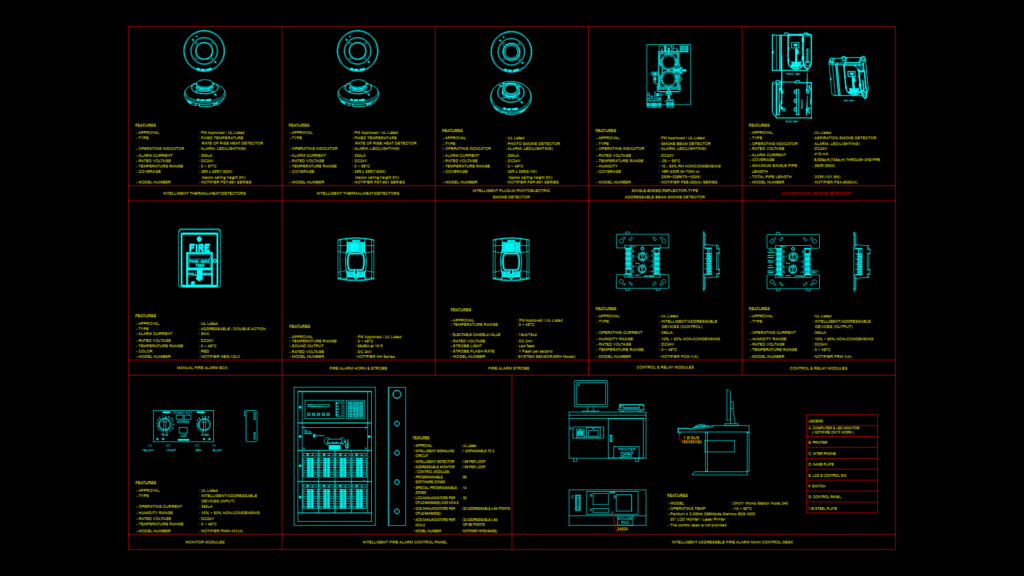

This technical drawing presents detailed specifications and wiring diagrams for a complete addressable fire alarm system using NOTIFIER brand components. The drawing is organized in a grid layout showing multiple detection and notification devices along with their technical specifications and connection details.

Detection Devices:
– Intelligent thermal heat detectors (FST-851 Series) with fixed temperature ratings for both 57°C and 88°C environments
– Intelligent photoelectric smoke detectors (FSP-851 Series) with 30ft x 30ft coverage area
– Addressable beam smoke detectors (FSB-200 Series) with coverage range of 16ft to 328ft
– Aspiration smoke detector (FSA-8000) covering up to 8,000 sq.ft through a single pipe

Notification and Control Components:
– Manual fire alarm boxes (NBG-12LX) – addressable/double action type
– Fire alarm horn and strobe devices with selectable candela values (15cd/75cd)
– Control and relay modules (FCM-1 and FRM-1) for system integration
– Monitor modules (FMM-101) for conventional device integration

System Control:
– Intelligent fire alarm control panel (NFS2-640) featuring:
* Expandable signaling circuits (1 to 2)
* Support for up to 159 intelligent detectors per loop
* 159 addressable monitor/control modules per loop
* 99 programmable software zones
* Integration with workstation (ONYX Works)

The drawing includes detailed wiring diagrams showing terminal connections and addressing configurations for the intelligent addressable devices, making it valuable for system designers and installers.
