Fire Hose Wall Cabinet DWG Block for AutoCAD

Fire Hose Wall Cabinet DWG Block for AutoCAD

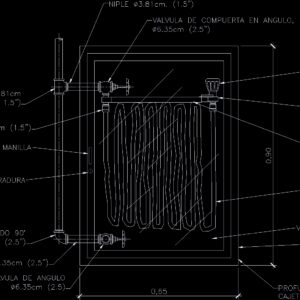

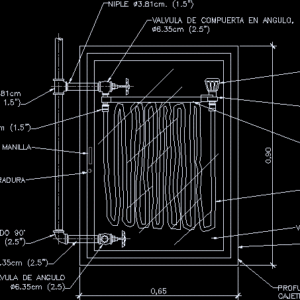

Embedded wall cabinet for hose against fire

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Depth of the box, glass, Hose length, Hose holder, Piton stand, Python jet blast, Cajetin painted red, Gate valve in, Nipple, tee, Coupling, bracelet, lock, elbow, Nipple, angle valve

Raw text data extracted from CAD file:

0,90 0,65 5 5 PROFUNDIDAD DEL CAJETIN 20cm VIDRIO MANGUERA DE LONGITUD DE 15 Ó 30 m SOPORTE DE MANGUERA SOPORTE DE PITON PITON DE DESCARGA C0N CHORRO DE NIEBLA CAJETIN SOBREPUESTO, PINTADO DE ROJO VALVULA DE COMPUERTA EN ANGULO, d6.35cm (2.5") NIPLE d3.81cm. (1.5") Tee d6.35cm x 6.35cm x 3.81cm (2.5" x 2.5" x 1.5") ACOPLE d3.81cm (1.5") MANILLA CERRADURA CODO 90° d6.35cm (2.5") NIPLE d6.35cm (2.5") VALVULA DE ANGULO d6.35cm (2.5)

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Glass
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, cabinet, DWG, einrichtungen, embedded, facilities, fire, gas, gesundheit, hose, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, wall, wasser bestimmung, water
